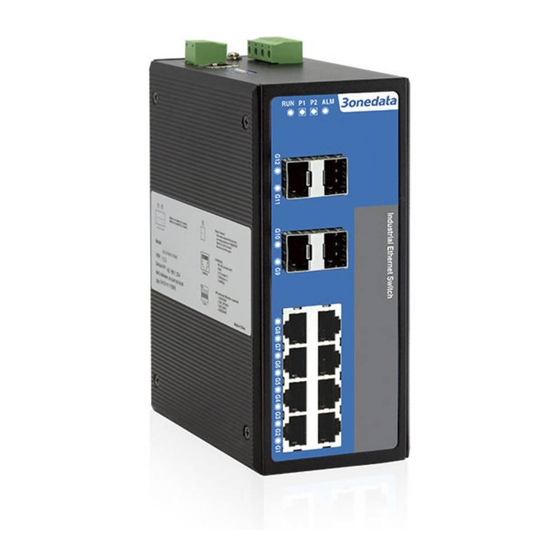

IES7112G-4GS
Managed Industrial Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
Summarize
IES7112G-4GS is an industrial grade, managed and redundancy
Ethernet switch which supports 8 Gigabit Ethernet Ports and 4
Gigabit SFP slots. It provided some kinds of advanced network
managed function, like as: SW-Ring redundancy ring network,
STP/RSTP/MSTP, VLAN, Trunking, 802.1X, SNMP, LLDP, SSH,
Quality of Service, Speed control, port mirroring, fault alarm and
firmware upgrade online. SW-Ring can bring your Ethernet to
intelligent redundancy. Standard Industry design, can satisfied
every requirement of the industry scene. All components used
industry grade, it takes products high reliability. It provided wide
voltage power supply input.
The switch accorded to CE, FCC standard and Industry grade 4
design requirement, support 2 channel DC power input and 1
channel relay alarm output, and -40 75
can meet all kinds of Industrial environment requirement and
provide the solution of the economy.
Packing list
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch
1
Documentation and software CD
User manual
1
DIN-Rail mounting kit
1
Warranty card
1
Feature
Support
IEEE802.3,
IEEE802.3u,
IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1W/D,
IEEE802.1s, IEEE802.3ad, IEEE802.1X
Support 8 10/100/1000Base-T(x) RJ45 Ethernet ports and 4
Gigabit SFP slot
- 1 -
SW-Ring ring network patent technology (Fault recovery
time<20ms)
Support STP/RSTP/MSTP to enhance network stability
Support IEEE802.1X, HTTPS, and SSH to enhance network
security
Support ACL function to enhance flexibility and security of
network management
Support static multicast, IGMP Snooping and GMRP
Support Port based VLAN and IEEE 802.1Q VLAN
Support QOS absolutely and opposite priority
Support bandwidth management and storm suppression
Support WEB, SNMP, LLDP and Telnet configuration
Support port mirror and port trunking
Support configuration file up and download
working temperature,
Support redundancy DC power supply(12 48VDC)
Support 1 channel relay alarm output
Industrial grade 4 design, -40-75
IP40 protection grade, DIN-Rail mounting

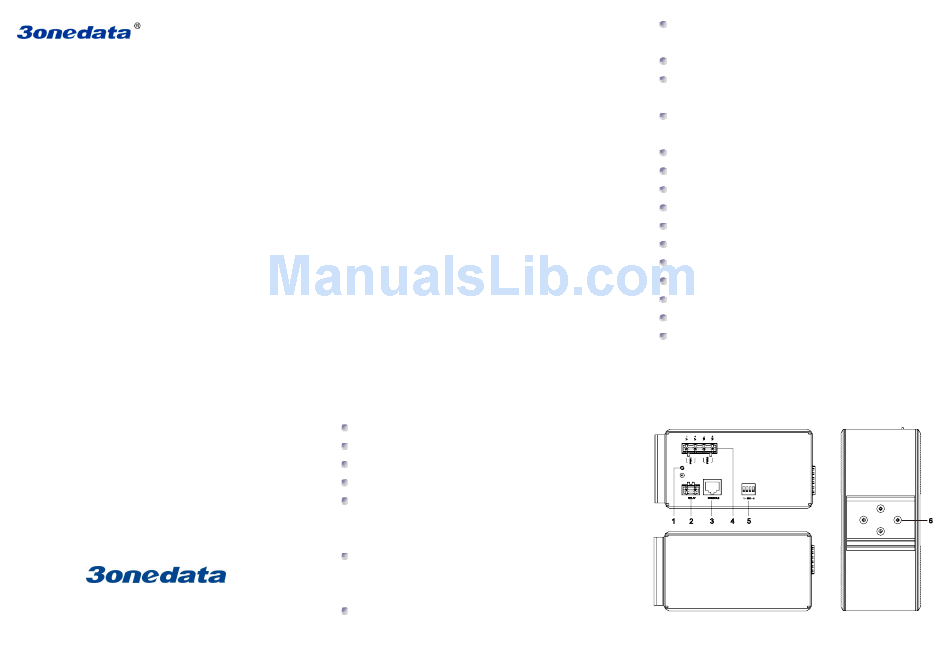

Panel layout
Vertical view and bottom view
1
IEEE802.3z/ab,
work temperature
Rear view
Advertisement
Table of Contents
Related Manuals for 3onedata IES7112G-4GS
Summary of Contents for 3onedata IES7112G-4GS
-
Page 1: User Manual
Summarize SW-Ring ring network patent technology (Fault recovery IES7112G-4GS is an industrial grade, managed and redundancy time<20ms) Ethernet switch which supports 8 Gigabit Ethernet Ports and 4 Support STP/RSTP/MSTP to enhance network stability Gigabit SFP slots. It provided some kinds of advanced network Support IEEE802.1X, HTTPS, and SSH to enhance network... - Page 2 system, use 1 pair terminal block connect the device at the same Front view Side view time. If one of the power systems broke, the device can work un-interruptible. Built-in overcorrect protection, Reverse connection protection. Voltage input range is 12 48VDC Relay access terminals in the top panel of the device.
- Page 3 8 Corresponding connections in MDI. 1→3, 2→6, 3→1, 4→7, LED indictor light on the front panel of product, the function of 5→8, 6→2, 7→4, 8→5, are used as cross wiring in the MDI-X each LED is described in the table as below. port of Converter and HUB.
- Page 4 5. Environment: working temperature: -40 75 groove in case of holding back the inlet and outlet holes. Transmit mode: store and forward Storage Temperature: -40 85 Cables should be banded and fixed when they are out of the System exchange bandwidth: 24G Relative humidity 5% 95% groove;...
- Page 5 Shell: IP40 protect grade, metal shell Installation: DIN-Rail mounts Weight: 950g Size (W×H×D): 70mm×160mm×130mm Industry Standard EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Certification...
