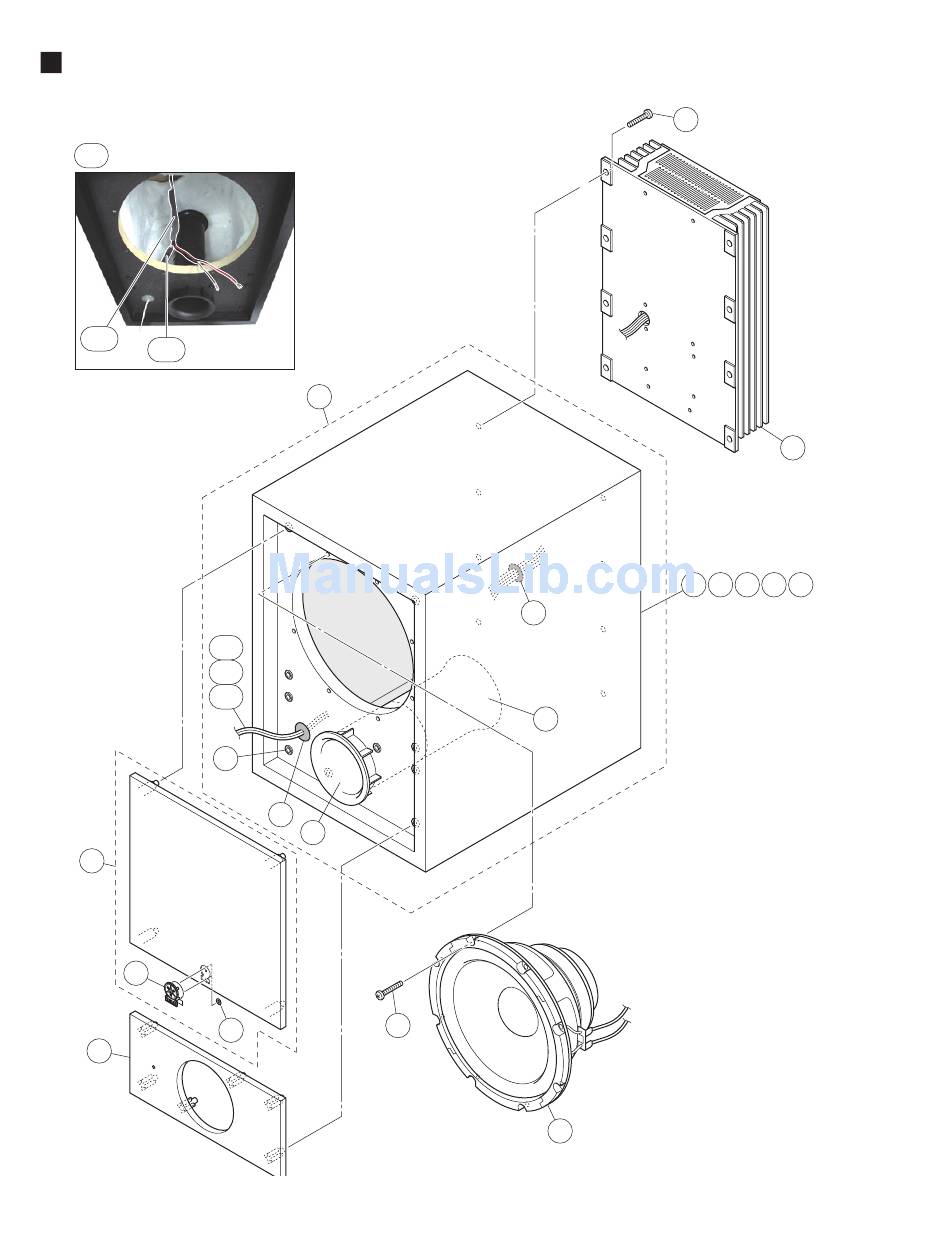

OVERALL ASSEMBLY (総組立)
E100
Cord assembly
E100a
E100b
20
20a
30

10
E100b
E100a
E100
E60
E90
E20
20b
E90
E30
50
40
70
60
AMP assembly :
See page 4.
(アンプAss' y)
E10 E40 E50 E70 E80
loading
