Summary of Contents for GIRET GMM-10

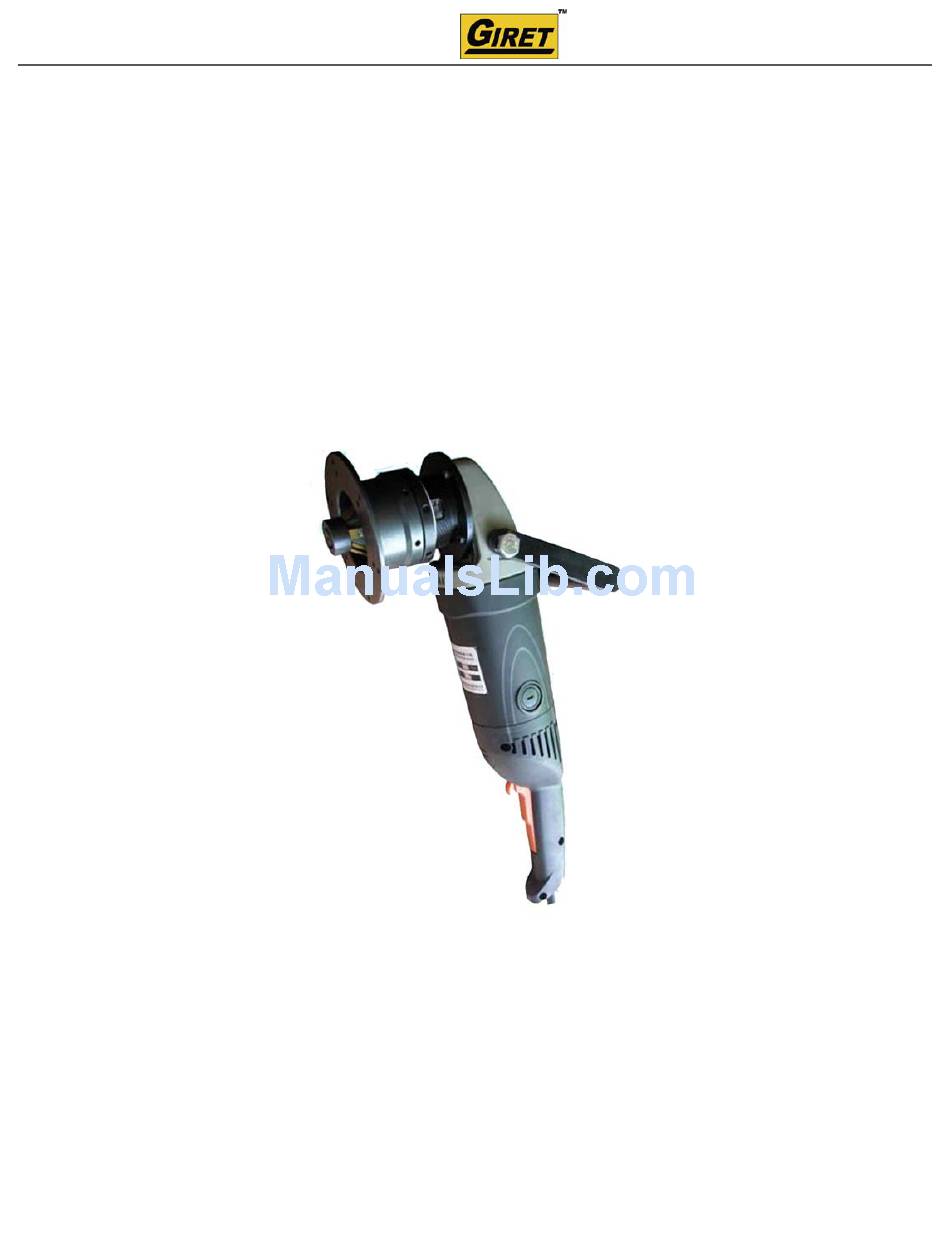

- Page 1 GMM- Welding & Cutting accessories Series Milling Machine GMM-10 type Operation Manual Read the manual carefully before use! Shanghai GIRET Machinery and Equipment Co., Ltd.
- Page 2 GMM- Welding & Cutting accessories Series Milling Machine Catalog Preface 1. Note 2. Parameters 2.1 Application Scope 2.2 Parameters 2.3 Cutting Parameters 2.4 Each Cutter Cutting Parameters 3. Operation Instruction 3.1 Electric Voltage Detection 3.2 Detection Cutter 3.3 Bevel Height Adjustment 3.4 Instruction 4.
- Page 3 Welding & Cutting accessories Series Milling Machine Preface Dear customer, we are appreciating that your support for our products (GIRET)! Read the manual carefully to avoid unnecessary losses. 1. Note Read the manual and notes carefully, follow the technical specification.
- Page 4 Note: GIRET keep the right of changing the technical parameters. Asbestos-contained materials can not be used on the machine. The data above the diagram based on the testing results of GMM-10 Beveling machine. All of above parameters are only for reference; we do not take any responsibility.
- Page 5 GMM- Welding & Cutting accessories Series Milling Machine 3. Operation Instruction 3.1 Electric Voltage Detection Check the Voltage whether the same with the nameplate! Danger 3.2 Cutter Detection Blunt cutter will damage and overload the machine! Check the cutter regularly to avoid excessive wearing! ...
- Page 6 GMM- Welding & Cutting accessories Series Milling Machine a． Adjust “Flywheel 1” to a suitable rotation speed; b． Press “Insurance 2”; c． Press “Power Switch 3” d． Push the machine form left to right while it 1.Flywheel is working; 2.Insurance ...
- Page 7 GMM- Welding & Cutting accessories Series Milling Machine 4.1 Conventional protective measures. Make sure the power turn off. Pull out the plugs form the socket. Can not operate the machine in those cases: Turn on the machine accidentally and unknown ...
- Page 8 GMM- Welding & Cutting accessories Series Milling Machine 5. Replace Cutter Blade 5.1 Diagram 1 Hexagonal wrench 2 Fix the screw 3 Indexable tool 4 The milling cutting head 5 The guide board rack surface 6 The back of guide board ...
-
Page 9: Maintenance And Repair
GMM- Welding & Cutting accessories Series Milling Machine 6. Speed Governing Instruction 6.1 Speed Setting Table Processing object Speed setting Arcing time factor Aluminum，Copper， approximately 5500–7500 rpm 60 % Plastics Material intensity≤400 Speed 3–5 approximately 4500–6500 rpm 40 % N/mm² Material intensity >... - Page 10 Has been installed on the cutting Cutting blade 45°used head Professional wrench Operation manual 9. After-sales Service Shanghai GIRET Machinery Equipment Co., Ltd. TEL: +86-21-33827303 FAX: +86-21-33827505 E-mail: giret@giret.com.cn ADD: No. 16, Lane 89, Shuangye Road, Pudong Area, P.R.2012 China...
