ProForm PFSB73930 User Manual

Proform magna user's manual

Hide thumbs

Table Of Contents

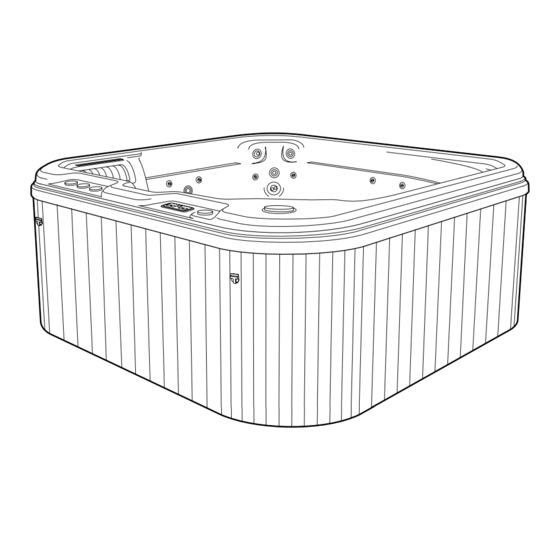

Model No. PFSB73930

Serial No.

The serial number is on a sign

behind the access panel. Write the

serial number in the space above.

Access

Panel

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The technicians on our customer

hot line will provide immediate

assistance, free of charge.

CUSTOMER HOT LINE:

1-877-897-7493

Mon.–Fri., 8 a.m.–5 p.m. CST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for ProForm PFSB73930

Page 1 Model No. PFSB73930 Serial No. The serial number is on a sign behind the access panel. Write the serial number in the space above. Access Panel QUESTIONS? If you have questions, or if there are missing parts, we will guar-...
Page 2: Table Of Contents
Whenever the spa is moved, the sign must also be moved and reposted near the spa. If the sign becomes lost or illegible, call our toll-free Customer Hot Line at 1-877-897-7493 to obtain a replacement sign. Post the sign as described above. PROFORM is a registered trademark of ICON Health & Fitness, Inc.
Page 3: Important Safety Instructions
Important Safety Instructions WARNING: To reduce the risk of drowning, electric shock, or serious injury, read the fol- lowing important precautions before using the hydrotherapy spa. READ AND FOLLOW ALL INSTRUCTIONS 1. It is the responsibility of the owner to ensure that all users of the hydrotherapy spa are adequately informed of all precautions.
Page 4 The effects of hyperthermia include failure to per- ceive heat; failure to recognize the need to exit the spa or hot tub; unawareness of impending hazard; fetal damage in pregnant women; physical inability to exit the spa or hot tub and unconsciousness resulting in danger of drowning.
Page 5: Save These Instructions
35. WARNING: The spa jets produce a stream of water with relatively high pressure. Prolonged exposure of a localized area of the body may cause bruises to the skin. 36. The included warning sign must be posted where all users of the hydrotherapy spa can see and read it.
Page 6: Before You Begin
Time (excluding holidays). To help us assist you, please mention the product model number and serial number when calling. The model number is PFSB73930. The serial number can be found on a decal on the access panel inside the spa (see the front cover of this manual).
Page 7: Choosing A Location For The Hydrotherapy Spa
Choosing a Location for the Hydrotherapy Spa There are many factors to consider when choosing a location to set up the hydrotherapy spa. These factors vary depending on whether you plan to use the spa inside or outside. We have listed several factors you may wish to consider as you decide where to set up the spa.
Page 8: Assembly
Assembly Before beginning assembly, carefully read the following information and instructions: • Place all parts in a cleared area and remove the packing materials from the spa shell. Do not dis- pose of the packing materials until assembly is completed and the spa is operating. •...
Page 9 3. Insert the pillow (47) into the lounge seat recepta- cle. The pillow can be rotated 180º to change between the high or low positions. 4. The hydrotherapy spa operates on a 240 volt power source and must be wired directly to a 240 volt Ground Fault Circuit Interrupter (GFCI) installed in your home.
Page 10: Using The Hydrotherapy Spa
Using the Hydrotherapy Spa The hydrotherapy spa is designed to seat seven adults. The spa holds approximately 375 gallons of water and offers a heating system (80°F to 104°F), a filtration system, and adjustable hydrotherapy jets. Follow the guidelines below to use and maintain the spa for your long-term enjoyment.
Page 11 8. After one minute, the current temperature of the water will be displayed. Push the temperature up or down button to set the temperature of the water. If the water temperature is below the set temperature, the heat indicator light will turn on to show that the water is now being heated.
Page 12: Spa Shell Diagram
Spa Shell Diagram A. The filter can be removed for cleaning or replace- ment (see CHECKING AND CLEANING THE FIL- TER on page 15). B. The underwater light can be used for night opera- tion (see USING THE CONTROLS on page 13). The spa includes both red and blue covers for the light.
Page 13: Using The Controls
Using the Controls Air Controls 1, 2, and 3 Blower Mode Button Button Display Pump Pump Light Button 1 Button 2 Button Air Control 1 determines the amount of air flowing through the hydrotherapy jets labeled 1 in the drawing above.
Page 14 The Light Button turns the underwater light on and off. The Temperature Buttons control the temperature set- ting of the water. The temperature setting can be from 80°F to 104°F. The water heats at about 6°F per hour with the cover on. Use a medical or other accurate thermometer to check the temperature of the water.
Page 15: Maintenance
Maintenance The hydrotherapy spa is designed to provide years of enjoyment. Please follow the guidelines below to properly maintain your spa. MAINTENANCE SCHEDULE Daily • Check the water level and refill the spa to the level shown in step 5 on page 9. •...
Page 16 WATER CHEMISTRY Maintaining the pH level of the water is very important to the operation of the spa. To maintain the proper pH level and to sanitize the spa, you can purchase a chemical starter kit from your local pool and spa sup- ply store.
Page 17 ATTACHING AND REMOVING THE ACCESS PANEL Turn off the spa power. To remove the indicated Access Panel (25), remove the four #10 x 2” Machine Screws (46) that secure the Access Panel to the spa. Carefully remove the Access Panel and set it aside. To replace the Access Panel, hold the Access Panel in place and secure it with the four #10 x 2”...
Page 18 DRAINING THE PUMPS After the hydrotherapy spa is drained, the jet pumps should also be drained if the spa will be stored for more than thirty days or if it may be exposed to freez- ing temperatures. Turn off the power to the spa.
Page 19: Troubleshooting
Troubleshooting Most problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-877-897-7493, Monday through Friday, 8 a.m. until 5 p.m. Central Time. 1.
Page 20 9. SYMPTOM: THE WATER LEVEL DROPS a. A clamp or seal inside the pump compartment may be loose. Check inside the pump compart- ment for excess water and watch the pump unit while it is operating to see if water drips from any of the plumbing.
Page 21 NOTES...
Page 22: Part List
Part List—Model No. PFSB73930 Key No. Qty. Description Console With Overlay 3-wire Power Cord Filter Cover Rubber Washer Filter Rubber Isolator Blue Light Cover Red Light Cover #10 x 1 1/2” Sheet Metal Screw 2-speed Pump* Spa Cover Dual Rotary Jet Face...
Page 23: Exploded Drawing
Exploded Drawing—Model No. PFSB73930 R0303A...
Page 24: Ordering Replacement Parts
• The MODEL NUMBER of the product (PFSB73930) • The NAME of the product (PROFORM MAGNA hydrotherapy spa) • The SERIAL NUMBER of the product (see the front cover of this manual) • The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on...

This manual is also suitable for:

Magna

ProForm PFSB73930 User Manual

Table of Contents

Related Manuals for ProForm PFSB73930

Summary of Contents for ProForm PFSB73930

This manual is also suitable for:

Table of Contents
