Summary of Contents for Sunquest Super V6000 VHO

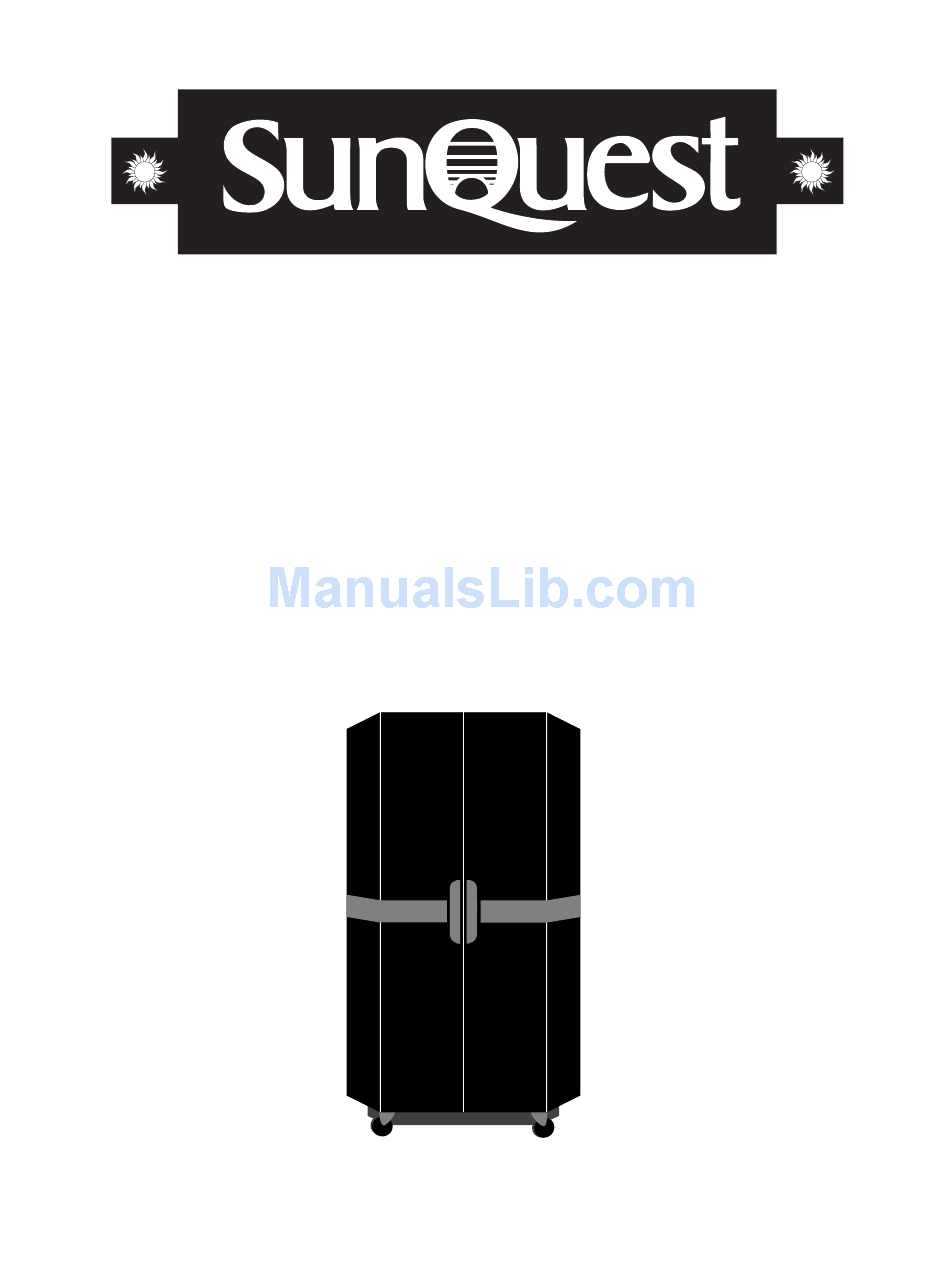

- Page 1 ® S S E M B L Y S E R U I D E M O D E L S U P E R V 6 0 0 0 V H O 21742A...
- Page 2 Warranty What Is Covered? SunQuest warrants your tanning unit to be free of structural defects in its material and workmanship, under normal use, for its lifetime. SunQuest will repair or replace, at their discretion, any defect to the structure which affects the performance of the unit.
- Page 3 elcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions. ontents Safety Information .
- Page 4 afety Information LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section 1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following: DANGER Ultraviolet radiation.
-
Page 5: Installation
nstallation Tools Required You’ll need the following tools to assemble your booth: #2 Phillips Screw Driver Knife (Utility or similar) Adjustable Wrench Pre-Installation Planning Before you begin to assemble your booth, you should observe the following pre- installation considerations. • Your booth operates from a 220V AC source. The unit must be hard- wired to a dedicated circuit capable of providing 60 amp service. -
Page 6: Assembly
Installation-Pre-Installation Planning • The SunQuest Super V6000 VHO must be installed in a room with a minimum ceiling height of eight (8) feet. Place your booth no closer than 6" from any wall. • Proper assembly of your booth requires three people. Plan to have a couple of helpers assist you. - Page 7 Installation-Assembly 2. Lower all six of the leveling posts (C) until the weight is almost completely removed from the casters (D). Check the front doors to see if the tops of the doors are level with each other when closed, it may be necessary to further adjust the lev- elers.
-
Page 8: Bypass Plug
Installation- Electrical Connections 5. Place the platform inside of the unit oriented so that the side without the air reg- ister is toward the front. Connect the plug from the plateform to the connection located underneath the corner of the booth (F). 6. -
Page 9: Remote Connections
Installation–Remote Connections Remote Connections Your booth incorporates advanced circuitry allowing it to connect and communicate with most remote control systems. If a remote system is to be used, the type of system you are using must first be determined. Warning: The remote connection is not designed to supply or accept high voltage, nor can it provide power to an external timer. - Page 10 Installation–Remote Connections Note: The by-pass plug provided with your booth will work wherever a T-Max terminator is ® called for in the series. The terminator provided by T-Max ® will not work as an bypass plug. Remote systems using a Control Relay Most modern remote systems control the booth by the use of a relay.
-
Page 11: Operation
peration Before You Tan Before using your booth, please note the following important precautions: • WARNING your booth is designed for individual use. Only one pair of protective goggles is provided. Always wear these or another approved pair of goggles. Regular sunglasses do not provide adequate protection from ultraviolet light. -
Page 12: Using Your Booth
Operation-Using Your Booth Using Your Booth When configured as a stand alone unit or when connected to a remote system using a control relay If your booth is connected to a ComputaTAN™ or T-Max Manager remote system, turn ® to Using Your Booth When connected to the ComputaTAN™ or T-Max ®... - Page 13 Operation-Using Your Booth Using Your Booth When connected to the ComputaTAN™ or T-Max Manager ® Step 1. Enter the booth and shut the door behind you. Center your body on the pedestal so that it will allow for even tanning. Step 2.
-
Page 14: Cleaning After Use
Clean and disinfect your tanning booth’s pedestal, handles, control console and wire grid after each use. Use a non-abrasive disinfectant cleaner. We recommend SunQuest disin- fectant. Spray a clean soft cloth with disinfectant and then clean all surfaces that the tan- ner may have come in contact with. -
Page 15: Care And Maintenance
800-1000 hours of effective tanning use. Lamps used longer than that begin to lose their effectiveness even though they will continue to light. Only the following lamp type has been certified for use in your SunQuest booth: Accelerator... -
Page 16: Troubleshooting
roubleshooting Problem/Solution Chart Problem Solution 1. Make sure the unit is connect to a power source. Lamps fail to light and timer display is blank 2. Check source of ac power. Reset circuit breaker or replace fuse. Timer display continues to 1.ComputaTAN™... - Page 17 Troubleshooting-Problems/Solution Chart Problem/Solution Chart Problem Solution One or more lamps fail to light 1.Check that lamp is installed correctly. 2.Switch unlit lamp with a lamp that lights, if the new lamp lights and the old lamps still does not, replace old lamp.
- Page 18 Troubleshooting-Problems/Solution Chart Problem/Solution Chart Problem Solution Face Tanner contactor is closed when it should be open, Timer display is indicating Er 7 have service technician check the contactor. Timer display is indicating Er 8 Face Tanner contactor is open when it should be closed, have service technician check the contactor and its wiring from the main timer box.
-
Page 19: Obtaining Service
6270 Corporate Drive Indianapolis, IN 46278-2900 Have the following information ready when calling ETS to order parts or service for your bed: Date Purchased Booth Serial Number Manufactured for SunQuest by: Spectrum Products, Inc. 6220 Churchman Bypass Indianapolis, Indiana 46203...
