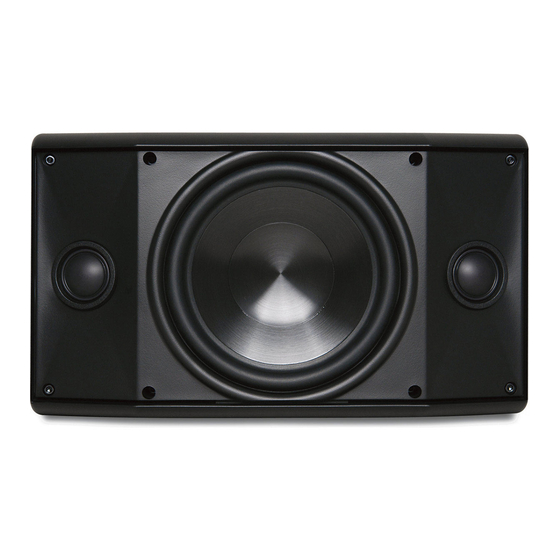

Proficient Audio Systems AW650blk Owner's Manual

INDOOR / OUTDOOR SPEAKERS
AW500TTblk • AW500TTwht • AW525blk • AW525wht
WIRING
Please use Diagram 1 below to familiarize yourself with
the rear panel of your outdoor speaker.
AW525blk / AW525wht / AW650blk / AW650wht: Attach
the speaker cable to the speaker cable terminals, observing
the proper polarity with your amplifier, + to + (red) and – to
– (black). Make sure to connect the right channel to the right
speaker and the left channel to the left speaker.

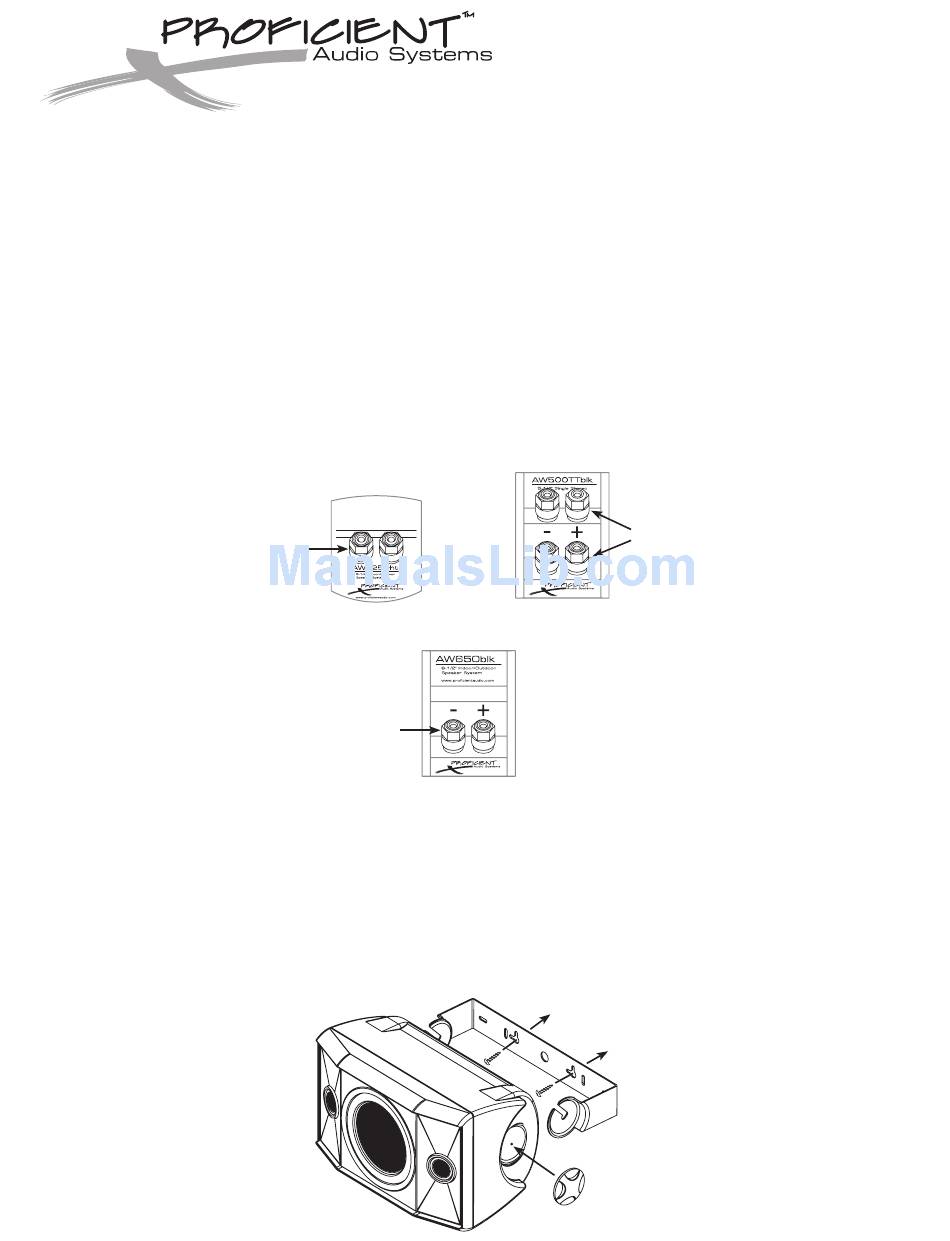

Diagram 1:
Speaker Cable Terminals
Speaker Cable Terminal
(Red = +, Black = –)
PLACEMENT
Placement Under Eaves and Outdoors
When mounting your speakers outdoors, the eaves of the
roof provide an ideal location. They reduce the exposure
of constant direct sunlight, salt spray, and precipitation. If
installing speakers on a boat, the wheelhouse provides
the best location for the same reasons. Following these
suggestions will help to ensure that your speakers will last
a lifetime.
Diagram 2:
Installing Mounting Bracket
OWNER'S MANUAL
AW650blk • AW650wht
AW525blk / AW525wht
Speaker Cable
Terminal
AW650blk / AW650wht
AW500TTblk / AW500TTwht: Attach the speaker cable,
observing the proper polarity with your amplifier, + to +
(red) and – to – (black). Either channel may be attached
to either terminal set, however, be sure that polarity (+
and –) is correct on each channel or the performance of
the speaker will be seriously affected as one channel will
cancel out the other.
Connect left channel to one
terminal set; connect right
channel to the other
AW500TTblk / AW500TTwht
Placement on a Wall or BookShelf
When placing your speakers on a wall or bookshelf,
optimal sound will be achieved if they are mounted at ear
level or slightly higher. The usual listening area should be
no closer to the speakers than the distance between the
speakers themselves.
Screw mounting bracket to wall
either horizontally or vertically
Secure speaker to mounting brack-
et by tightening knobs
