ProComSol, Ltd
HM-BT-BAT User Manual
HM-BT-BAT User Manual
Introduction
The HM-BT-BAT HART Modem, Bluetooth is designed to connect PC's to HART
networks via wireless Bluetooth technology. Once the HART side is connected, the
user's application software can then configure, monitor, and document HART based
instrumentation from up to 100ft (30m) away.
System Diagram
The complete system consists of Host PC with Bluetooth transmitter, HM-BT-BAT, and
HART network. The Host PC can be a Pocket PC PDA. For PC's without an integral
Bluetooth transmitter, there are many add-on transmitter modules available, such as the
Linksys USBBT100, USB Bluetooth Adapter.

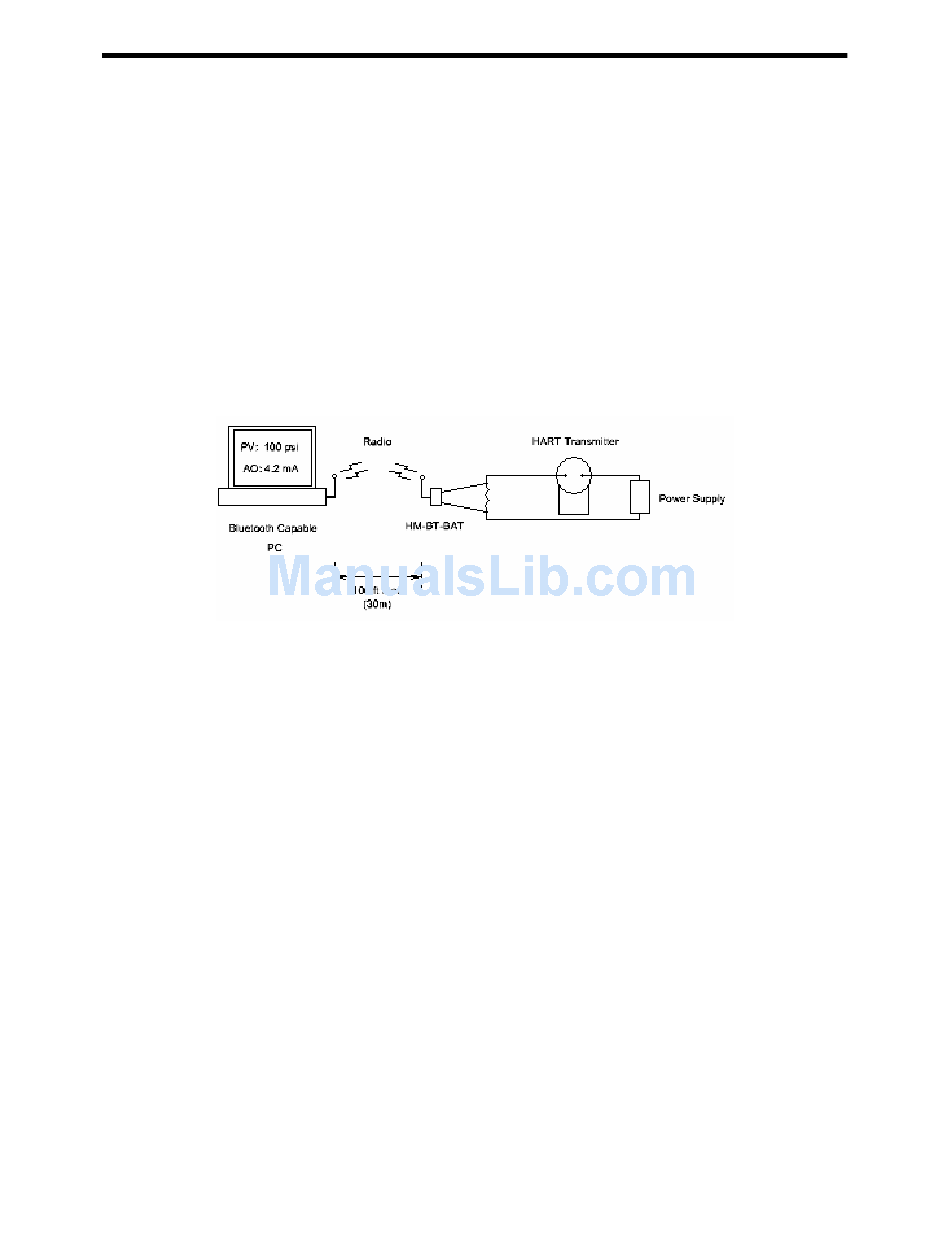

Figure 1. Bluetooth System Diagram
Bluetooth Range
Note that Class 1 Bluetooth transmitters, such as the USBBT100 have a range of 100'.
Class 2 transmitters, such as the HP IPAQ PDA, have a range of 25'. The HM-BT-BAT
works with both Class 1 and Class 2 transmitters, but operation is limited to the range of
the master transmitter.
Software Drivers
No additional software drivers need to be installed.
Battery
The HM-BT-BAT requires a standard 9V battery for operation. Remove the 4 enclosure
screws to access the battery. A fresh battery will provide 14 hours of continuous service.
Power Switch and LED
Slide the power switch toward the LED to turn on the unit. The LED will illuminate
when the unit is on. Slide the power switch away from the LED to turn the unit off. Turn
the unit off when not in use to conserve battery life.
NOTE: Make the HART connections before turning on the power to the modem. This
will improve initial communication reliability.
Page 1
MAN-1004 8/5/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProComSol HART HM-BT-BAT
Summary of Contents for ProComSol HART HM-BT-BAT
- Page 1 Slide the power switch away from the LED to turn the unit off. Turn the unit off when not in use to conserve battery life. NOTE: Make the HART connections before turning on the power to the modem. This will improve initial communication reliability.
- Page 2 When several modems are in the same area, the Discovery process needs to be repeated. The modems will appear as “HART Modem (1)”, “HART Modem (2)”, etc. It may require trial and error to determine which modem is connected to the desired HART network.
- Page 3 5. Select “Explore Bluetooth Device”. This will start a site survey to look for available Bluetooth devices 6. A device labeled “HART Modem” should be discovered. 7. Select the “HART Modem” icon. The available serial service will appear as “ZV- SPP”. 8. Highlight “ZV-SPP” and select “Next”. Then select “Finish”...
- Page 4 ProComSol, Ltd HART Connections The modem can be connected in one of two ways: across the loop load resistor (A – B) or across the HART transmitter terminals (C – D). See Figure 2. NOTE: Make the HART connections before turning on the power to the modem. This will improve initial communication reliability.
- Page 5 6. HM-BT-BAT HART connections across loop resistor or across transmitter terminals. 7. Battery is fresh. 8. Modem power switch is on and LED is illuminated. 9. Perform the “Discovery” procedure again and verify a connection can be made. 10. If using the Linksys USBBT100, verify the Linksys Bluetooth driver is installed and not the Windows Bluetooth driver.
- Page 6 ProComSol, Ltd Warranty The USB-BT-BAT is warranted for 1 year for materials and workmanship. Contact Support at ProComSol, Ltd if having any problems. An RMA (Return Material Authorization) number obtained from ProComSol, Ltd is required on all returned items. Notice of FCC Compliance This product contains a radio module that has been tested and found to comply with the FCC Part15 Rules.
