Operation
Operation
Manual
Manual
On/Off Rocker Switch
(left-side of unit)
Spatula
Control Panel
LIMITED WARRANTY
This product (with the exception of the water tube, part no. 625-197S) is
warranted to be free from defects in material and/or work- manship for a period
of two (2) years from date of original installation, not to exceed 30 months
from date of shipment from our factory. P.C. Boards and Heater Assemblies
are warranted for three (3) years from date of installation, not to exceed 42
months from date of shipment. Any component which proves to be faulty in
material and/or workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor. This warranty covers
on location service (i.e. trip charges and/or mileage). Travel mileage is limited
to 100 miles (200 kilometers) round trip (one trip warranty) from an authorized
service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime premi-
um will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
Steamer 625-502 revA

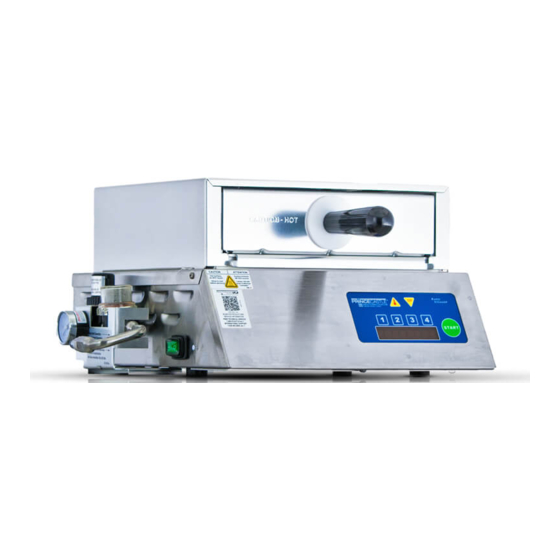

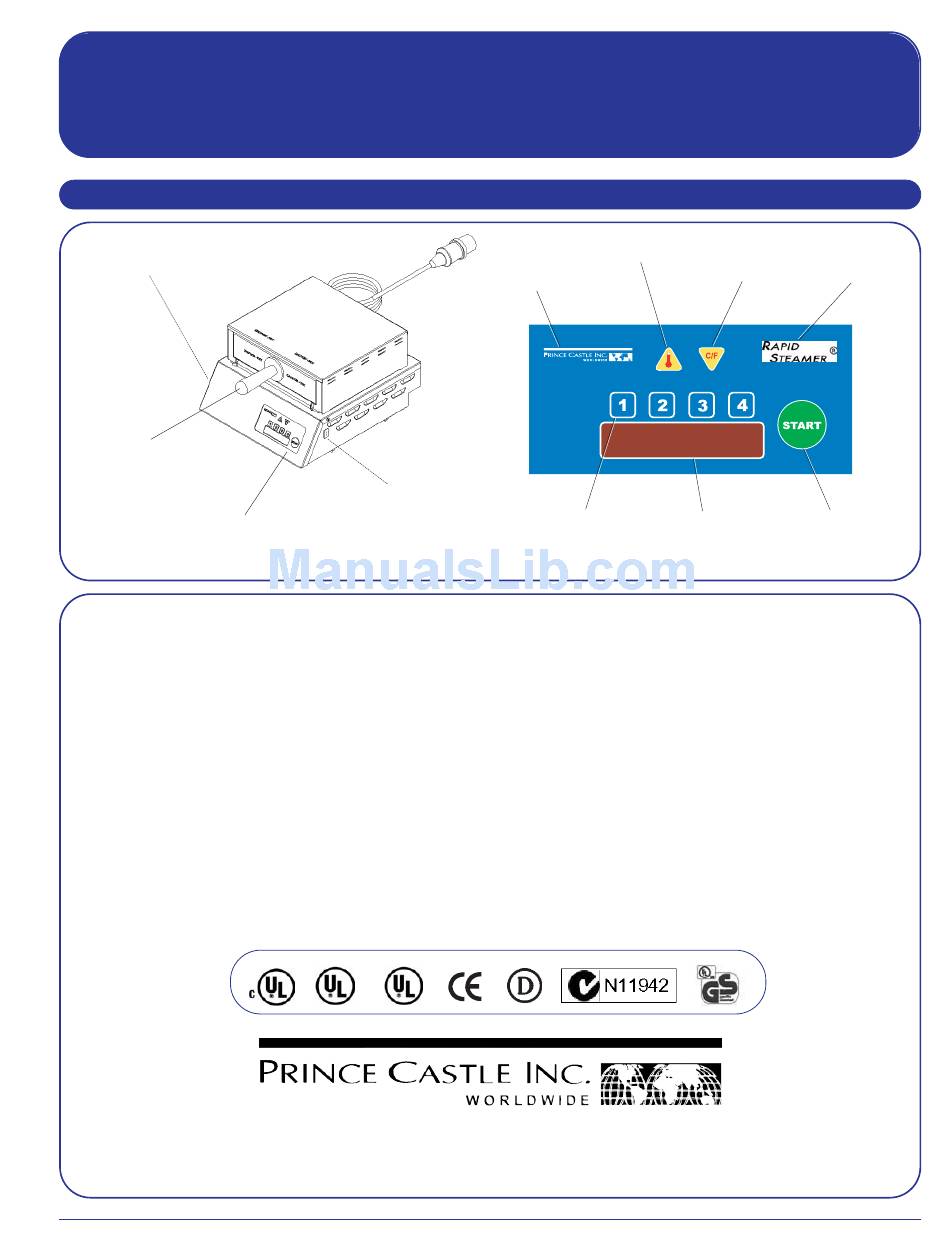

Product Identification
External Meter Plug Inlet
(for calibration)
SANITATION
355 East Kehoe Blvd. • Carol Stream, IL 60188
Phone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Temperature &
UP Arrow Button
Prince Castle
Logo Button
Product
LED Display
Buttons
(1 thru 4)
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Temperature Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
View Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Manual Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Programming Product Name & Water Cycle . . . . . . . . . . . . . . . . . . . . . . . .4
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Cleaning - Monthly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Exploded View and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Steamer
Steamer
625-A
625-A
Celsius/Fahrenheit &
DOWN Arrow Button
Steamer
Logo Button
Start Button
Printed in USA 0910 © 2003
Advertisement
Table of Contents
Summary of Contents for Prince Castle 625-A625-A
-
Page 1: Table Of Contents
This warranty is subject to the following exceptions/conditions: • Use of any non-genuine Prince Castle parts voids this warranty. • All labor shall be performed during regular work hours. Overtime premi- um will be charged to the buyer. -
Page 2: Safety Information
• notify the carrier within 24 hours of delivery • save carton and packaging materials for inspection purposes • contact your local dealer, or if purchased directly, the Prince Castle Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a replacement unit. -
Page 3: Temperature Adjustment
A manual reset is located on the back of the unit. Once the unit has cooled sufficiently, press the manual reset and restart the unit. NOTE: If the unit continues to shut-off due to overheating, contact your authorized Prince Castle Service Agency. Manual Reset Steamer... -
Page 4: Thru
PROD8 PROD12 – – – – Press and hold the Prince Castle LOGO button first, then press and hold the Steamer Logo button for 6 seconds. The display will show the product name with the left-most character display or decimal point flashing. -
Page 5: Error Messages
A. Press the UP or DOWN Arrow buttons to change the valve OFF time. B. Press the Steamer LOGO button to store the new valve OFF time. NOTE: Pressing the Product 3 button at any time exits the Program mode without storing the change. OFF 3.0 A. -
Page 6: Cleaning - Daily
WARNING Turn the unit off and unplug the power cord from the electrical recep- tacle. Proceed with caution, unit is still hot! CAUTION This unit is not watertight. Do not clean with a water jet/jet spray. Do not immerse the unit in water. Do not use abrasive materials such as scrapers, steel wool, etc. -
Page 7: Cleaning - Monthly
WARNING Turn the unit off and unplug the power cord from the electrical recep- tacle. Proceed with caution, unit is still hot! CAUTION This unit is not watertight. Do not clean with a water jet/jet spray. Do not immerse the unit in water. Do not use abrasive materials such as scrapers, steel wool, etc. -
Page 8: Exploded View And Parts List
Steamer 625-502revA Exploded View and Parts List Ref. Part No. 625-129S 78-233S 625-193S 625-205S 625-145S 625-130S 197-232S 66-045S 625-071S 88-497S 10 625-064S 11 625-085S 12 625-083S 13 625-077S 14 65-059S 15 625-154S 16 625-065S 17 625-082S 18 72-365S 86-255S 66-061S 18 72-379S 625-253S Steamer... - Page 10 Steamer 625-A Notes Printed in USA 0910 © 2003 Steamer 625-502revA...
- Page 11 Steamer 625-A Notes Printed in USA 0910 © 2003 Steamer 625-502revA...
- Page 12 Steamer 625-A Notes Printed in USA 0910 © 2003 Steamer 625-502revA...
