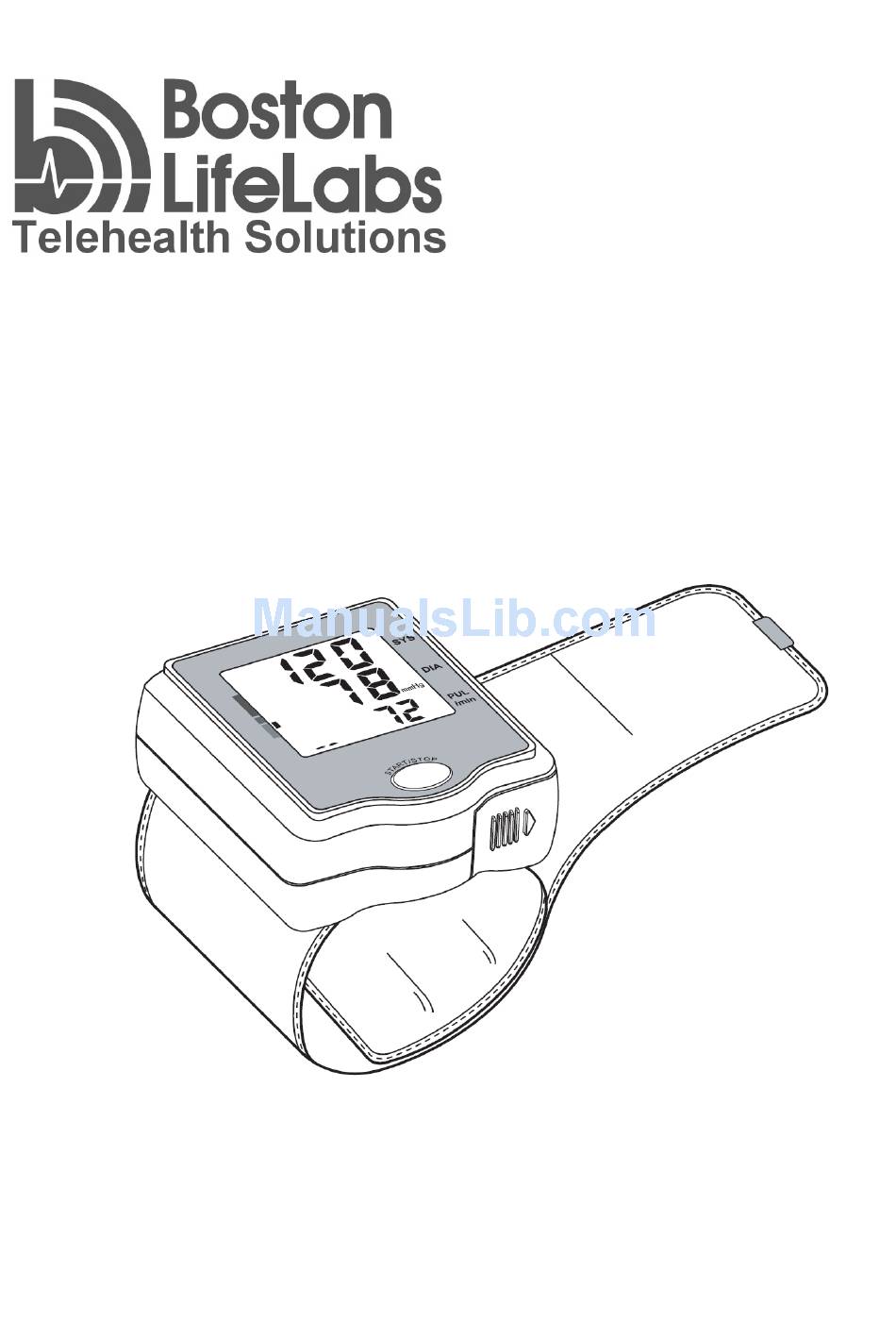

Page 1 Wireless Wrist Blood Pressure Monitor BPW2.4 Boston Life Labs LLC.
Page 2 Labs LLC. has the ultimate right to explain the Manual. No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent. Boston Life Labs LLC. reserves the right to improve and amend it at any time without prior notice.
Page 3 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Notes: The contents contained in this manual are subject to change without notice. Information furnished by our company is believed to be accurate and reliable. However, no responsibility is assumed by us for its use, or any infringements of patents or other rights of third parties that may result from its use.
Page 4 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Necessary maintenance must be performed only by qualified service technicians. Users are not permitted to maintain it by themselves. Cautions Explosive hazard—DO NOT use the equipment in environment with inflammable gas such as some ignitable anesthetic agents.
Page 5 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Table of Contents 1 OVERVIEW ............1 1.1 A ........... 1 PPEARANCE 1.2 F ............2 EATURES 1.3 N .......... 2 AME AND ODEL 1.4 A ......2 PPLICATIONS AND COPE 2 BATTERY INSTALLATION ......
Page 6 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 9.1 B ........15 LOOD IRCULATION 9.2 C ..15 LASSIFICATION OF LOOD RESSURE...
Page 7: Overview
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 1 Overview 1.1 Appearance Display Start/Stop Button Wrist Cuff Body & Cuff Systolic Blood Pressure Inflation/Deflation Diastolic Blood Symbol or Pressure WHO Indication Heartbeat Unit Indication Symbol Pulse Display Wireless Low Battery Symbol Symbol Display...
Page 8: F Eatures
1.3 Name and Model Name: Wireless Wrist Blood Pressure Monitor Model: BPW2.4 1.4 Applications and Scope BPW2.4 Wireless Wrist Blood Pressure Monitor is intended to be used by adults at home or medical center to measure Blood Pressure Systolic, Diastolic and pulse rate.
Page 9: Battery Installation
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 2 Battery Installation Figure 3 Battery Installation 1. Refer to Figure 3, insert two AAA size batteries into the battery compartment properly in the right direction. 2. Replace the cover. Please take care when you insert the batteries, or the improper insertion may make the device not work.
Page 10: Wireless Function
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Never leave any low battery in the battery compartment since they may leak and cause damage to the unit. 3 Wireless Function 3.1 Enable/Disable Bluetooth The state of the Bluetooth will appear after longtime pressing the Start/Stop button.
Page 11: D Ata M Anagement
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 3.2 Data Management When Bluetooth is ON and after a measurement result is made, the Bluetooth part will be powered on and try to connect to the peer device if there is any, otherwise it will enter into discoverable/connectable mode, waiting the SPP connection from any peer device for about 60 seconds.
Page 12: Operation
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 4 Operation 1. Remove all clothes from your arm allowing the cuff to fit directly on the skin. 2. Wrap the cuff tightly around your wrist by using the Velcro strip. 3.
Page 13 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor elbow and fingers. Then turn on the unit to start the measure. Do not touch Fingers’ pose: Not good Good Not good...
Page 14: Make A Measurement
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Wrist’ pose: Not good Good Not good 5 Make a Measurement 1. Press the Start/Stop button. All Display symbols appear on the screen. The cuff starts to inflate automatically. All symbols Deflating Start to inflate display...
Page 15 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Heartbeat Continue To a fit Start to inflate Inflating appears Inflating pressure 3. The blood pressure and pulse rate are displayed when the measurement completed. The cuff is deflated automatically. If the Bluetooth is enabled, the device automatically tries to send the measurement results.
Page 16: Exceptional Situations
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 6 Exceptional Situations Error Indicators: The following symbol will appear on the display when measuring abnormal. Symbol Cause Correction The course of Wrap cuff inflation correctly and tightly. appears error. Inflate over again after ensuring.
Page 17 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Error Indicators: Problem Causes and Solutions Replace all of the worn No power. batteries with two new ones. No display appears Check the battery installation display for proper placement of the screen.
Page 18: Technical Specifications
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 7 Technical Specifications A. Display mode：LCD Display B. Power supply requirement: 1.5V (AAA size) alkaline battery × 2 Supply voltage: 3VDC Operating current: ≤60mA C. Environment requirement Operating Temperature: 10°C ~40°C (50~104°F) Operating Humidity: 15%~90% (Noncondensing)
Page 19: Repair And Maintenance
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 8 Repair and Maintenance 8.1 Maintenance In order to ensure the long service life of the device, please pay attention to the use of maintenance. A. Please change the batteries when the low-voltage indicator lightens.
Page 20: C Leaning And D Isinfecting I Nstruction
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor High-pressure sterilization cannot be used on the device. Do not immerse the device in liquid. It is recommended that the device should be kept in a dry environment. Humidity may reduce the life of the device, or even damage it.
Page 21: Common Knowledge
User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor 9 Common Knowledge 9.1 Blood Circulation The blood pressure is responsible for supplying the body with oxygen. Blood pressure is the pressure exerted on the arteries. The systolic blood pressure (higher pressure or top value) represents the blood pressure produced by contraction of the heart muscle.
Page 22 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Note: When a person’s systolic and diastolic pressures fall into different categories, the higher category should apply. -16-...
Page 23 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Appendix Key of Symbols Symbol Description With Type B applied part Warning ─ See User Manual Blood Pressure Systolic Blood Pressure Diastolic PUL/min Pulse rate (beats per minute) Low battery voltage Serial number Separate collection for this device.
Page 24 User Manual for PBW2.4 Wireless Wrist Blood Pressure Monitor Boston Life Labs LLC. Address: Cambridge Innovation Center One Broadway 14th Cambridge, MA 02142, U.S.A. Tel: +1 (617) 440-4271 Email: info@bostonlifelabs.com Website: www.bostonlifelabs.com -18-...
Page 25 FCC ID: YTK-BPW2.4 IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation.
