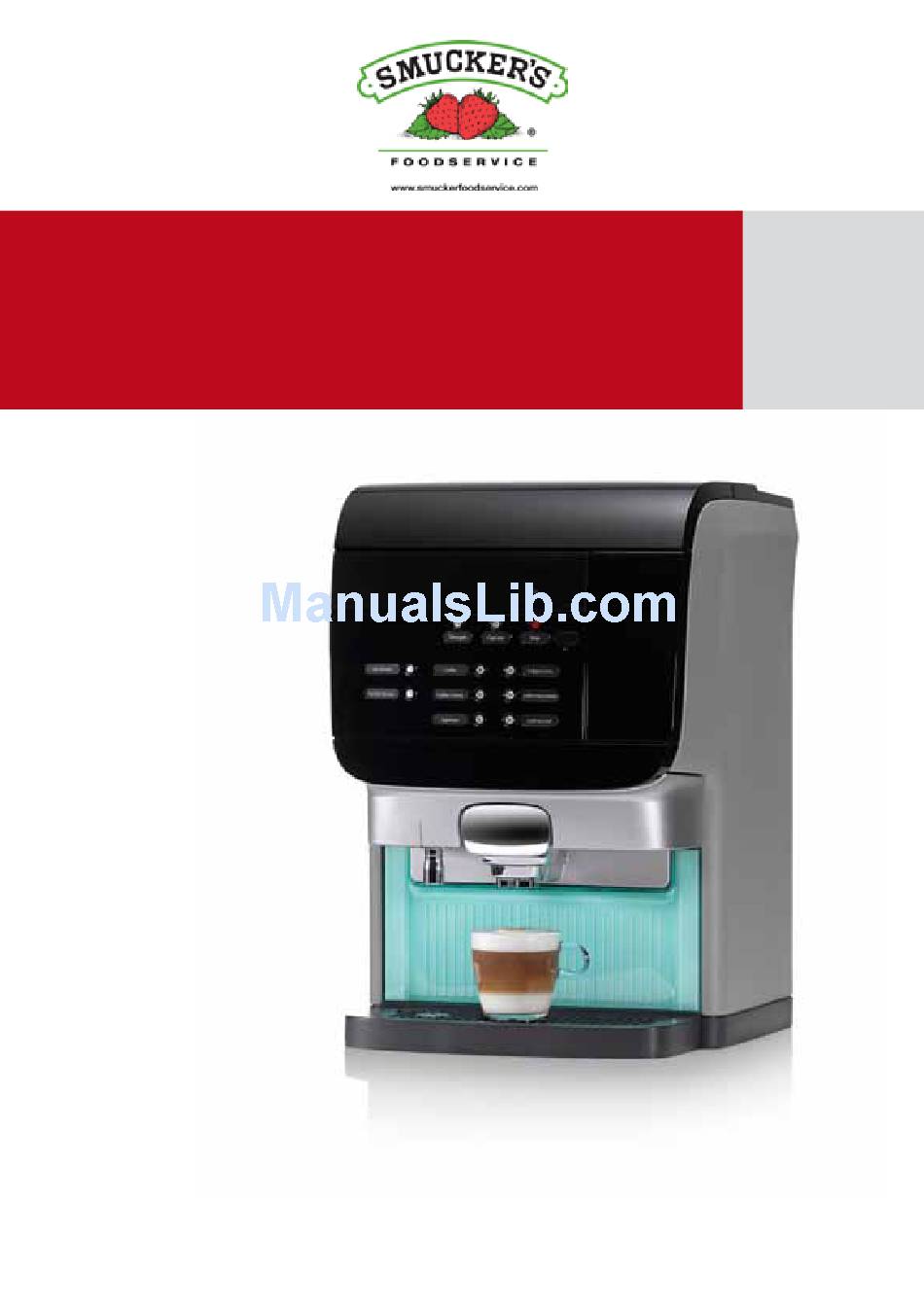

- Page 1 EXCELLENCE COMPACT User Manual Date: 2016-03-29...
- Page 2 Content 1- Safety instructions ............................3 2- Technical specifications ..........................6 2.1 Specifications ..................................... 6 2.2 Dimensions ......................................7 3- Part overview description ...........................8 3.1 Front view ......................................8 3.2 Interior view ....................................... 8 3.3 Button functions ....................................9 3.4 Display overview ....................................9 4- Dispenser start up &...
-
Page 3: Safety Instructions
1- Safety instructions 1.1 Introduction The following general safety precautions apply to the operation and maintenance of the machine and must always be observed. Non-compliance with these instructions or any other safety precautions mentioned in this manual could impair the machine’s safety features and lead to potentially dangerous situations and machine damage for which the manufacturer cannot be held responsible. - Page 4 1- Safety instruction experience of the appliance; in particular as far as safety and hygiene are concerned. • This dispenser is not suitable for installation where a pressure washer may be used. • This dispenser must not be cleaned by a pressure washer. • This dispenser is not suitable for outdoor use.
- Page 5 1- Safety instructions 1.4 FCC and IC information FCC Warning: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Technical Specifications
2- Technical specifications 2.1 Specifications Facts Description Weight 48.5 lbs. (Empty) - 52.9 lbs. (Operational) Volume: Factory setting = 4.2 fl. oz. adjustable ±10% Factory Setting = 30.4 fl oz adjustable ±10% Dispensing time: 110 seconds ±10% Max height: 6.3 in. Interval between pots 160 seconds (120 V) Power supply... -
Page 7: Dimensions
2- Technical specifications 2.2 Dimensions Position Description Inches Dispenser height Dispenser height 21.5 Dispenser width Dispenser depth Dispenser height with door open 29.3 Dispenser depth with door open 19.7 Clearance with drip tray in place Clearance with drip tray removed Distance from top of dispenser to front of open door User manual... -
Page 8: Part Overview Description
3- Part overview description 3.1 Front view Air ventilation Display Removable ventilation Drink buttons cover Air ventilation Hot water outlet Drink outlets Cup tray Drip tray Main power socket Water connection 3/4” BSP 3.2 Interior view Standby / Lock dispenser button Dispenser door Cooling compartment Ingredient canister... -
Page 9: Button Functions
3- Part overview description Note: Some options are not available in all markets. 3.3 Button functions Strength button Pre-selection buttons STOP (Back) button USB key port Strength Cupsize Stop (for service personal) Hot Water Operator Mode: (up) Cold Water Operator Mode: (down) Mild Coffee Operator Mode: (enter) 3.4 Display overview... -
Page 10: Dispenser Start Up & Storage
4- Dispenser start up & storage 4.1 Dispenser start-up • Place the machine on a flat horizontal surface designed to support the operational weight of the machine. • Connect the water inlet hose (A to A), and then open the water tap/filter (B to B). Check for leaks. • Connect the power cord (C to C), and insert the power plug in the wall socket (D to D), the machine will start automatically, fill up and heat the boiler, and begin to cool the cooling compartment. -
Page 11: Ingredient Pack Handling
5- Ingredient pack handling Note: • Always observe basic and • Wash hands first, shake pack personal hygiene, wash at least 10 times, remove hands before handling plastic film. ingredient packs. • Use only food-grade cleaning agents for the drink dispenser. Clean the dispenser’s exterior parts • Pull perforated strip back with a soft, clean, damp... -
Page 12: Daily Operation
6- Daily operation 6.1 Dispensing a cup of coffee or hot water • Place a cup on the drip tray under the middle outlet for a coffee (A) or under the left outlet for hot water (B). • Press the desired drink button. Warning: The drinks dispensed are hot! Avoid scalding! Keep hands and other body parts away from the... -
Page 13: Drink Delivery With Pre-Selections
6- Daily operation 6.3 Drink delivery with pre-selections (some options not available in all markets) Your dispenser supports pre-selection options. The service technician may activate pre-selection options during installation. When the pre-selection button is pressed, the following pre-selections can be activated. • Strength (mild, regular or strong drinks) • Volume (small, regular or large drinks) • Add extra sugar (3 steps) -
Page 14: Ingredient Pack Replacement
6- Daily operation 6.4 Ingredient pack replacement The display shows an icon when an ingredient pack is empty on either side (in the image shown the left pack is empty). Follow the instructions below to replace a product pack. Caution: Never use a frozen or damaged product pack. -
Page 15: Cleaning
7- Cleaning 7.1 Navigation buttons In operator and cleaning mode, 4 buttons are used to enter the cleaning mode and navigate the menus. Stop = BACK Strength Cupsize Stop Drink button top right = UP Hot Water Drink button middle right = DOWN Cold Water Mild Coffee Drink button bottom right = ENTER... -
Page 16: Flushing
7- Cleaning 7.4 Flushing Note: You can flush the dispenser at any time by using the procedure described below. A+B: 1. Press and hold STOP (A) and ENTER (B) buttons for 2-3 seconds to enter the cleaning mode (See Fig.1). 2. -
Page 17: Cleaning The Doser Openings
7- Cleaning 7.5 Cleaning the doser openings 1. Press and hold STOP (A) and ENTER (B) buttons for 2-3 seconds to enter the cleaning mode (See Fig.1). A+B: 2. The display will show FLUSHING, press UP or DOWN until the display shows CLEANING, then press ENTER to continue. -
Page 18: Disassembling The Mixing System
7- Cleaning 4. The display will now show: REINSTALL WJM SYSTEM, slide the mixing tray into its original position (there will be two audible beeps when it is installed correctly), connect the outlet tube, and close the fluid treatment panel (there will be two more audible beeps).
