TRBOnet Swift DT500
World HQ
US Office
Neocom Software
Neocom Software
8th Line 29, Vasilyevsky Island
15200 Jog Road, Suite 202
St. Petersburg, 199004, Russia
Delray Beach, FL 33446, USA
User Guide
Internet
Email: info@trbonet.com
WWW.TRBONET.COM
Telephone
EMEA: +44 203 608 0598
Americas: +1 872 222 8726
APAC: +61 28 6078325
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for TRBOnet Swift DT500

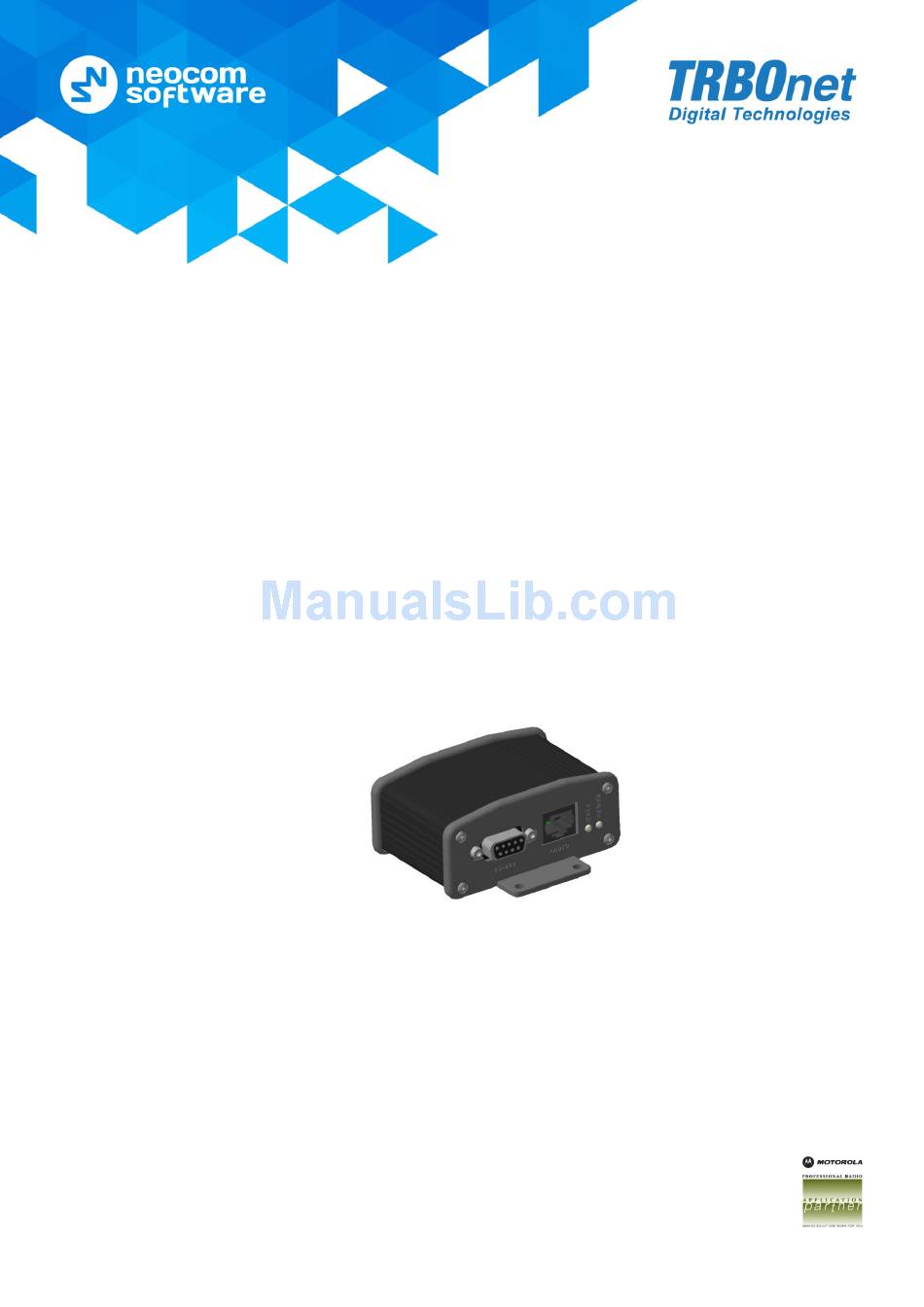

- Page 1 TRBOnet Swift DT500 User Guide World HQ US Office Internet Telephone Neocom Software Neocom Software EMEA: +44 203 608 0598 8th Line 29, Vasilyevsky Island 15200 Jog Road, Suite 202 Email: info@trbonet.com Americas: +1 872 222 8726 St. Petersburg, 199004, Russia Delray Beach, FL 33446, USA WWW.TRBONET.COM...
- Page 2 This document is for informational purposes only. Neocom software, Ltd offers no warranties, express or implied, in this document. Neocom and the Neocom logo, TRBOnet and the TRBOnet logo are either registered trademarks or trademarks of Neocom software, Ltd. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC.
- Page 3 Setup................................... 11 Installing Software ........................... 11 Installing a Driver ..........................11 Updating Firmware .......................... 12 Activating Features .......................... 13 Loading Configuration ........................15 Demo Mode ..............................17 Using Demo Mode with Activated Features ................17 TRBOnet Swift DT500 – User Guide...
-
Page 4: Introduction
About TRBOnet Swift TRBOnet Swift is a family of hardware products by Neocom Software, Ltd designed for use in MOTOTRBO radio networks. The TRBOnet Swift family hardware is presented by RoIP gateways A001/002 and A200, option boards ST001 and ST002, the DT500 data transfer module. -
Page 5: About Swift Dt500
About Swift DT500 TRBOnet Swift DT500 is an external programmable controller connectable to a MOTOTRBO digital two-way radio. Advantages • Small size and weight • High-performance processor • Built-in memory (8 Mb) • Interfaces that allow various connections: 7 VIO contacts (active level GND, up to 200 mA per contact) ... -
Page 6: Licensing
MOTOTRBO radio. Licensing Swift Event Logic features are provided on terms of commercial licensing. The following licenses are available for purchase for Swift DT500: Table 1: Licenses available for Swift DT500 License Description... -
Page 7: Panels
2. RADIO: The RJ45 connector for connecting a radio or a computer. 3. DATA: The data receive/transmit indication. 4. POWER: The power indication. REAR PANEL 1. I/O: The contact group connector for VIO input/output. 2. RS-485: The contact group connector for connecting external hardware. TRBOnet Swift DT500 – User Guide... -
Page 8: Connectors
About Swift DT500 Connectors Table 2: Connector pinouts RS-232 connector RADIO connector Not used Ground (GND) Received Data (RXD) USB OTG Transmit Data (TXD) Ground (GND) Not used USB Data + Ground (GND) USB Data - Not used USB VBUS... -
Page 9: Glossary
Global Positioning System Input/output Internet Protocol Report A dataset that Swift DT500 creates and sends to TRBOnet Server on the radio channel. A report typically includes GNSS data from the radio and/or data from VIO contacts. Swift Event A unified programmable environment that enables flexible configuration... -
Page 10: Connections
This section describes how to connect Swift DT500 to external devices. Precautions IMPORTANT: To connect Swift DT500 to a radio or a computer, use the cables specially designed for Swift DT500 by Neocom Software, Ltd. Use of any other cables not intended for Swift DT500 may cause damage to Swift DT500 and to the hardware connected using a non-compliant cable. - Page 11 Figure 4: Connecting an output VIO contact for handling the load of greater than 200 mA To handle the load voltage greater than 12V, additional relays connected to the source of 12V shall be used. TRBOnet Swift DT500 – User Guide...
-
Page 12: Connecting A Radio
Figure 5: Connecting an output VIO contact for handling the load voltage of greater than 12V Connecting a Radio You can connect Swift DT500 to a MOTOTRBO digital two-way mobile radio for IP or non-IP communication. Non-IP communication with a peripheral device requires preliminary setup on the radio. - Page 13 Figure 7: Pinout diagram of the radio cable for IP communication Note: Connection to a radio for IP communication may require special firmware loaded to Swift DT500 and a service cable without the jumper between contacts 5 and 8. 4. Power on the radio.
-
Page 14: Setup
Radio. radio. Power on the radio. Installing Software To load a configuration and activate the licensed features on your Swift DT500, Install the following software on your computer: • TRBOnet Swift CPS • TRBOnet Swift License Manager The distribution packages of the required software are available for download at www.trbonet.com. -
Page 15: Updating Firmware
Updating Firmware The firmware version loaded to your Swift DT500 may require an update. The Swift CPS software provides the latest firmware version for Swift DT500. Note: Firmware update clears configuration from device memory. We recommend that you save the current configuration to a file before updating firmware on your device. -
Page 16: Activating Features
To activate purchased features: 1. Connect Swift DT500 to a USB port of a computer. The computer must have access to the Internet during the activation of features. 2. Launch the Swift License Manager application on your computer. If you need... - Page 17 To verify the activated features, do any of the following: • In the Swift License Manager application, select the Look products on a device option and click Next. Click Swift DT500 and view the activated features in the tab with the device information.
-
Page 18: Loading Configuration
Figure 11: Verifying the license information on Swift DT500 Loading Configuration To use Swift Event Logic, a brand new Swift DT500 needs to be configured. A configuration defines all events monitored on a device, conditions evaluated for a triggered event, and actions executed for a triggered event. - Page 19 The configuration from the opened tab is loaded to your Swift DT500. 5. To verify the result, select Read in the Device menu. If necessary, select the just configured Swift DT500 and confirm the choice. The current configuration of your Swift DT500 appears in the DT500 - COM3 tab. 4.5.2...
-
Page 20: Demo Mode
Activating Features. Using Demo Mode with Activated Features If you have activated features on your Swift DT500, you can use the demo mode whenever necessary. To activate the demo mode on Swift DT500: 1. Connect your Swift DT500 to a computer. - Page 21 The wizard displays a message about the demo mode successfully activated. 6. Close the wizard window. If you now connect your Swift DT500 to the powered off radio and then power the radio, your device enters the demo mode. When forced to use the demo mode, a device preserves the information about all activated features in memory.
- Page 22 The wizard displays a message about the activated features successfully recovered. 7. Close the wizard. If you now connect your Swift DT500 to the powered off radio and then power on the radio, your device will enter the normal mode.
