Summary of Contents for PrimaLuna pmn

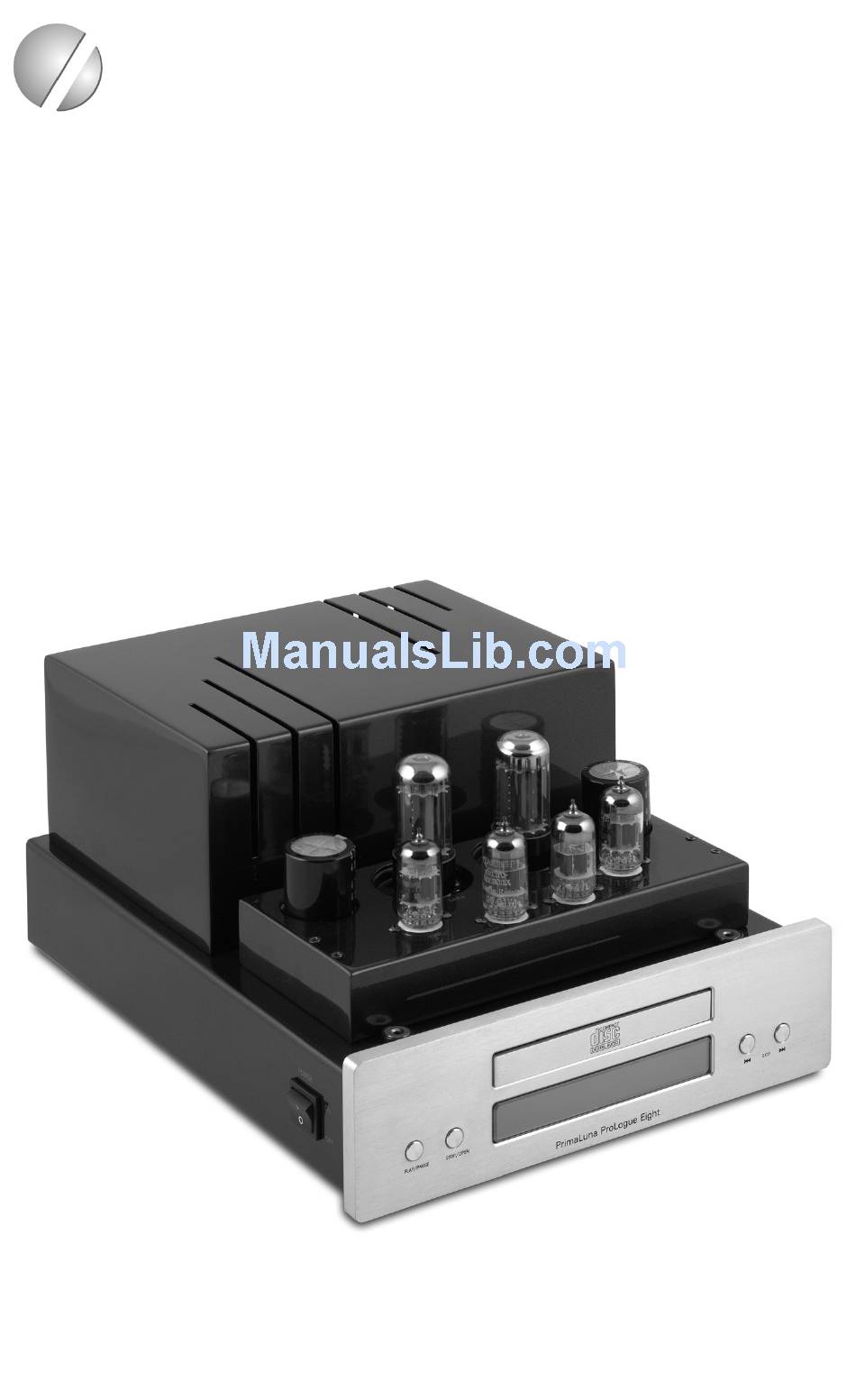

- Page 1 © PrimaLuna ProLogue Eight © PrimaLuna ProLogue Eight Vacuum Tube CD Player Serial Number: ______________...
-
Page 2: Table Of Contents
PrimaLuna Table of Contents Thank you Specifications Warning - Package Contents - Initial Setup Controls and Hook-Up Operation Instructions The SuperTubeClock Tube Basics Fuse Protection Troubleshooting Notes Warranty Information Copyright Durob Audio BV - 2007. All rights reserved. Reproduction in whole or part of text, logo, graphics or schematics is strictly forbidden without permission, in writing, of Durob Audio BV The information in this manual is subject to change without further notice. -
Page 3: Thank You
We hope that the PrimaLuna ProLogue Eight CD Player will make you want to follow our next steps in expanding this new range of products. If you have any questions or com- ments, don’t hesitate to contact us. -
Page 4: Specifications
PrimaLuna Specifications Output Level Frequency Response Distortion And Noise S/N Ratio Dynamic Range Channel Separation Digital Output Power Consumption Net Weight Shipping Weight Dimension Shipping Dimensions Analog Output Digital Outputs Tube Complement © ProLogue Eight 2V±3dB 20Hz - 20kHz +/- 0.5dB 90dB (1kHz) S/PDIF (AES3id) 25.4 lbs / 11.5 kg... -
Page 5: Warning - Package Contents - Initial Setup
• Plug the power cord into the CD player, then into the wall socket. • Switch the CD player on; the output will be muted for 30 seconds while the tubes warm up. • Switch the amplification on after the mute of the CD player is released. -
Page 6: Controls And Hook-Up
© PrimaLuna ProLogue Eight Controls and Hook-Up The front panel of the PrimaLuna models is made from machined aluminium, finished to complement the blue metallic chassis. The following functions are controlled with the 4 silver buttons on the front: play/pause; stop/open; next/previous; repeat current/repeat all (read further down the manual for special instructions). -
Page 7: General Operation
PrimaLuna General Operation Turning the unit on/off Turn on the Power Switch (POWER) on the left side, the unit will first close the disc tray, the display will show PRIMALUNA PL8 CDP, and the unit will perform a self-check. When the display shows READING, the self-check has been completed and the unit is ready to read the disc. - Page 8 The functions of the PrimaLuna Remote Control are self-explanatory. The remote controls all the basic CD player functions outlined above and on the next page. It will also control source selection, volume, and triode/ultralinear switching on the DiaLogue Series integrated amplifiers.
- Page 9 PrimaLuna Stop and/or Open During playback or in PAUSE mode, press the Stop/Open Button on the front panel or the remote control to stop a disc that is being played or paused. After stopping playback, you may open the disc tray by pressing the Stop/Open Button a second time.
-
Page 10: The Supertubeclock
This is where the magic happens... the SuperTjoebClock replaces the solid state oscillator normally found in a CD player’s digital clocking device with a mini triode vacuum tube. When you reclock a cd-drive, any noise that is generated here appears unfiltered and unattenuated at the input of the decoder chip in the cd-player and injects jitter, which from then on is an undistinguishable part of the digital audio stream. -
Page 11: Tube Basics
If you decide to experiment with other types of tubes, it is critical that you first turn the power off to the CD player, then turn the volume down completely on your pre-amp AND also switch your pre-amp to a different source. We recommend you not swap tubes in and out repeatedly because every time you insert a tube, you increase the chance of loosening the tube sockets. -
Page 12: Fuse Protection
They should always be replaced with the exact same value and type. NEVER attempt to check or replace a fuse while the CD player is plugged in. Turn off the power amp first and after that the preamplifier and then the CD player. Unplug all speakers, components and AC cords before continuing. -
Page 13: Troubleshooting
No output. Power LED is on and tubes do light up normally. The CD player stays muted for 30 seconds when powered on. Check to make sure all interconnects are securely connected. If all seems to be OK check other equipment in use. -
Page 14: Notes
If you wish to comment on your PrimaLuna ProLogue Eight CD player, please do. If you want to send us a review of your experience with the player, you are more than welcome to.
