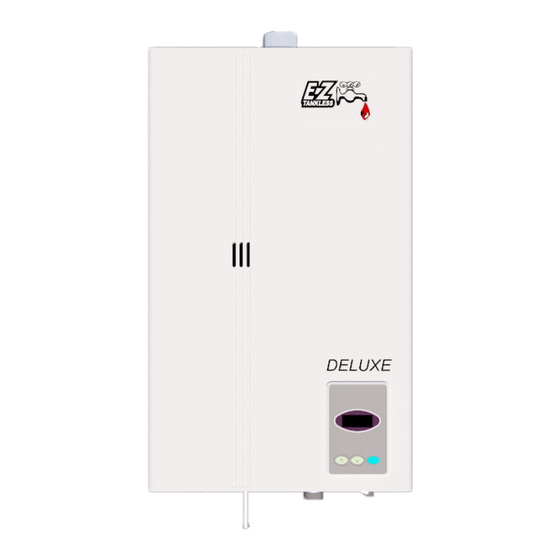

- Page 1 EZ TANKLESS EZ DELUXE OPERATION & INSTALLATION MANUAL...
- Page 2 EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 01.. EZ DELUXE TANKLESS WATER HEATER SPECIFICATIONS Maximum Gas Consumption BTU/h 87,500 Hot Water Supply at 45f Temperature Rise 3.4GPM LPG (Propane) 11” WC NG (Natural Gas) 8” WC Exhaust System Direct Vent w/ Concentric Flue Pipe...
- Page 3 EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 02. TABLE OF CONTENTS 1.0 Limited Warranty 2.0 What’s Included? 2.1 Product Features and Benefits 3.0 Safety Precautions 3.1 Hot Water Risk 3.2 First Aid 4.0 Initial Setup and Operation 5.0 Recommended Maintenance Procedures 6.0 Troubleshooting...
-
Page 4: Limited Warranty
WHAT WILL EZ TANKLESS PROVIDE? EZ Tankless will repair or replace the product or any part or component that is considered defective in materials or workmanship, except as set forth below: EZ Tankless will provide parts with free shipping for most repairs. EZ Tankless will perform labor and pay shipping costs to repair the product if deemed necessary by EZ Tankless. -
Page 5: What's Included
EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 04. 2.0 WHAT’S INCLUDED? 1 x EZ Tankless Water Heater 1 x 3/4” NPT Bushings 2 x 1/2” NPT Bushings... -
Page 6: Features And Benefits
EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 05.. 2.1 FEATURES AND BENEFITS • The EZ Deluxe features our advanced sealed double-chamber forced air intake - exhaust system • Fully-automatic operation. Once installed, simply turn on the water spigot or shower–instanteous hot water will arrive in a few moments. After the tap is turned off, the tankless heater will extinguish and cease operation •... -
Page 7: Safety Precautions
3.1 HOT WATER RISK Hot water is dangerous, especially for the young and the elderly or the infirm. The EZ Tankless water heater allows you to precisely control the temperature of your hot water, ensuring safe water temperature. Water temperature over 125°f can cause severe burns instantly or death from scalding. - Page 8 EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 07.. 4.0 INITIAL SETUP AND OPERATION CELSIUS FAHRENHEIT Note: These steps should be followed for every new location or water source 1. ON/OFF SWITCH Turn the systems power on. Display will light up with temp.
- Page 9 4. USE A SURGE PROTECTOR The EZ Deluxe uses many sensors that are based on resistors. It is important to protect the electronics of the EZ Deluxe system by plugging the units power cord into a surge protector.
- Page 10 XXXXX authority having jurisdiction. Obtain approval with local building code officials prior to installation. EZ TANKLESS WATER HEATERS EZ-Deluxe: Domestic Hot Water - Standard Installation Schematic...
- Page 11 3. CLEAN INLET WATER FILTER SCREEN REGULARLY Located just inside of the water inlet fitting on the bottom of the EZ Deluxe is a filter screen. This screen is used to keep sediment and small debris from entering the heat exchanger. Be sure to regularly check this screen for any debris that it may have caught.
-
Page 12: Troubleshooting
2. Should the unit be showing ‘E1’ every single time it tries to fire: A. Check to make sure that only EZ Tankless vent is being used. Be sure that the vent is installed in a horizontal manner, through an exterior wall and vented outdoors. Check that there is nothing blocking the proper flow of air through the intake or exhaust. - Page 13 Q6. THE DISPLAY SHOWS AN ‘E5’ ERROR CODE WHEN TRYING TO IGNITE. A. This is an error of the limit switch or limit switch wire. Remove the front cover of the EZ Deluxe, keeping the display wires attached. Locate the limit switch in the top left corner. Remove the wires from the limit switch.
-
Page 14: Informational Drawings
EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 13. 7.0 INFORMATIONAL DRAWINGS DESCRIPTION 13-7/8” or 351mm Width 4-7/8” or 125mm Depth Height - Unit 22-7/8” or 566mm 24-5/16” or 618mm Height - Including Brackets 3/4” of 20mm Hot Water Outlet (from wall) 1-3/4” or 42mm 2-1/4” or 52mm... -
Page 15: Contact Us
EZ TANKLESS DELUXE OPERATION + INSTALLATION MANUAL PAGE 14. CONTACT US EZ TANKLESS, INC. 120 N WASHINGTON AVE FOWLER, IN 47942 SALES DEPARTMENT: SALES@EZTANKLESS.COM 219-369-4781 SUPPORT DEPARTMENT: SUPPORT@EZTANKLESS.COM 765-885-5125...
