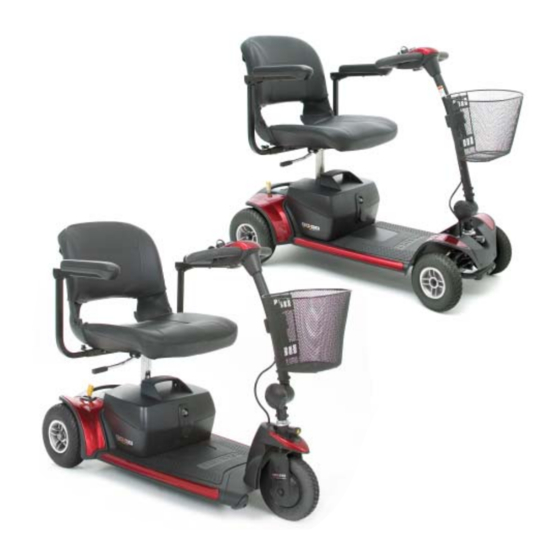

- Page 1 ELITE TRAVELLER PLUS Including Models: Elite Traveller Plus and Elite Traveller Plus HD...
- Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2008 Pride Mobility Products Corp. INFMANU3231/Rev D/April 2008 G U I D E L I N E S...
-
Page 3: Table Of Contents
VI. COMFORT ADJUSTMENTS... 28 VII. DISASSEMBLY AND ASSEMBLY ... 30 VIII. BASIC TROUBLESHOOTING ... 32 IX. CARE AND MAINTENANCE ... 34 WARRANTY... 36 APPENDIX I - SPECIFICATIONS ... 38 Elite Traveller Plus/Plus HD C O N T E N T S www.pridemobility.com... -
Page 4: Introduction
SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities. Understanding how to safely operate and care for this product should bring you years of trouble free operations and service. - Page 5 Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Locked and in drive mode. Fully charge batteries before operating. Remove key from an unattended Travel Scooter. Elite Traveller Plus/Plus HD I I . S A F E T Y www.pridemobility.com...
- Page 6 Do not allow unsupervised children to play near the Travel Scooter while the batteries are charging. Wear safety goggles. I I . S A F E T Y www.pridemobility.com Elite Traveller Plus/Plus HD...
- Page 7 Do not place your Travel Scooter in freewheel mode while on a incline. Explosive conditions exist! Disposal and recycling—Contact your authorized Pride Provider for information on proper disposal of your Pride product and its packaging. Elite Traveller Plus/Plus HD I I . S A F E T Y www.pridemobility.com...
- Page 8 Get to know the feel of your Travel Scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your Travel Scooter operates smoothly and safely. I I . S A F E T Y www.pridemobility.com Elite Traveller Plus/Plus HD...
-
Page 9: Your Travel Scooter
! When driving down a ramp, keep the Travel Scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. ! Avoid sudden stops and starts. Elite Traveller Plus/Plus HD I I . S A F E T Y... - Page 10 15 lbs. (6.8 kg). I I . S A F E T Y 3oo lbs. (136 kg) 8° (14.1%) ELITE TRAVELLER PLUS HD www.pridemobility.com 325 lbs. (147.42 kg) 8° (14.1%) Elite Traveller Plus/Plus HD...
- Page 11 ! Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. Elite Traveller Plus/Plus HD I I . S A F E T Y Figure 2A.
- Page 12 WARNING! Do not attempt to negotiate a curb that has a height greater than 2 in. (5 cm). Figure 3. Correct Curb Approach I I . S A F E T Y Figure 4. Incorrect Curb Approach www.pridemobility.com Elite Traveller Plus/Plus HD...
- Page 13 ! Drive your Travel Scooter gently and slowly forward to push the door open. Or drive your Travel Scooter gently and slowly rearwards to pull the door open. Elite Traveller Plus/Plus HD I I . S A F E T Y...
- Page 14 WARNING! Do not sit on your Travel Scooter while it is in a moving vehicle. I I . S A F E T Y www.pridemobility.com Elite Traveller Plus/Plus HD...
- Page 15 Travel Scooter safely. WARNING! If you require a positioning belt to safely operate your Travel Scooter, make sure it is fastened securely. Elite Traveller Plus/Plus HD I I . S A F E T Y...
- Page 16 Travel Scooter off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident. I I . S A F E T Y www.pridemobility.com Elite Traveller Plus/Plus HD...
- Page 17 Release the throttle control lever and allow your Travel Scooter to come to a complete stop before engaging the other side of the lever. When the throttle control lever is completely released, it automatically returns to the center “stop” position and engages your Travel Scooter’s brakes. Elite Traveller Plus/Plus HD S C O O T E R www.pridemobility.com...
- Page 18 PROHIBITED! Do not remove the anti-tip wheels or modify your Travel Scooter in any way that is not authorized by Pride. S C O O T E R ANTI-TIP WHEELS Figure 6. Rear Section www.pridemobility.com MANUAL FREEWHEEL LEVER MOTOR/ TRANSAXLE ASSEMBLY Elite Traveller Plus/Plus HD...
- Page 19 The fuse located under the battery pack protects the tiller console electronics. See figure 8. In the event any component of the tiller console is not responding, check this fuse. See VIII. “Basic Troubleshooting” for fuse replacement instructions. Elite Traveller Plus/Plus HD S C O O T E R MAIN CIRCUIT BREAKER...
- Page 20 S C O O T E R PLUGS INTO STANDARD ELECTRICAL OUTLET LED’S PLUGS INTO BATTERY PACK Figure 9. Off-Board Battery Charger Figure 11. Rear Fender Panel Figure 10. Front Fender Panel PUSH HOLE Figure 12. Side Panel www.pridemobility.com PUSH HOLE Elite Traveller Plus/Plus HD...
-
Page 21: Batteries And Charging
Refer to the manual supplied with the battery charger for more information. Elite Traveller Plus/Plus HD www.pridemobility.com Figure 13. Battery Condition Meter... - Page 22 24 consecutive hours. What if my Travel Scooter’s batteries will not charge? ! Ensure that the fuse on the battery pack is in working condition. ! Ensure both ends of the charger power cord are inserted fully. www.pridemobility.com Elite Traveller Plus/Plus HD...
- Page 23 ! Plan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible. ! Limit your baggage weight to essential items. ! Try to maintain an even speed while your Travel Scooter is in motion. ! Avoid stop-and-go driving. Elite Traveller Plus/Plus HD www.pridemobility.com...
- Page 24 8. Connect the red battery cables to the positive (+) battery terminals of each battery. 9. Connect the black battery cables to the negative (-) battery terminals of each battery. BATTERY TERMINAL Figure 15. Battery Replacement www.pridemobility.com BATTERY CABLES Elite Traveller Plus/Plus HD...
- Page 25 What about public transport? If you intend to use public transport with your Travel Scooter, you must contact the transportation provider in advance to determine their specific requirements. Elite Traveller Plus/Plus HD www.pridemobility.com...
-
Page 26: Operation
! Engage the appropriate side of the throttle control lever. ! The electromechanical disc park brake automatically disengages and the Travel Scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. O P E R A T I O N www.pridemobility.com Elite Traveller Plus/Plus HD... - Page 27 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your Travel Scooter. Elite Traveller Plus/Plus HD www.pridemobility.com...
-
Page 28: Comfort Adjustments
Travel Scooter. A D J U S T M E N T S Figure 16. Tiller Adjustment Knob DETENT PIN Figure 17. Seat Adjustments www.pridemobility.com TILLER ADJUSTMENT KNOB SEAT ROTATION LEVER ARMREST ADJUSTMENT KNOB Elite Traveller Plus/Plus HD... - Page 29 Travel Scooter. NOTE: As a precaution, avoid placing wallets, keys, or valuable items in the storage area. Elite Traveller Plus/Plus HD A D J U S T M E N T S UPPER SEAT POST...
-
Page 30: Disassembly And Assembly
3. Slowly separate the two sections of the Travel Scooter. A N D BASKET REAR SECTION when Figure 20. Disassembled Travel Scooter UNLOCKED POSITION Figure 22. Tiller Lock Knob (Unlocked) www.pridemobility.com A S S E M B L Y SEAT FRONT SECTION BATTERY PACK Elite Traveller Plus/Plus HD... - Page 31 WARNING! After assembly, make absolutely certain the tiller lock knob is in the unlocked position before riding your Travel Scooter. FRAME RELEASE LEVER Figure 23. Frame Separation Elite Traveller Plus/Plus HD A N D FRAME HOOK LOWER FRAME TUBE www.pridemobility.com...
-
Page 32: Troubleshooting
Shut down your Travel Scooter for a minimum of several minutes to allow the controller to cool. Or, try reinserting the key into the key switch and turning the Travel Scooter on. Figure 24. Working Fuse Figure 25. Blown Fuse (Replace) Elite Traveller Plus/Plus HD... -
Page 33: Basic Troubleshooting
If you experience any problems with your Travel Scooter that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. Elite Traveller Plus/Plus HD T R O U B L E S H O O T I N G... -
Page 34: Care And Maintenance
Check electrical components frequently for signs of corrosion and replace as necessary. BATTERY TERMINAL CONNECTIONS Make certain that the terminal connections remain tight and are not corroded. www.pridemobility.com Elite Traveller Plus/Plus HD... - Page 35 Your Travel Scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, and batteries. Elite Traveller Plus/Plus HD www.pridemobility.com...
-
Page 36: X . W A R R A N T Y
! Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically autho- rized, IN ADVANCE, by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part of the Travel Scooter without specific and prior consent from Pride X . - Page 37 Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you. Elite Traveller Plus/Plus HD www.pridemobility.com...
- Page 38 Up to 13 miles (21 km) with 17 Ah batteries 3 in. (7.62 cm) at mid-frame Elite Traveller Plus: 300 lbs. (136 kg) Elite Traveller Plus HD: 325 lbs. (147.42 kg) Type: Foldable moulded plastic Material: Black Vinyl Rear-wheel drive, sealed transaxle, 24 volt DC motor...
