LABEL INFORMATION PRODUCT SAFETY SYMBOLS The symbols below are used on the controller to identify warnings, manda- tory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.
Basic Operation Instructions INTRODUCTION WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that the design features will provide you with the conveniences you expect during your daily activities.
Page 6
Basic Operation Instructions NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately. My authorized Pride Provider is: Name: Address: Phone Number: Purchase Date:...
Basic Operation Instructions GC2 CONTROLLER The GC2 controller is a fully-programmable, modular electronic controller system that allows you to operate your power chair. It is designed to allow the user to have complete control over chair movement and speed. The controller has been pre-programmed to meet a typical user’s needs. The program is set using either a personal computer with software provided by the controller manufacturer or with a hand-held programmer, also provided by the controller manufacturer.
Page 8
Electromagnetic and Radio Frequency Interference (EMI/RFI) WARNING! electromagnetic and radio frequency waves can have an adverse effect on the performance of electrically-powered mobility vehicles. Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless com- puter links, microwave signals, paging transmitters, and medium-range mobile transceivers used by emergency vehicles.
Page 9

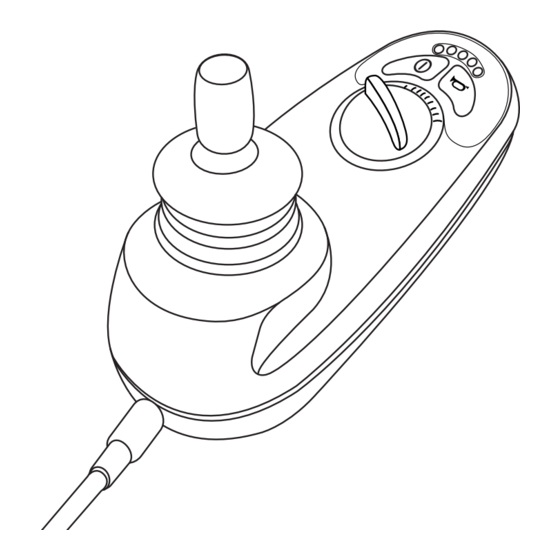

Basic Operation Instructions GC2 Controller Features Figure 1 provides information on the GC2 components and connections. Use this diagram to familiarize yourself with the function and location of each component before using the GC2 controller. The following functions are available with the GC2 controller: Joystick Control The joystick is used to control the direction and speed of the power chair.
Page 10
Battery Condition Meter Series of five colored LEDs which display the battery condition and fault codes. On/Off Key Press to power on or off the power chair and controller. Speed Dial Turn to increase or decrease maximum speed. Joystick A multi-functional tool used to control speed and direction.
Basic Operation Instructions OPERATING THE GC2 CONTROLLER The GC2 controller is used to operate your power chair and all of its components. The GC2 controller system consists of (see figure 2): 1. Joystick 2. Control panel 3. Joystick module 4. Off-board charging/programming socket 5.
Page 12
ON/OFF KEY SPEED DIAL JOYSTICK Figure 3. Control Panel Control Panel The control panel is located directly in front of the joystick. It contains keys and a dial that you will use to control your power chair. See figure 3. On/Off Key The on/off key turns the system on and off.
Page 13
Basic Operation Instructions To change the speed: 1. Push the on/off key to power on the chair and the controller. 2. To increase your speed, turn the speed dial clockwise. 3. To decrease your speed, turn the speed dial counterclockwise. NOTE: We recommend that the first few times you operate your power chair, you set the speed to the slowest setting until you become familiar with your new power chair.
CONTROLLER COMMUNICATION CONNECTOR The controller communications connector provides the GC2 with a connec- tion to the power module. MANDATORY! Prevent controller harness damage! Avoid routing the controller harness on the outside of the armrest pad. Route the harness under the armrest or toward the inside of the armrest pad.
Basic Operation Instructions SLEEP MODE Your GC2 Controller has a sleep mode feature. Sleep mode is a built-in circuit that automatically shuts off the main power if the joystick is not moved in any direction for a period of time predetermined by the controller program.
FAULT CODES The battery condition meter will flash fault codes when the controller system detects an abnormal condition in the electrical system. All of the battery con- dition meter LEDs will flash a number of times quickly, then pause, then flash again.
Basic Operation Instructions CARE AND MAINTENANCE Refer to your power chair owner’s manual for proper cleaning and disposal instructions. WARRANTY Refer to your power chair owner’s manual for specific information on controller warranty. www.pridemobility.com GC2 Controller...
