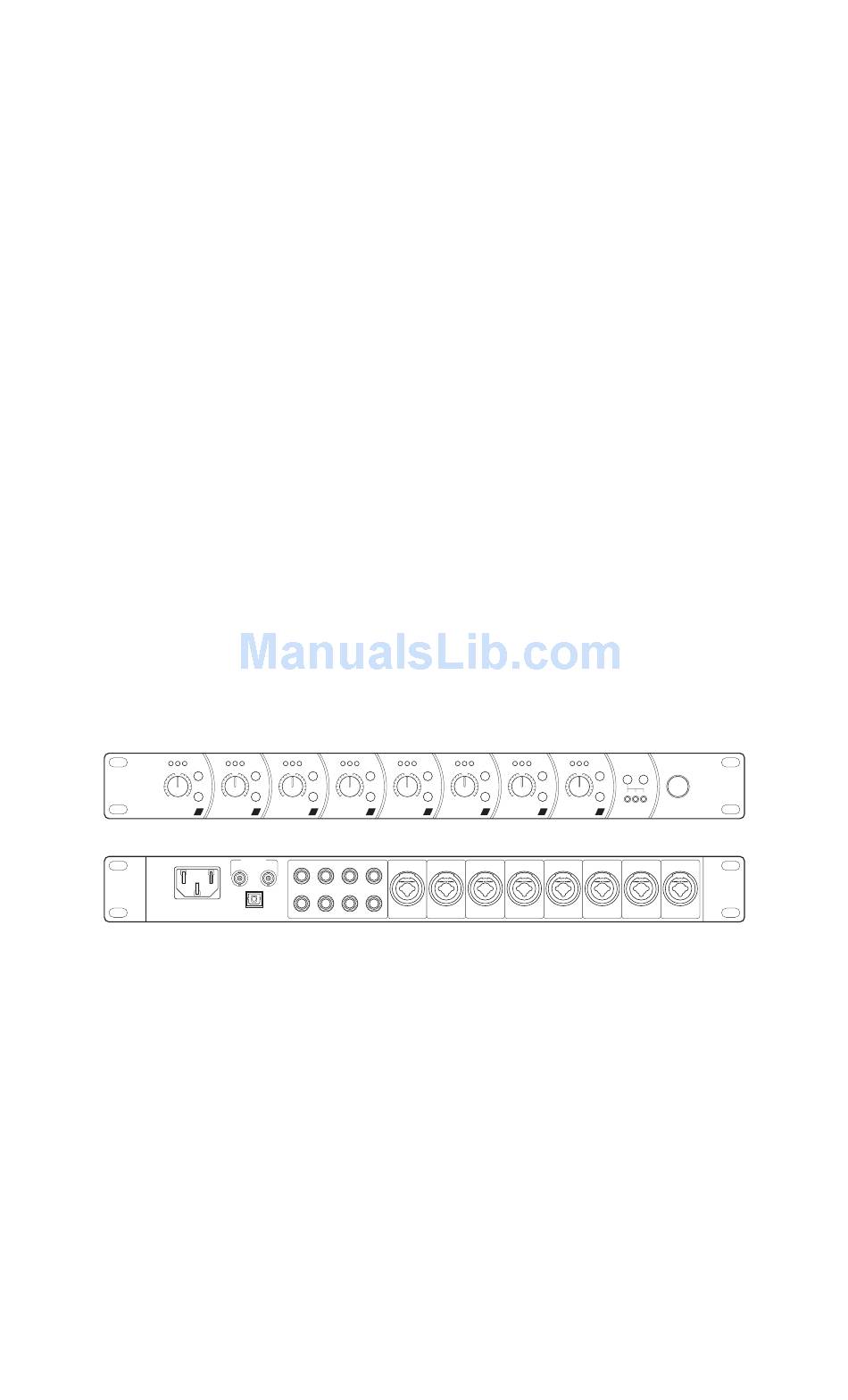

- Page 1 DigiMAX LT Eight-Channel Mic-Preamplifier with adat™ Lightpipe Output USER’S MANUAL 1.0 CLIP CLIP CLIP CLIP +48V +48V +48V +48V GAIN GAIN GAIN GAIN 115/230 VAC ~ WORD CLOCK POWER (by internal jumpers) 20WATTS CREATED, DESIGNED MANUFACTURED IN THE USA CHANNEL INSERT POINTS adat™...
-
Page 2: Table Of Contents
Overview... 1 Introduction ... 1 Features ... 2 Controls & Connections ... 3 Front Panel... 3 Back Panel ... 5 Operations ... 6 Dynamic Microphones ... 6 Phantom Powered Mics ... 6 Line Level Inputs... 6 Application Guide ... 6 Technicial Specifications ...10 PreSonus Limited Warranties ... -
Page 3: Overview 1
We appreciate the support you have shown us through the purchase of this product. Please pay close attention to how you connect your DigiMAX LT to your system. Improper grounding is the most common cause of noise problems found in studio or live sound systems. -
Page 4: Features
This revolutionary style connector lets you use either 1⁄4” or XLR connectors in the same input. Sample Rate Selector The DigiMAX LT has a switch on the front panel that lets the operator choose the sample rate. It provides selectable rates of 32k, 44.1k and 48k. Ext Clock When the External clock switch is engaged the DigiMAX LT goes into ‘chase’... -
Page 5: Front Panel
10dB thus delivering a total gain possibility of 54dB. -20dB Pad A -20dB pad is available on each channel of the DigiMAX LT for reducing incoming signal levels. Using this pad can provide a more manageable signal... -
Page 6: Controls & Connections 2
EXT. CLOCK. When this switch is engaged the operating clock rate of 32k, 44.1, or 48k will be determined by the incom- ing signal from an external device through the word clock in input on the back panel of the DigiMAX LT. -
Page 7: Back Panel
Insert Each channel of the DigiMAX LT has an insert that sends and returns the signal from the associated channel. This insert can be very useful for dynamics processing (such as compressing, limiting, etc.) or for monitoring purposes by helping in overcoming the time discrepancy that may be encountered in some digital recording situations. -
Page 8: Operations
3.3 LINE LEVEL INPUTS The 1⁄4” inputs on the DigiMAX LT are designed for use with line level or low impedance inputs not instrument level inputs. These inputs will work for line level devices such as keyboards, samplers, drum machines, CD players, etc. - Page 9 The single end will look like a stereo 1⁄4” connector. This end of the cable plugs into the insert jack above the input on the back of the DigiMAX LT. You would use the SEND end of the cable as the output cable.
- Page 10 1⁄4” connector. This end of the cable plugs into the insert jack on the back of the DigiMAX LT. You would use the return end of the cable as the input cable. By plugging a device into the return cable, you would be entering the signal chain after the preamp.
- Page 11 OPERATIONS 3...
-
Page 12: Technicial Specifications
4 TECHNICAL SPECIFICATIONS Number of Channels ... 8 Input Input Impedance, XLR Input ... 1.3k Ω Input Impedance, Line Level Input... 10k Ω Connectors ... Neutrik™ Combo Panel Controls Gain ... 0dB to +40dB Pad... -20dB Phantom Power ... +48V Meters Signal Present LED ...-20dBu Signal Level LED...-10dBu... - Page 13 TECHNICAL SPECIFICATIONS 4 Input ... 100/120/220/240VAC (Factory Configured) Power ...80 Watts Physical Size ...1U Rack Dimensions... 19” X 1.75” X 9” Weight ... 15 lbs. Chassis ... Steel Panel ... Aluminum As a commitment to constant improvement, PreSonus reserves the right to change any specification stated herein at any time in the future without prior notification.
-
