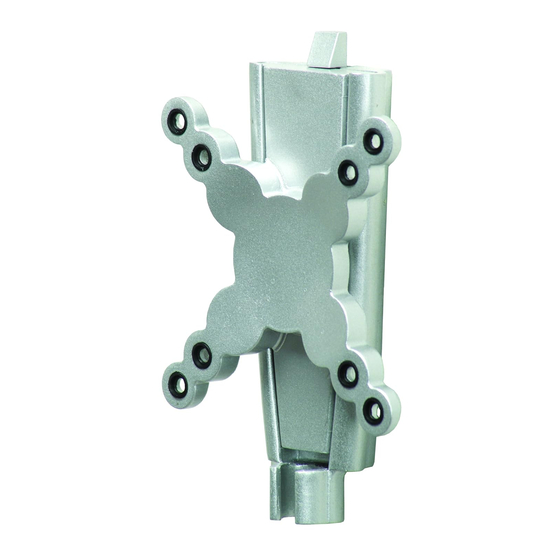

Premier Mounts XUF-1330L Installation Manual

Victory LCD Wall Mounting System
The Victory LCD Mounting System is designed for secure installation of LCD displays of up to
40 lbs. in weight.

Warning Statements

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST A MAXIMUM
WEIGHT OF 40 LBS. IF NOT, THE WALL MUST BE REINFORCED. PROPER
INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN
THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURY OR EVEN DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION
OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION
PROCEDURE TO PREVENT PERSONAL INJURY.
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS
WARNING:
SHOULD BE READ AND
INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE
LOCATION FOR FUTURE REFERENCE.
A secure structure must support the weight or load of the display. When mounting to a wall that
contains wooden studs, dead center of the wooden stud must be confirmed prior to installation.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to
do so could result in damage to the display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct
heat energy. Failure to do so may result in damage to the display and could increase the risk of
fire.
At least two qualified people should perform the installation procedure. Injury and/or damage
can result from dropping or mishandling the display.
Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be
installed on any surface other than wooden studs, use suitable hardware (which is
commercially available).
Contact Victory Mounts with any technical / installation questions.
INSTALLATION GUIDE: XUF-1330L
COMPLETELY UNDERSTOOD. THE INSTALLATION

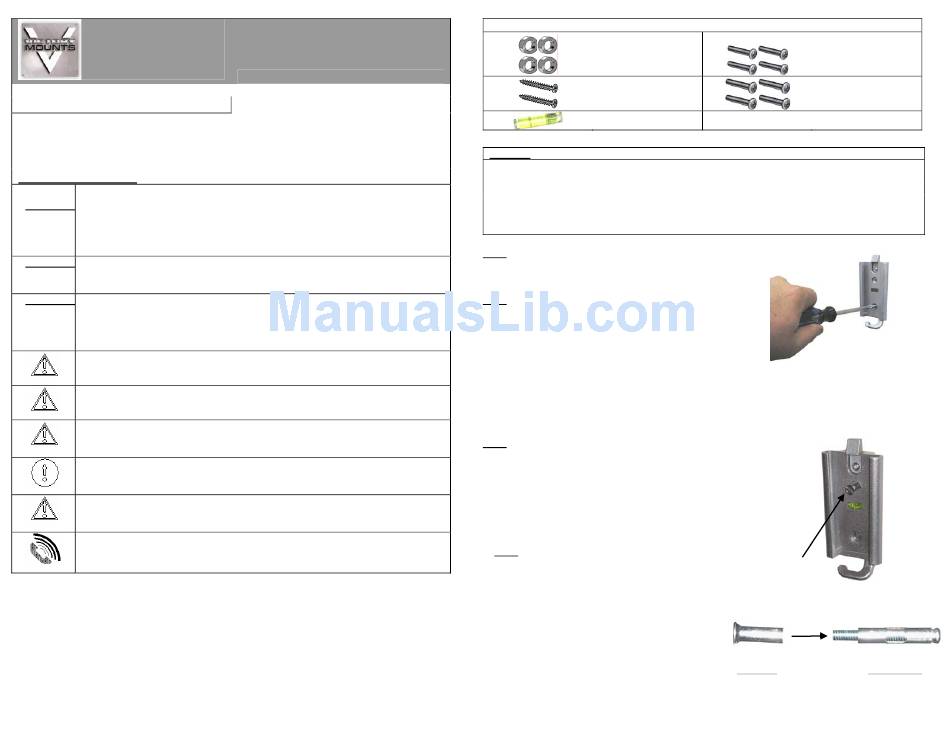

Included Hardware
¾" Spacer (Qty 4)
2" Wood Screw
(Qty 2)
Bubble Level (Qty 1)
Tool List
Phillips/ Slot Head Screw Driver
Electronic Stud Finder
Allen Wrench (Supplied)
Portable Drill
¼" Masonry Bit for Concrete Installation
NOTE: The included level may be permanently attached
to the wall plate by inserting the level into the
receptacle on the back of the wall plate.
Wood Stud Installation
NOTE: Using a wood stud finder, locate the stud centers
behind the wall. Once found, make a pencil
marking on the center of the wood studs. Once the
mark is made, it is strongly recommended that a
pilot hole be drilled with a 1/8" drill bit.
1. Place the back plate against the wall with the hook
towards the bottom.
2. Secure the back plate using one (1) 2" wood screw.
3. Using the integrated bubble guide, carefully adjust the
back plate until it is level.
4. Attach the remaining 2" wood screw into the back plate
and tighten.
Concrete Installation
NOTE: ¼" x 2 ¼" Threshold anchors
used for concrete installation. They can be
purchased at your local hardware store.
1. Place the back plate against the wall with the hook
towards the bottom.
2. Level and mark with a pencil the two mounting points
found on the back plate.
3. Next, drill two holes using an electric drill and ¼"
masonry bit.
4. Insert the threshold anchors into the holes that
drilled in the wall.
NOTE: If necessary, use a hammer to lightly tap each
anchor into place so that they are flush with the
wall. Once mounted in the wall, unscrew the
slotted cap off of the threshold screw.
5. Once the anchors are in place, set the back plate back
over the concrete anchors.
6. Using a Slot Head screw driver, attach the back plate by
threading the two slotted caps onto the threaded insert
that is recessed into the wall.
7. Make sure all screws are snug, but be careful
not to over-tighten them.
M4 x 12mm Phillips
Head Screw
(Qty 4)
M4 x 30mm Phillips
Head Screw
(Qty 4)
must be
were
Threshold
Anchor
Slotted Cap
Threshold Anchor
Threaded Insert
