INSTALLATION INSTRUCTIONS
Suspended Ceiling Tile Adapter
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
PP-FCMA-QL
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
EUROPE
Advertisement
Table of Contents
Related Manuals for Premier Mounts PP-FCMA-QL
Summary of Contents for Premier Mounts PP-FCMA-QL
-
Page 1: Installation Instructions

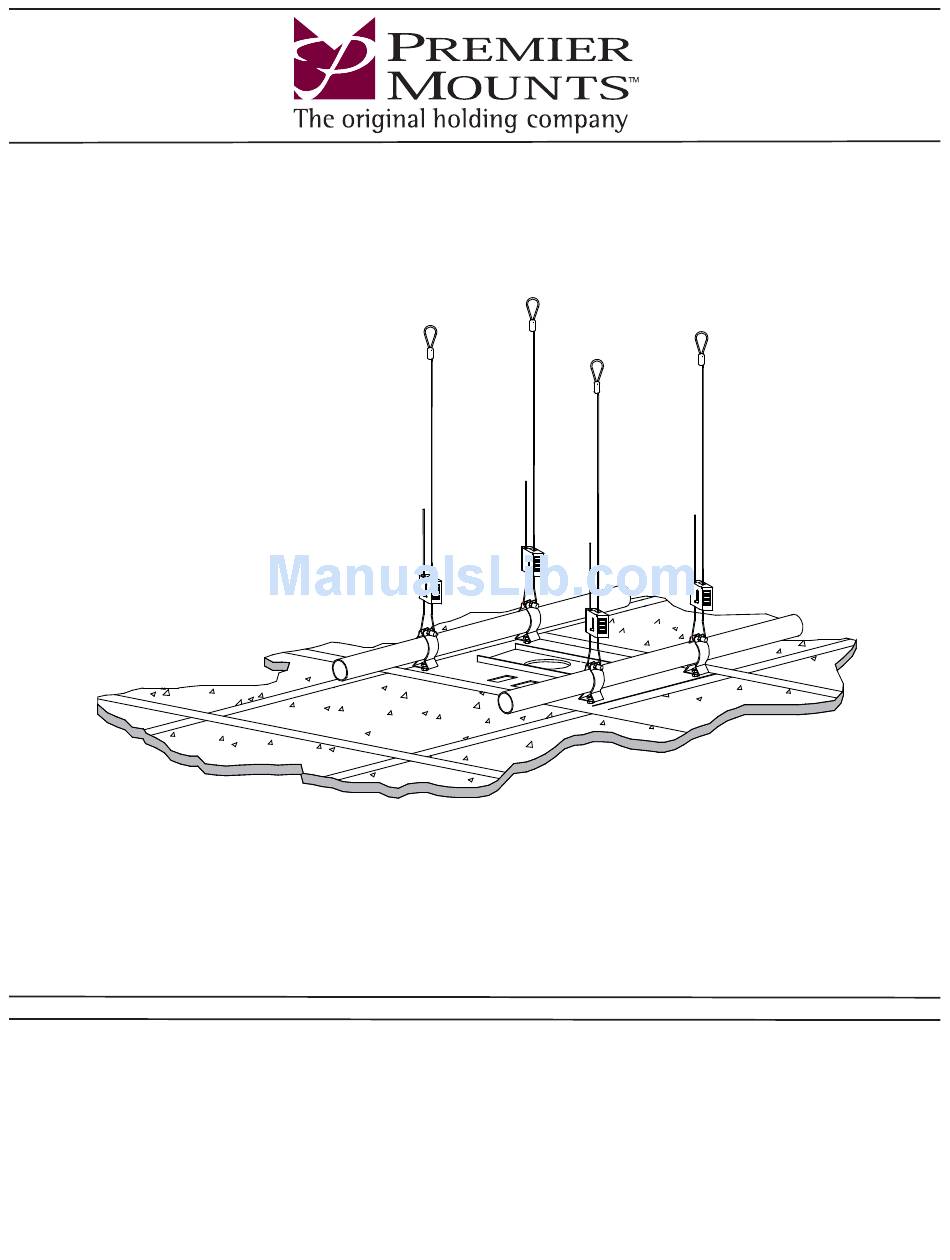

NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9533-010-001-01 INSTALLATION INSTRUCTIONS PP-FCMA-QL Suspended Ceiling Tile Adapter Shilton, Coventry, England CV79JY EUROPE... -
Page 2: Table Of Contents
THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS. -
Page 3: Parts List
This ceiling adapter is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). PP-FCMA-QL(Qty 1) ¼”... -
Page 4: Ceiling Tile Removal
Ceiling Tile Removal Read all cautions and warnings before continuing. Observe the room and the ceiling; find the proper location for the PP-FCMA-QL placement and lightly mark the bottom of the tile. Step 1. Carefully remove the 24” x 24” or, depending on your ceiling configuration, the 24” x 48” suspended ceiling tiles. -
Page 5: Ceiling Anchoring
PP-FCMA-QL Ceiling Anchoring THE PP-FCMA-QL MUST SECURED USING THE SUPPLIED QUICK LOCKS AND BRAIDED CABLES. Truss Truss Loop Braided Cable Truss ceiling Step 1. Loop the braided cable around the truss. Step 2. Run the open end through the loop. -
Page 6: Pp-Fcma-Ql Installation
In the event that you are using the PP-FCMA-QL in an opening that is 24” x 48”, a 24” piece of T-bar (commercially avail- able) must be used to support the mount and ceiling tile. The T-bar (commercially available) will run from side to side and help support the PP-FCMA-QL and 24”... -
Page 7: Attaching Pipe Clamps
Step 2. Remove the four (4) black rubber caps from the step bolts. Step 3. Lower the pipe clamp onto the step bolt. Step 4. Secure the pipe clamp to the PP-FCMA-QL using a 1/4” KEP nut (see above). Step 5. Tighten all hardware with a wrench (commercially available). -
Page 8: Quick Lock Installation
To release the braided cable, slide the release pin to disengage the braided cable. Braided Braided Cable Cable Directional Input Arrows Release Pin Mounting Hole Mounting Hole PP-FCMA-QL Braided Cable 6” Excess Directional Input Arrows Release Pin Release Pin Installation Instructions... - Page 9 Step 1. Once the braided cables have been attached to the upper mounting structure (wood joist, concrete or ceiling truss), it is now time to attach the braided cable to the PP-FCMA-QL. Step 2. Thread each braided cable through the Quick Lock (see previous page).
-
Page 10: Electrical Box Installation
Step 3. Make all electrical connections at this time. PP-FCMA-QL Adjustments Step 1. Loosen the M8 x 20mm screws and M8 flat washers. This will allow you to slide the base box laterally. Please refer to the purchased base box for further operating instructions. -
Page 11: Securing The Pipe To The Pp-Fcma-Ql
PP-FCMA-QL Securing Pipe to the PP-FCMA-QL Step 1. Secure the 1½” (NPT) pipe to the ceiling plate and tighten by using one (1) M5 x 16 Phillips head screw (supplied) to the plate. The M5 x 16 Phillip head screw must be used to stabilize the 1½” (NPT) pipe. -
Page 12: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
