Chuango IP116 Plus Instruction Manual

Hd wifi camera
Hide thumbs

Advertisement

Table of Contents

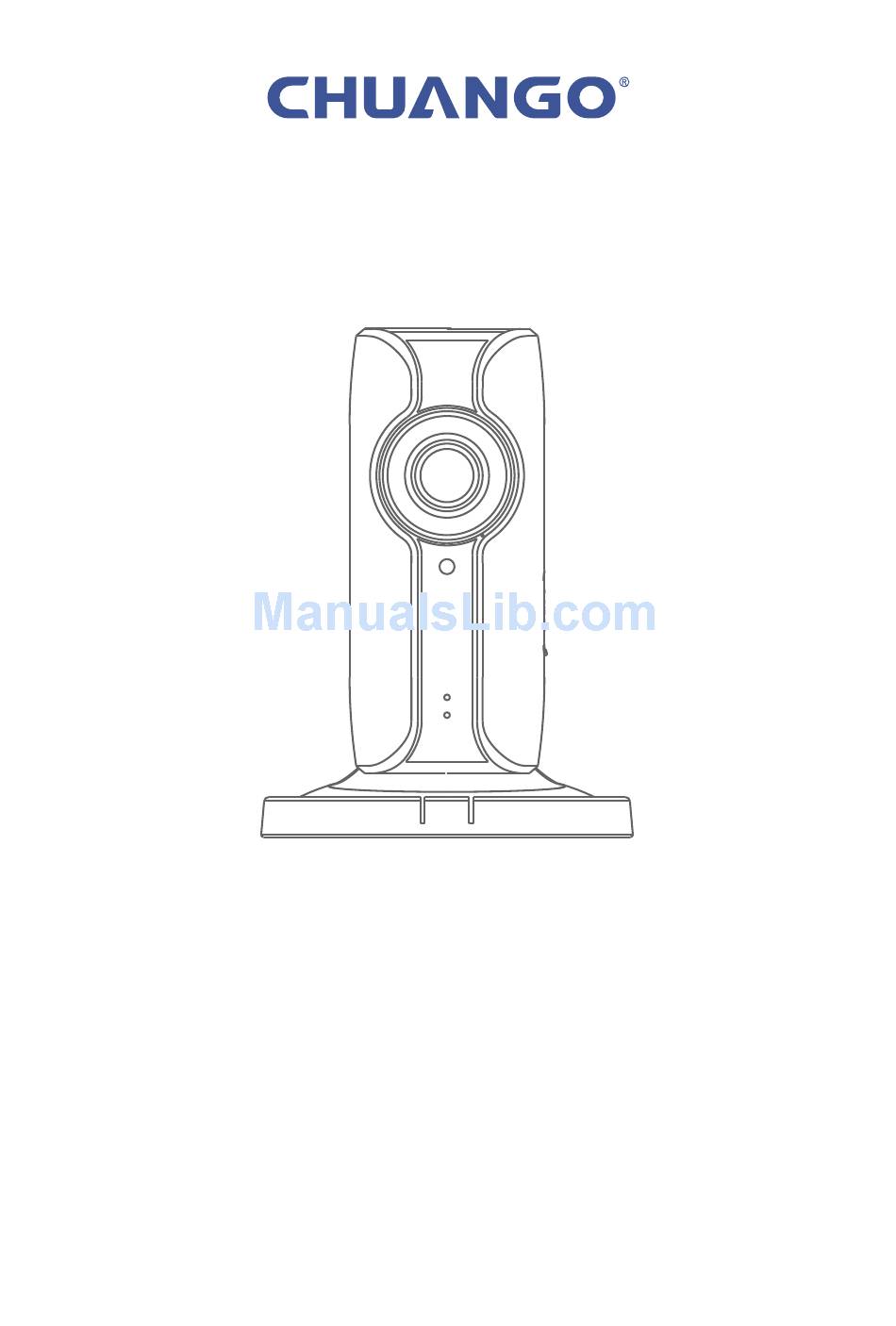

IP116 Plus HD WiFi Camera
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP116 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Chuango IP116 Plus

Summary of Contents for Chuango IP116 Plus

  • Page 1 IP116 Plus HD WiFi Camera Instruction Manual...
  • Page 2 IP116 Plus HD WiFi Camera in less time than it takes to boil water. There are some parts of the installation must be...

  • Page 3: Table Of Contents

    Contents 1.What's Inside…………………………………………………………………………………………………………4 2. IP116 Plus HD WiFi Camera Overview …………………………………………………………………4 3. Getting Started ………………………………………………………………………………………………………6 3.1 Download the “IP116 Plus” App ………………………………………………………………………6 3.2 Sign Up/In …………………………………………………………………………………………………………6 4. App Control And Settings ……………………………………………………………………………………7 4.1 Menu Page ………………………………………………………………………………………………………7 4.2 App Settings …………………………………………………………………………………………………15 5.

  • Page 4: What's Inside

    1. What's Inside WiFi Camera×1 AC Adapter×1 Quick guide×1 Reset Pin×1 2. IP116 Plus HD WiFi Camera Overview Front View Night Vision IR LEDs Camera Microphone Day/Night Sensor LED Indicators Enter WiFi Pairing State Red LED Indicator Blinks Once Per Second...
  • Page 5 Side View Back View Heat Vent Reset Button microSD Card Slot Power Jack microSD™ Card (Not included) Support up to 32GB microSD™ card; Do Not insert the card after the camera is powered on. This camera automatically records and saves videos if a microSD™ card has been inserted;...

  • Page 6: Getting Started

    Download the App by searching “IP116 Plus Camera” from App Store or Google Play. If you have also purchased a Chuango alarm system which supports the IP116 Plus in the APP , you can also setup your camera through the alarm’s app.

  • Page 7: App Control And Settings

    4. App Control and Settings 4.1 Menu Page Edit Account Tap on the picture, and you can add or replace your account image by taking a picture or choosing a picture from your phone’s album. If you want to change your account name, just tap on the [ ] button and enter a new name.
  • Page 8 You can enter add camera interface by tapping “+” or choosing [Add Camera] from menu page. 1. Waiting for the IP116 Plus HD WiFi Camera to Boot Up: Plug the power adapter into a wall socket and the camera will boot up after a few seconds.
  • Page 9 4. Entering WiFi Details for Your IP116 Plus HD WiFi Camera Go back to your IP116 Plus APP and pick up where you left off prior to going to your WiFi Settings. Select the 2.4GHz WiFi network from the choices listed and enter the WiFi network’s password.
  • Page 10 Realtime View Privacy Mode ① The IP116 Plus HD WiFi Camera respects your privacy. When the Privacy Mode is turned on, all users’ real-time video will be a black background and not recorded into the microSD card. Only the master account has the right to use the privacy...
  • Page 11 Snapshot (left) / Video Recording (right) ② Real-time screenshots and video clips can be recorded directly onto your phone. Tap on “My Albums” to view them. Microphone (left) / Listen in (right) ③ Press and hold the Microphone Button to talk and release the button when you finish.
  • Page 12 24/7 Records 1. Select Date of Record 2. Motion Red line: motion was detected in this interval. 3. Pause Button 4. Fast Forward Button 5. Snapshot 6. Video Recording * While you review the continuous recording saved to the memory card, you can also manually save snapshots and/or video clips of interest directly to your phone.
  • Page 13 History Motion-triggered alerts can be reviewed from this History page and the corresponding 15-second videos can be played ONLY if a microSD™ card was inserted. Tap on [ ] to pick a specific date to search an alert. Note: Only the most recent 200 alerts will be shown. New alerts will overwrite the oldest ones.
  • Page 14 Admin (Full Access) With Admin (Full Access), the shared user in this group will be able to do almost everything as the Owner can to the device you shared, with few exception, like re- sharing to others. Important: Because people in Admin group with access to a device can do so much, you should only invite people you really trust.

  • Page 15: App Settings

    4.2 App Settings Click this button to enter Settings page. Device Name This setting enables you to rename your IP116 Plus HD WiFi Camera, and the new name will be shown on the Device List on Realtime View Page.
  • Page 16 This selectable setting enables you to flip, mirror and mirror flip your view angle of the real-time play when your IP116 Plus HD WiFi Camera is mounted on the wall and ceiling or sitting on the desk bracket without remounting to adjust the...
  • Page 17 Video Standard This selectable setting enables you to choose the most suitable frequency for your video. Motion Detection When the Motion Detection function which can be timed as you want is turned on, you will receive a Push Message whenever motion is detected. With your own custom Activity Zones, you can define certain areas of interest in your camera's view and get notification when there is motion;...
  • Page 18 “Email” function and input the receiving email addresses. Network Configuration Reconfiguration ① This setting enables you to reconfigure your IP116 Plus HD WiFi Camera when a network issue has arisen. All settings and records will NOT be erased.
  • Page 19 Synchronize Time ① This setting enables you to choose the time zone for your IP116 Plus HD WiFi Camera, to make sure the time stamp on the recorded video is correct. When motion is detected, you will receive a push notification: (for example) Activity...
  • Page 20 Firmware Update This setting enables you to update your IP116 Plus HD WiFi Camera to the latest firmware if necessary. WHEN AN UPDATE IS TAKING PLACE, FORCED TERMINATION WILL CAUSE SERIOUS DAMAGE TO YOUR IP116 Plus HD WiFi Camera. It is highly recommended that you keep your IP116 Plus HD WiFi Camera plugged in at all times, and DO NOT SWITCH THE DEVICE OFF BEFORE AN UPDATE IS COMPLETED.
  • Page 21 microSD™ Card Auto Cover ① New videos will overwrite older ones automatically when memory card is full. microSD™ Card Format ② This setting will wipe and clean all the recordings stored on your memory card. When video is not being recorded to your memory card, you may try reformatting it. This process is irreversible, so please do proceed with caution.

  • Page 22: Installation

    5. Installation Important: This camera should be placed where the WiFi signal is strong for optimal performance. 6. Restoring to Factory Settings Please read the steps below carefully before restoring to factory settings. Note: If you don’t want to clear the recordings stored on your memory card, you can take out the memory card before restoring to factory setting.

  • Page 23: S P E C I F I C A T I O N

    7. Specifications Image sensor 1/4” Omnivision sensor Min. illumination 0.02Lux @(F2.0,AGG ON), 0 Lux with lR Shutter time 1/50s to 1/100,000s Lens 2.4mm F2.0 Angle of view 95° Video compression H.264 Bit rate Self-adaption Max. image resolution 1280 x 720 Frame rate 20fps (1280 ×...
  • Page 24 Printed in China © 2017 Chuango Security . All Rights Reserved. PA : IP116 Plus-UM-EN-V1.0...
