Flanders Vapor Phase Air Filter PB1209 Specification Sheet

F O R E M O S T I N A I R F I L T R A T I O N
Vaporclean

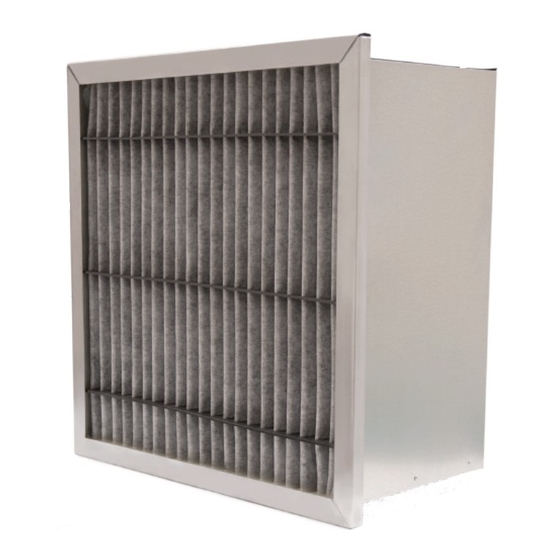

The Flanders Vaporclean vapor phase adsorbers
are designed for removal of molecular contami-
nants at low concentration levels while utilizing the
proven technology of dry processed carbon com-
posite media, (DPCC). The adsorbers provide high
efficiency removal of multiple contaminants for
applications within museums, archive storage facil-
ities, airports and semiconductor fabrication facili-
ties.
Technical Description
The carbon media is manufactured with a dry
processed carbon composite of ultrafine 30 x 50
mesh activated carbon with a minimum carbon
tetrachloride activity of 90% per ASTM D-3467. The
high efficiency carbon granules are thermally bond-
ed to polyester nonwoven bicomponent fibers. The
pleated media pack is contained within a 24 ga cor-
rosion resistant steel casing and bonded with a
polymide hot melt adhesive to maintain rigidity and
eliminate air bypass. Pleat spacing and alignment
is maintained with high impact polystyrene plastic
separators installed on both air entering and leav-
ing sides.
Important Features
• Maximized carbon surface area
• Increased efficiency and capacity
• Low initial static pressure
• Consistent carbon distribution
• Non-dusting media
®
Product Options
The Vaporclean adsorbers are available with five
contaminant specific dry processed carbon com-
posites.
Flanders Filters - Foremost in Air Filtration
Toll Free: 1-800-637-2803
Vaporclean
Vapor Phase Air Filter
DPCC
Grade Application
1501 Effective removal of gas mixtures
consisting of aldehyde, acid gases
and hydrocarbons.
1076 Effective removal of
ozone,hydrocarbons & volatile organic
compounds.
1073 Effective removal of acid gases such
as SO2 and NO2.
1209 Multipurpose blend for both alkaline
and acid gases.
1090 Effective removal of alkaline gases
such as ammonia and other light
organic ammine compounds.
Bulletin PB1209-1206
