Flanders High Temperature Rigid Filter PB1003 Specification Sheet

General

PrecisionCell HT filters are designed for high tem-
perature applications up to 900
same rugged construction as the Gas Turbine
PrecisionCell. The HT version is manufactured of
specially selected components to meet high temper-
ature requirements.
They are ideal for paint drying ovens or any appli-
cation requiring high efficiency filtration at high tem-
peratures. PrecisionCell HT filters are offered in two
high temperature operating ranges; 750
F and efficiency ranges of 65%, 85% and 95% per
ASHRAE Standard 52.1. Offered as a MERV 11-14
according to ASHRAE 52.2.

Construction

The enclosing frame is manufactured of aluminized
steel, which is designed to eliminate spalling of cor-
rosion inhibitors @ elevated temperatures.
The media pack is stabilized by a
retaining bar and captured by faceguards upstream
and downstream. Grid strap bracing on the air
entering and leaving sides maintain the rigidity and
integrity of the PrecisionCell HT.

Important Features

• Continuous duty up to 900
• Aluminized steel construction
• 65%, 85%, 95% efficiencies
• Faceguards and grid straps
• MERV 11 to 14
o
F. They feature the
F and 900
º º
media pack
F
º
Flanders Filters - Foremost in Air Filtration
Toll Free: 1-800-637-2803

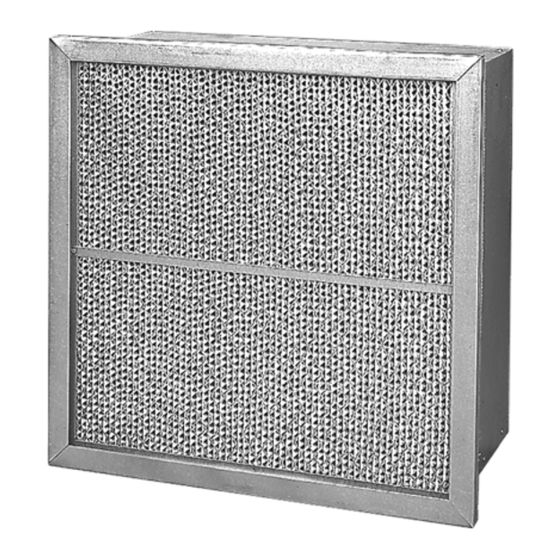

PrecisionCell HT
High Temperature Rigid Filters
The media is designed for operation in high tem-
perature applications and manufactured from one
continuous sheet of wet-laid micro-fine fiberglass,
which provides the required tensile strength and
operating pressure drop for these stringent applica-
tions.

Physical Data

Frame: 24 ga. aluminized steel
Media: Dual layer microfine fiberglass
Separators: Hemmed-edge corrugated aluminum
Header Frame: 7/8" wide aluminized steel
Faceguards: Aluminized steel expanded
1/2" "T" strap downstream and
Cross Bracing:
horizontal strap upstream
Bulletin PB1003-1106
