Flanders Extended Media Surface Rigid Air Filters none Specification Sheet

General

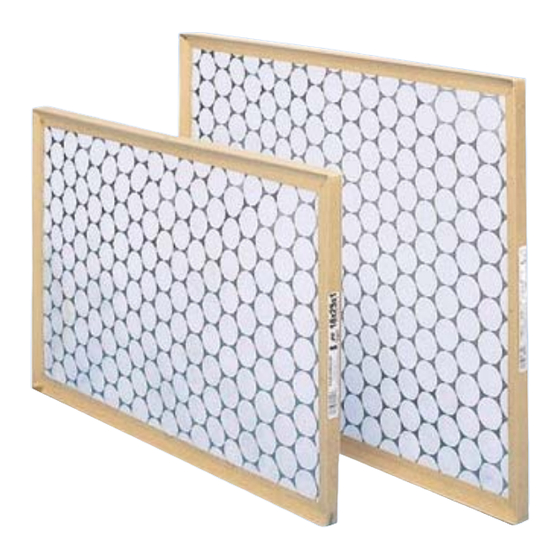

The Flanders Pinch Frame disposable air filter
provides the user with a product of high quality and
strength.
Originally designed for light commercial and indus-
trial applications, the Flanders Pinch Frame filter
is an excellent choice for use in residential furnace
systems.
The filter is produced on state-of-the-art production
line machinery. The result is a filter of consistently
high quality at a competitive price.
Construction
This disposable heating and air conditioning filter
has a one-piece chipboard frame. This feature
eliminates the problems associated with a four-
piece frame, such as broken corners and exposed
metal edges.
Flanders Precisionaire - Foremost in Air Filtration
Toll Free: 1-800-347-2220

Pinch Frame

Disposable Panel Air Filters
The Pinch Frame filter utilizes a heat seal to bond
the frame to the filter media and metal support grid.
This process permits the use of a single metal grid
on the air exit side only, thus maximizing filter face
area and extending service life.
The media is made of 100% nonwoven polyester
synthetic fibers chemically bonded with a fire retar-
dant resin. Because of the synthetic nature of the
fiber, the media is extremely resistant to moisture
and other environmental extremes.
Physical Data
Frame: One-piece chipboard
Media: Dry resinated polyester
Support Grid: Perforated metal on air-exit side
Sealant: Hot-melt resin
Nominal Thickness: 1"
Flammability: UL 900 Class 2
