Summary of Contents for Precision Power G41810

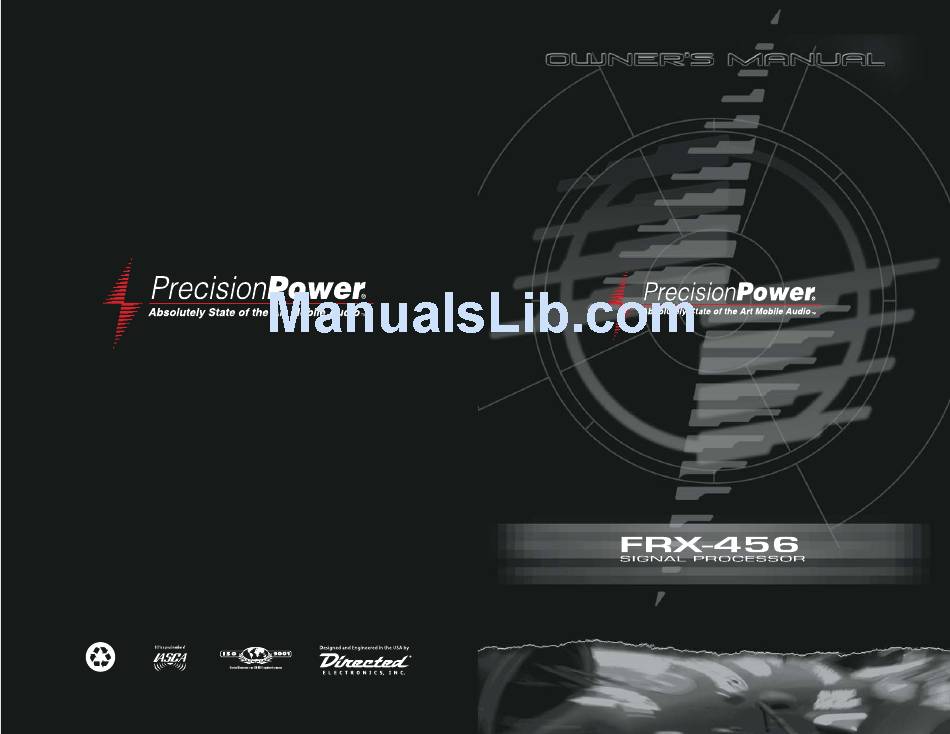

- Page 1 © 2003 Directed Electronics, Inc. All rights reserved. G41810 3-03...
- Page 2 • Linkwitz-Riley 24 dB/octave Subwoofer Filter • Linkwitz-Riley 12dB/octave Mid Bass, Mid Range and High • 2,3, or 4-way active crossover • Input Combine Switch • Input Attenuation • Detented Frequency Selection Controls • Rear Fill Level Control • Sub Woofer Level Control •...
- Page 3 All crossover frequency controls are detented. Each "click" counted from the full counterclockwise position corresponds to a specific frequency. Refer to this chart and page 6 for set-up instructions. DETENT SUB SONIC MID BASS 7 Hz 20 Hz 55 Hz 7 Hz 22 Hz 56 Hz...
- Page 4 Before beginning, disconnect the negative (-) terminal of the battery prior to working on the positive (+) terminal to prevent a short to ground. This is important, unless you want to spend the rest of your life with a nickname like "Sparky," or "Smokey." Reconnect the negative terminal only after all connections have been made.
- Page 5 Before beginning, disconnect the negative (-) terminal of the battery prior to working on the positive (+) terminal to prevent a short to ground. PrecisionPower Check crossover frequencies for Low Pass points set higher than High Pass points, check level control setting for sub and rear Fill, and check gain control on the affected amplifier(s).
- Page 6 1. Attenuation- Push this switch in to accept high level RCA inputs (up to 8v) or direct speaker lead inputs from common grounded (not high powered) headunits. See diagram below for wiring. 2. Combined Inputs- Push this switch IN to connect Front and Rear Inputs. Leave the switch OUT for front/rear fading.
- Page 7 All crossover frequency controls are detented. Each "click" counted from the fully counterclockwise position corresponds to a specific frequency. See the Frequency Chart on page 2 for these values. THESE SPEAKERS: USE THESE OUTPUTS: Subwoofer Sub Out Front Front Mid Bass / Mid Range / Tweeter Mid Bass / Mid Range / High Pass Mid Range / Tweeter Mid Range / High Pass...
-
Page 8: Limited Two-Year Consumer Warranty
Thank you for choosing PrecisionPower ™ audio equipment. At PrecisionPower we proudly design and engineer the world’s finest audio products. Our award winning products utilize innovative design and technology to consistently deliver Absolutely State of the Art™ performance, sound quality, reliability, and value. This PrecisionPower product reflects our commitment to offer you unparalleled versatility and quality for years of dependable service and listening enjoyment.
