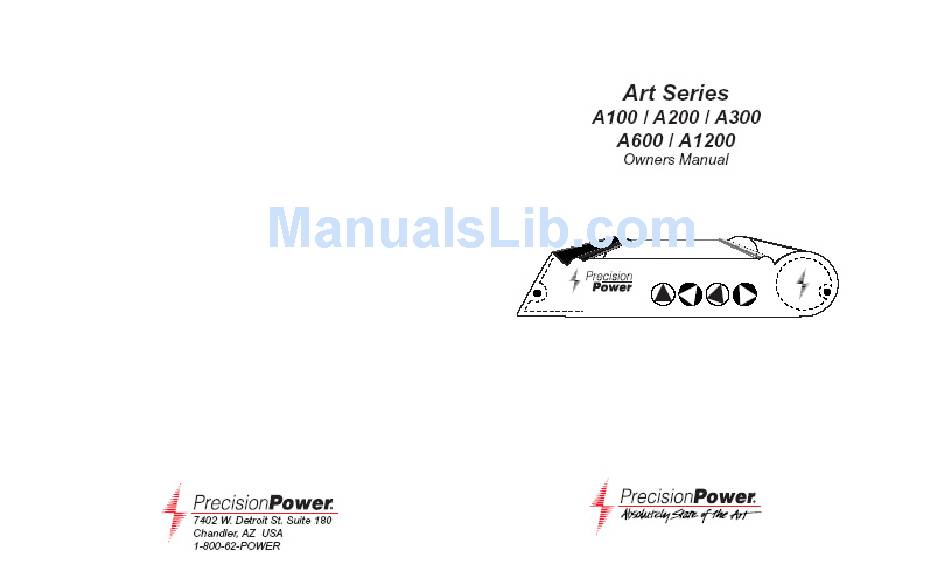

- Page 2 Mobile Audio Electronics CONGRATULATIONS AND THANK YOU for your choice of a PrecisionPower, Inc. high performance mobile audio amplifier. PrecisionPower is proud to be a world leader specializing in the design, engineering, and manufacture of "State of the Art" mobile audio electronics.
-
Page 3: Table Of Contents
Important Safeguards The following list of 'Important Safeguards has been compiled to help you achieve optimum satisfaction and the highest quality performance from your new mobile audio amplifier. Please take the time to review these safeguards before operation and or installation of your new Art Series amplifier. Read Instructions We all have a tendency to read instructions only after something doesn't work as anticipated. -
Page 4: Features
Glossary The following terms are used in this manual. Since they may be unfamiliar, the following definitions are provided. AM II Adaptive MOSFET II is an advanced protection circuit designed to prevent amplifier shut-off due to low load imped- ance. AM II optimizes output power to maintain uninterrupted operation whenever the amplifier senses a load impedance of less than two Ohms. -
Page 5: Specifications
Technical Specifications Art Series Model: A100 A200 Continuous Power Output per Channel: 25 Watts 50 Watts 4 Ohms, 11-15 VDC, Stereo: 50 Watts 100 Watts 2 Ohms, 11-15 VDC, Stereo: 4 Ohms, 11-15 VDC, Bridged: 100 Watts 200 Watts Power Fuse:... - Page 6 the heat from the components to the heatsink. The heatsink, in turn, must dissipate this heat or become too hot for the internal components to operate properly. The heat can be transferred from the heatsink by three different processes: Conduction, Radiation, or Convection.
- Page 8 6 gauge for the A1200, 10 gauge for the A300 & A600 and 12 gauge for the A100 & A200. Depending upon the complexity of your system, larger gauge wire may be needed. PPI's Exclusive Wire Connection System will accept up to 6 gauge cable.
-
Page 9: System Tuning
polarity before securing each wire. If inserting larger gauge wire presents a problem, tinning the wire with solder may help. Be sure the connection is tight. The connector may be plugged into the amplifier. (Refer to Figure C) Bridging All Art Series amplifiers are capable of being bridged into a mono output due to the internal design of the amplifier. -
Page 10: Troubleshooting
Adjusting Crossover Input Gains: 1. Adjust all crossover gain controls to 0 dB, 1/2 of maximum sensitivity. 2. Adjust all amplifier gains to 1/2 of maximum sensitivity. 3. Turn the volume knob on the equalizer to a maximum of 3 o'clock. 4.
