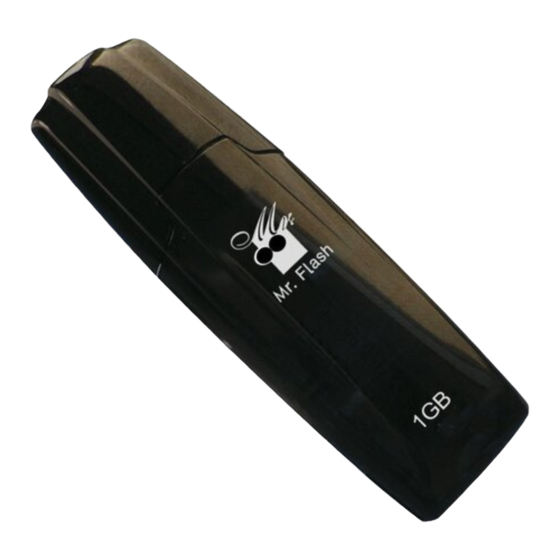

Mr. Flash U220
BB28 Series
Rev. A.0
Sep 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mr. Flash U220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PQI Mr. Flash U220

Summary of Contents for PQI Mr. Flash U220

  • Page 1 USB Flash Drive Mr. Flash U220 BB28 Series Rev. A.0 Sep 2006...
  • Page 2 USB Flash Drive Table of Contents 1. Introduction to Mr. Flash ………... 1 2. Main Features Overview …………..………...……...……………………………..…… 1 3. Hardware Specification ………………………………………..….………….……………………… 1 …………………………………………….………...…………….………………… 1 3.1 USB Interface …………………………………………….……...………………………. 1 3.2 NAND Flash Interface ……………………………………………………….………...………………………… 1 3.3 OS Support …………………………………………………..………...……..…………….

  • Page 3: Usb Flash Drive

    “PQI reserves the right to make changes without notification when fit, form, function, quality and reliability are not affected. The data sheets do not constitute contract documents and should not be considered part of the specification for purposes of any warranty.”...
  • Page 4 USB Flash Drive 1. Introduction to U220 The U220 gives you portability and security to offer you a peace of mind. Compatible with USB 2.0 / 1.1 specifications with low power consumption and data protection. 2. Main Features Overview ♦...
  • Page 5 USB Flash Drive 4. Block Diagram 8051 Micro Controller Data / Address USB2.0 USB 2.0 USB1.1 USB2.0 or Interface 1.1 Port Host PLL, REG 5. Absolute Maximum Ratings Symbol Tstorage Storage Temperature Ambient Operating Temperature Vcc3 3.3V Supply Voltage Vcc18 1.8V Supply Voltage Vin3.3 3.3V Buffer Input Voltage...

  • Page 6: Recommended Operating Conditions

    USB Flash Drive 6. DC Characteristics Symbol Parameter Supply voltage for VCC3 or VCC3A Regulator output voltage for VCC or DD18 VCCA Input Low Voltage Input High Voltage Output Low Voltage (IOL=4mA) Output High Voltage (IOH=4mA) Input pin capacitance Supply current Suspend current (D+1.5KΩ) 7.
  • Page 7 USB Flash Drive 9. Physical Specifications 9.1 Dimensions: 9.1.1 Height: 66.9mm 9.1.2 Width: 21.7mm 9.1.3 Depth: 11.0mm 9.1.4 Weight: 9.3g ± 1g 9.2 Outline of top view Rev. A.0 Sep 2006...
