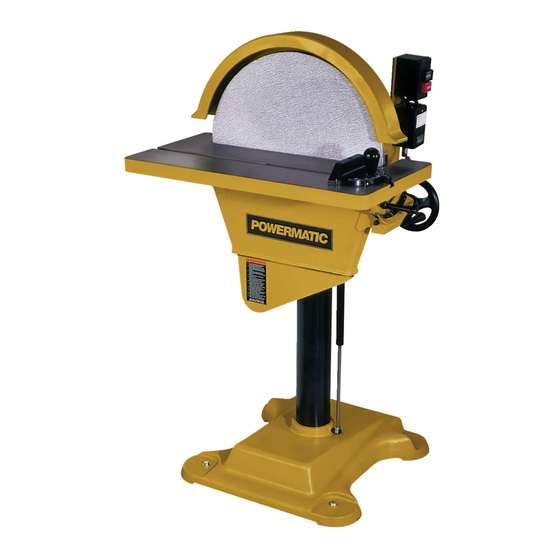

20-inch disc sander

Advertisement

Quick Links

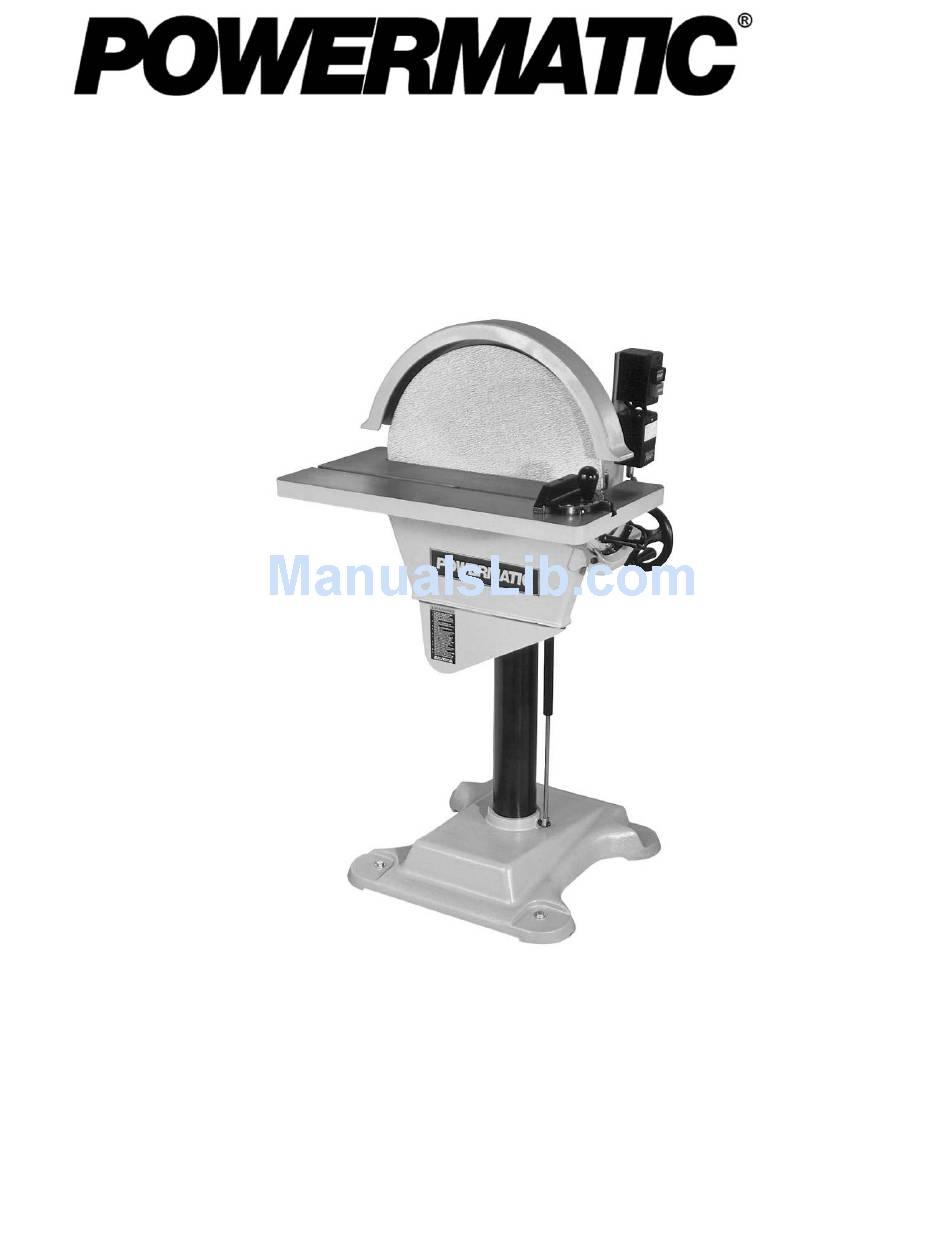

Operating Instructions and Parts Manual
20-inch Disc Sander
Model DS20
Three Phase model shown
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, TN 37086
Part No. M-0460226
Ph.: 800-274-6848
Revision G1 12/2010
www.powermatic.com
Copyright © 2010 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Powermatic DS20

  • Page 1 Operating Instructions and Parts Manual 20-inch Disc Sander Model DS20 Three Phase model shown WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, TN 37086 Part No. M-0460226 Ph.: 800-274-6848 Revision G1 12/2010 www.powermatic.com Copyright © 2010 Walter Meier (Manufacturing) Inc.
  • Page 2: Warranty And Service

    This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? The general POWERMATIC warranty lasts for the ti m e period specified in the product literature of each product. WHAT IS NOT COVERED? The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty.
  • Page 3: Table Of Contents

    Miter Gauge ... 11 Operation ... 11 Forward-Reverse Switch (3-Phase) ... 12 Brake... 12 Replacement Parts ... 14 Parts List: DS20 Disc Sander ... 15 Exploded View: DS20 Disc Sander ... 17 Parts List: Brake Assembly ... 18 Electrical Connections... 19...
  • Page 4: Warning

    4. This disc sander is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a disc sander, do not use until proper training and knowledge have been obtained.
  • Page 5 21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 22. Maintain a balanced stance at all times so that you do not fall or lean against the disc or other moving parts.
  • Page 6: Introduction

    Introduction This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and maintenance procedures for a Powermatic Model DS20 Disc Sander. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual.
  • Page 7: Installation

    Installation Tools required for assembly: 6mm hex key (“Allen wrench”) Exposed metal areas of the Disc Sander have been factory coated with a protectant. This should be removed with a soft cloth dampened with a cleaner/degreaser, or kerosene. Do not use gasoline, acetone or lacquer thinner for this purpose.
  • Page 8: Dust Collection

    Minimum 600 cubic feet per minute is recommended. The Disc Sander has a 4” diameter dust port (Figure 2). Slide the hose of your dust collector over the outlet, and secure with a hose clamp.
  • Page 9: Extension Cords

    15 amp circuit with a 15 amp circuit breaker or time delay fuse. Local codes take precedence over recommendations. If the Sander is to be hard-wired, make sure the fuses have been removed or the breakers have been tripped in the circuit to which the Sander will be connected.
  • Page 10: Table Movement

    3. If required, adjust the pointer to the zero mark, and retighten the screw. Replacing Abrasive Disc The DS20 takes standard 20” diameter cloth or paper-back sanding discs. We recommend 60 grit for coarse or rough sanding, 80 grit for general purpose medium duty sanding, and 100 grit for fine sanding.
  • Page 11: Miter Gauge

    Operation Raise the table into position, as shown in Figure 10. After turning on the sander, allow the disc to come up to full speed before beginning to sand. Slide the miter gauge into the table slot. The miter gauge can be used from either direction to facilitate the position of the workpiece.
  • Page 12: Forward-Reverse Switch (3-Phase)

    Forward-Reverse Switch (3-Phase) The three phase model of the DS20 has a Forward-Reverse switch (Figure 12). When changing direction with the Forward-Reverse switch, turn the lever to the OFF position and allow the disc to come to a complete stop. (Use the brake for immediate stop).
  • Page 13: Troubleshooting

    Replace fuse, or reset circuit breaker. Replace cord. Use adequate size extension cord. Verify that sander is on a circuit of correct size. If circuit size is correct, there is probably a loose electrical lead. Go through all the electrical connections on the edge sander including motor connections, verifying the tightness of each.
  • Page 14: Replacement Parts

    Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-800-274-6848, Monday through Friday (see our website for business hours, www.powermatic.com). Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
  • Page 15: Parts List: Ds20 Disc Sander

    ... 6295591 ...Motor ...3HP, 3Ph, 230/460V ... 1 ... DS20-SC ...Start Capacitor (not shown) ...500MFD, 250VAC... 1 ... DS20-RC ...Run Capacitor (not shown) ...40uf, 250VAC ... 1 32 ... 6295592 ...Hex Head Screw...3/8"-16 x 1-1/2"... 3 33 ... 6295593 ...Flat Washer...3/8" ... 16 34 ...
  • Page 16 Index No. Part No. Description Size 55 ... 6295615 ...Phillip Head Screw...1/4"-20 x 1/2"... 4 56 ... 6295616 ...Spring Pin ...5 x 20mm ... 5 57 ... 6295617 ...Pilot, Left ... 1 58 ... 6295618 ...Gear Segment ... 1 59 ... 6295619 ...Pointer ... 1 60 ...
  • Page 17: Exploded View: Ds20 Disc Sander

    Exploded View: DS20 Disc Sander...
  • Page 18: Parts List: Brake Assembly

    Parts List: Brake Assembly Index No. Part No. Description Size ... DS20-200 ...Brake Assembly (includes index #1 through 12) ... 1 ... DS20-201 ...Brake Pad ... 1 2 ... TS-2311081 ...Hex Nut...M8 ... 1 3 ... DS20-203 ...Push Body ... 1 4 ...
  • Page 19: Electrical Connections

    Electrical Connections...
  • Page 20 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
