Powermatic PJ-882HH Specification Sheet

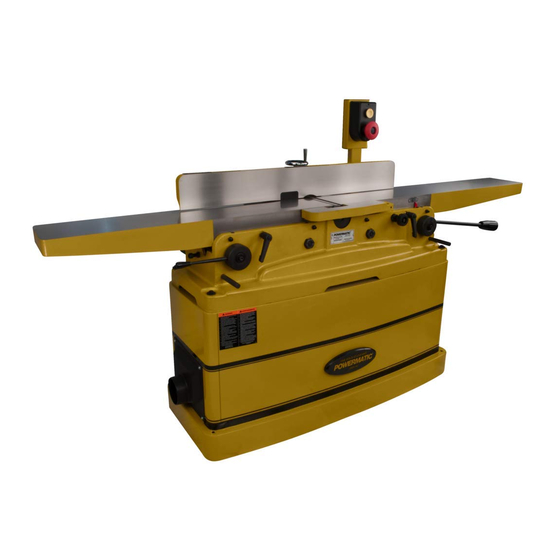

POWERMATIC PJ-882HH 8" Parallelogram Jointer
When you require the ultimate in accuracy, capacity and user-
friendly features, the PJ-882HH 8" Parallelogram Jointer fits the
bill – and then some.
Built from heavy-duty iron castings for long-term durability the PJ-
882HH 8" Parallelogram Jointer weighs in at a hefty 744 lbs. The
full 8" cut width and 82" overall bed length make straightening the
largest project pieces exceptionally accurate. Add the fully
adjustable parallelogram tables, easy knife setting and the PJ-
882HH 8" Parallelogram Jointer rises above the competition.
There are four variations of the PJ-882HH 8" Parallelogram Jointer,
all are identical except for the motor/power or cutterhead design.
The machine in the accompanying photos is the PJ-882HH
(#1610082) that comes with a 2HP motor wired for 220V, 1 phase
power and is equipped with a helical cutterhead. The PJ-882HH
(#1610083) is also equipped with the helical cutterhead but has a
3HP motor wired for 230V (460V capable) and 3 phase power. The PJ-882 (#1610079) has our
three knife cutterhead and is powered by a 2HP motor running on 220V, 1 phase power. The PJ-
882HH 8" Parallelogram Jointer (#1610080) also has our three knife cutterhead but has a 3HP, 3
phase motor that runs on 230/460V power. All four motors are TEFC (totally enclosed fan
cooled) design.

Base Cabinet

The all-steel base cabinet
provides solid footing, houses
the motor and sends the dust to
the 4"-diameter port.
An on/off switch is mounted to a mast that puts it within easy reach while operating the PJ-
882HH 8" Parallelogram Jointer.
Also contained within the base cabinet is an effective dust evacuation chute. The chute runs from
under the cutterhead to a 4"-diameter outlet fitting located near the floor on the end of the base
cabinet. Positioning the dust outlet low on the base helps to keep the hose flat on the floor to be
less of a trip hazard. This position also creates a more direct path that enhances evacuation of the
The fully welded, all steel base cabinet provides a solid platform for
the PJ-882HH 8" Parallelogram Jointer. At 20 ½"-long by 15"-deep
and 20 ½"-tall, the base cabinet puts the PJ-882HH 8" Parallelogram
Jointer bed at a comfortable 31 5/16" above the floor.
The base cabinet also houses the motor and its adjustable mount for
adjusting belt tension when necessary. A door on the rear of the base
cabinet provides ample access to the motor and its mount. All of the
wiring and electronic components are also housed within the base
cabinet, including the magnetic starter.
If power, capability and
durability are important, the
Powermatic PJ-882 8" Jointer
fits the bill – and then some.
