Summary of Contents for Powermatic PM15

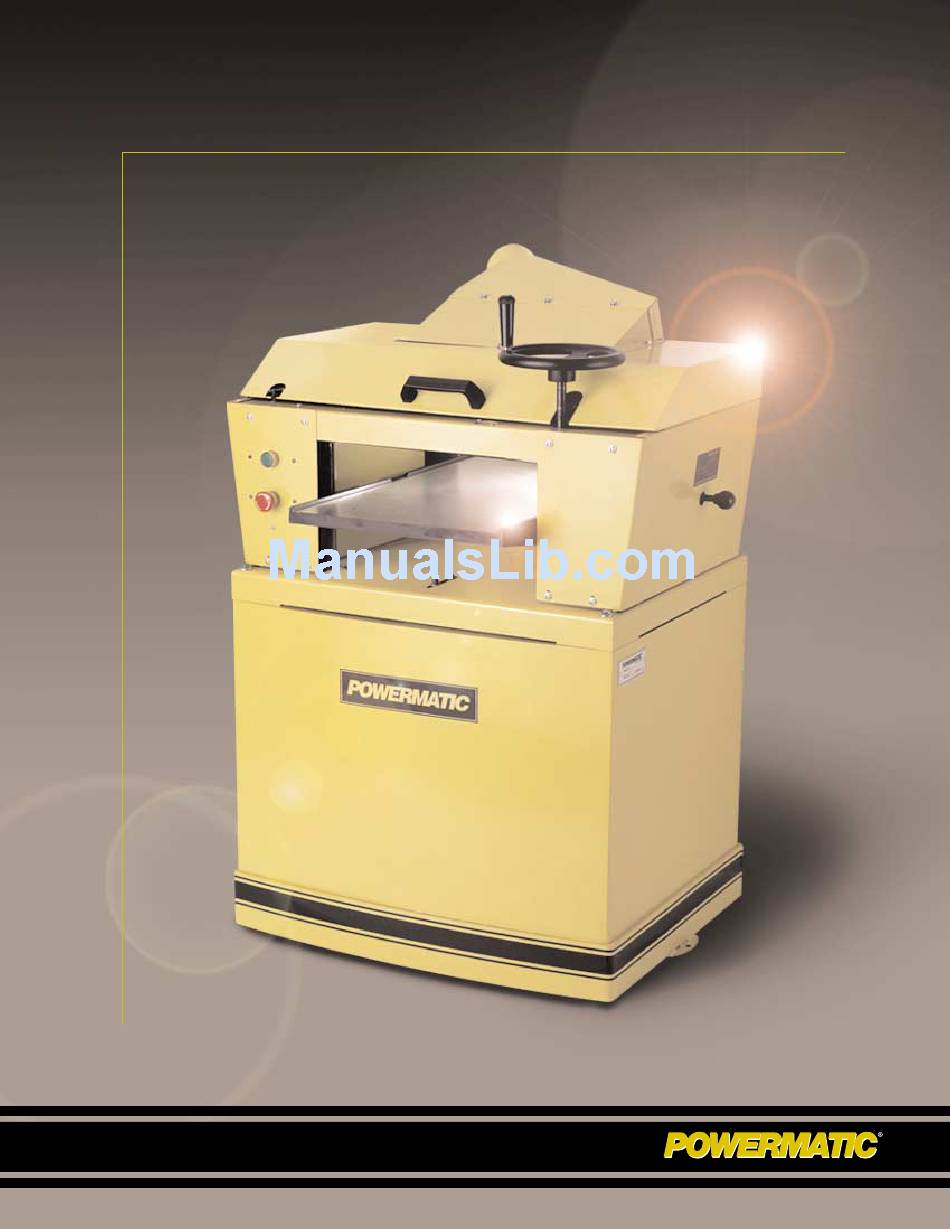

- Page 1 PM15 Planer/Molder Planing or moldings, the choice is yours – with the new PM15 from Powermatic, you can do both with one machine. Loaded with features and built for performance and value. The Gold Standard Since 1921.
- Page 2 PM15 The new PM15 from Powermatic is loaded with features that make it a standout. Large 5HP motor gives the unit 15" wide planing capacity and enough power to run double knife sets for molding. The stand is fully enclosed and is equipped with integral casters for shop mobility.
- Page 3 Large handwheel and easy to read inch/metric scale for fast set up Heavy duty cast iron table supported by 4 columns for accuracy 2-speed gearbox for rough and finish work Big 5HP motor accommodates " " capacity Integral casters for complete mobility...
- Page 4 Knives Moldings Cove Moldings 4570930 " x " Chair Rail Moldings 1. 4570297 " x 3" 2. 4570298 " x 2 " Panel Moldings 4572120 " x 2 " Crown and Bed Moldings Dimensions (in) Bottom 1. 4570470 " x 4 "...
- Page 5 Knives Moldings Brick Molding 4571800 up to 2 " thick (brick molding) Base Cap Moldings 4571630 " x 1 " Stop Moldings 4579260 " x 1 " Paneling T&G Molding 4575388 " to 1" thick (paneling) Wedge T&G Molding 4575391 "...
- Page 6 PM15 Planer/Molder Model Number Stock Number Motor HP/Voltage/Phase Working Width Maximum Depth Cut Planing Maximum Depth Cut Molding Minimum Thickness Maximum Thickness Urethane Infeed Roller Diameter Urethane Outfeed Roller Diameter Feed Speeds Table Size L x W Minimum Length Workpiece...
