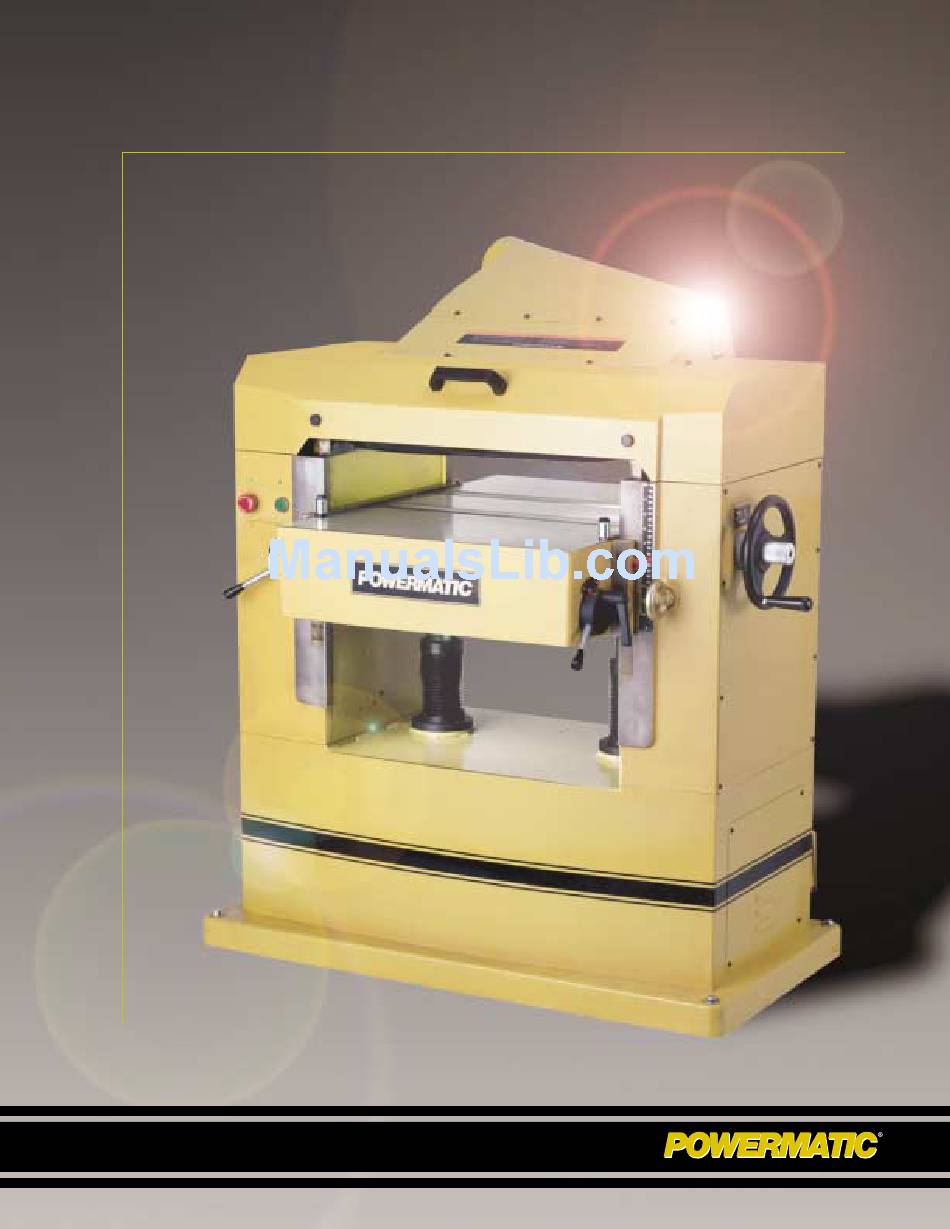

- Page 1 22" Planer Designed with production in mind, a new machine with increased capacity and loaded with features to make short work of your work! The Gold Standard Since 1921.
- Page 2 All cast iron construction 1,300 lb. 2 feed speeds — 20/30 fpm Segmented infeed roller with sectional chip breaker 4-knife head — 22" wide Roller bearing feed rollers Adjustable bed rollers Heavy cast iron table travels on 2 large lead screws...
- Page 3 " " Full 22 capacity Segmented infeed roller and chip breaker All controls are easily accessible from front of machine Rugged cast iron construction throughout the machine Big 7 HP motor in single or three PH...
- Page 4 22" Planer Model Number Motor HP/Voltage/Phase Working Width Maximum Depth Cut Minimum Thickness Maximum Thickness Segmented Infeed Roller Diameter Steel Outfeed Roller Diameter Feed Speeds Bed Rollers Adjustable from Front Table Size L x W Minimum Length Workpiece Table Height Adjust Manual...
