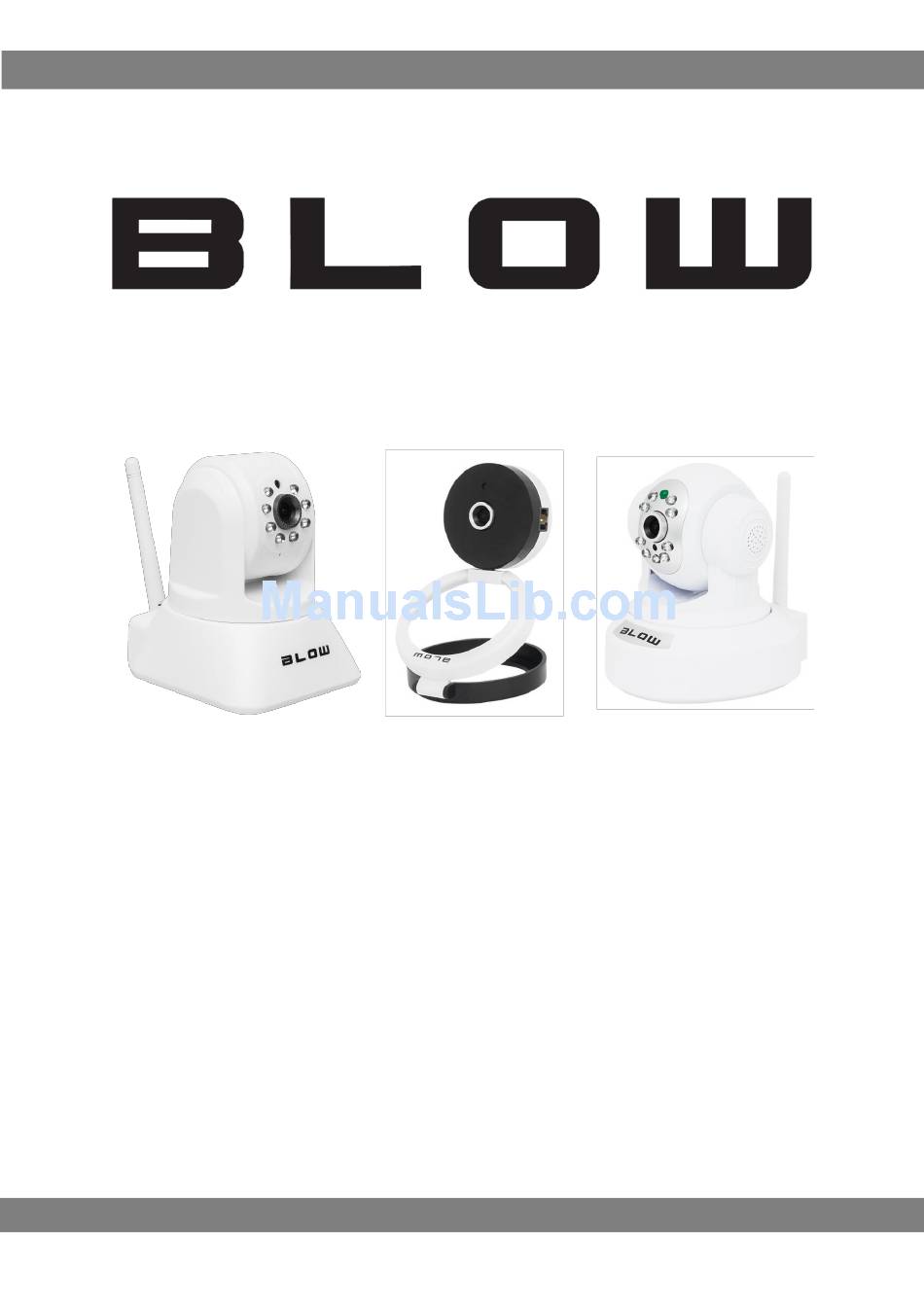

- Page 1 USER MANUAL Camera IP H-963 ; 78-772# H-250 ; 78-773# H-257 ; 78-770# H-258 ; 78-771#...
-
Page 2: Connecting The Hardware
USER MANUAL Connecting the Hardware Conecting Wi-Fi. Connecting via network cable Device Connection 1. Near the wireless router, plug one end of the enclosed power adapter into the power jack of the camera, and the other end of the power adapter into the wall outlet. 2. -
Page 3: Add Camera
USER MANUAL Downlad and Install App Android users can search IPCAM P from iOS users can download IPCAM P from App Google Play store, or just scan the QR-code Store. below to download the App. After installing, the icon will pop up on the mobile phone. - Page 4 USER MANUAL Confirm that you already followed instructions to be as picture 2-1. The app. will automatically select the Wi-Fi network. Input Wi-Fi password and click on “Setting”, then it will be in configuration process as picture 2-2. (2-1) (2-2) (2-3) Tips for Wi-Fi Smart-config: The camera only supports the 2.4 GHz wireless spectrum.
- Page 5 USER MANUAL When Ding-Dong ring tone stopped, please select the device UID number as picture 3-1, consider a name for your camera and click on “Add” as picture 3-2 (3-1) (3-2) Once the camera was added, you will be redirected to the home screen, where you can view the camera.
-
Page 6: Advance Settings
USER MANUAL Advance settings As picture 5-1, tap to get function list bar and tap navigating into advanced settings, you can change password, set up motion detection, recording etc (5-1) (5-2) (5-3) (5-4) - Page 7 USER MANUAL Change password camera 6. In the "Advanced Settings" menu (picture 5-1) Click "Modify Security Code" (picture 6-1), enter the old password in the "Old", the default password is admin. In the "New" enter new password, in the "Confirm" enter new password again, then click OK. The password will be changed.
- Page 8 USER MANUAL Settings connect Wi-fi 7. From the "Advanced Settings" menu, click "Wi-Fi Network Management” (picture 7-1), expand the list of available Wi-Fi networks, choice and click (pcture 7-2), In the next window, enter the password for the selected Wi-Fi network and press "OK" (Picture 7-3).
- Page 9 USER MANUAL Motion decetion 8. From the "Advanced Settings" menu, "Event settings" (picture 8-1), expand the menu (picture 8-2) and select the motion detection sensitivity. Off sensor ("Off") to the maximum sensitivity ("Max"). The higher the sensitivity, the more the camera will record.
- Page 10 USER MANUAL Recording SD card 9. The SD card's recording function is only available when the SD card is mounted in the device. From the "Recording Settings" menu. Select one of the options from the list (Picture 9-1). OFF (turn off recording), All time (continuous recording in 24 hour mode), Alarm (motion video recording).
- Page 11 08-400 Garwolin, Polska www.blow.com.pl Service: Serwis BLOW Stary Puznów 58B 08-400 Garwolin, Polska serwis@prolech.com.pl www.blow.com.pl Electrical equipment marked with a crossed-out wheelie bin symbol cannot be disposed of with municipal waste. Such equipment is subject to collection and recycling. www.blow.pl | www.prolech.com.pl...
