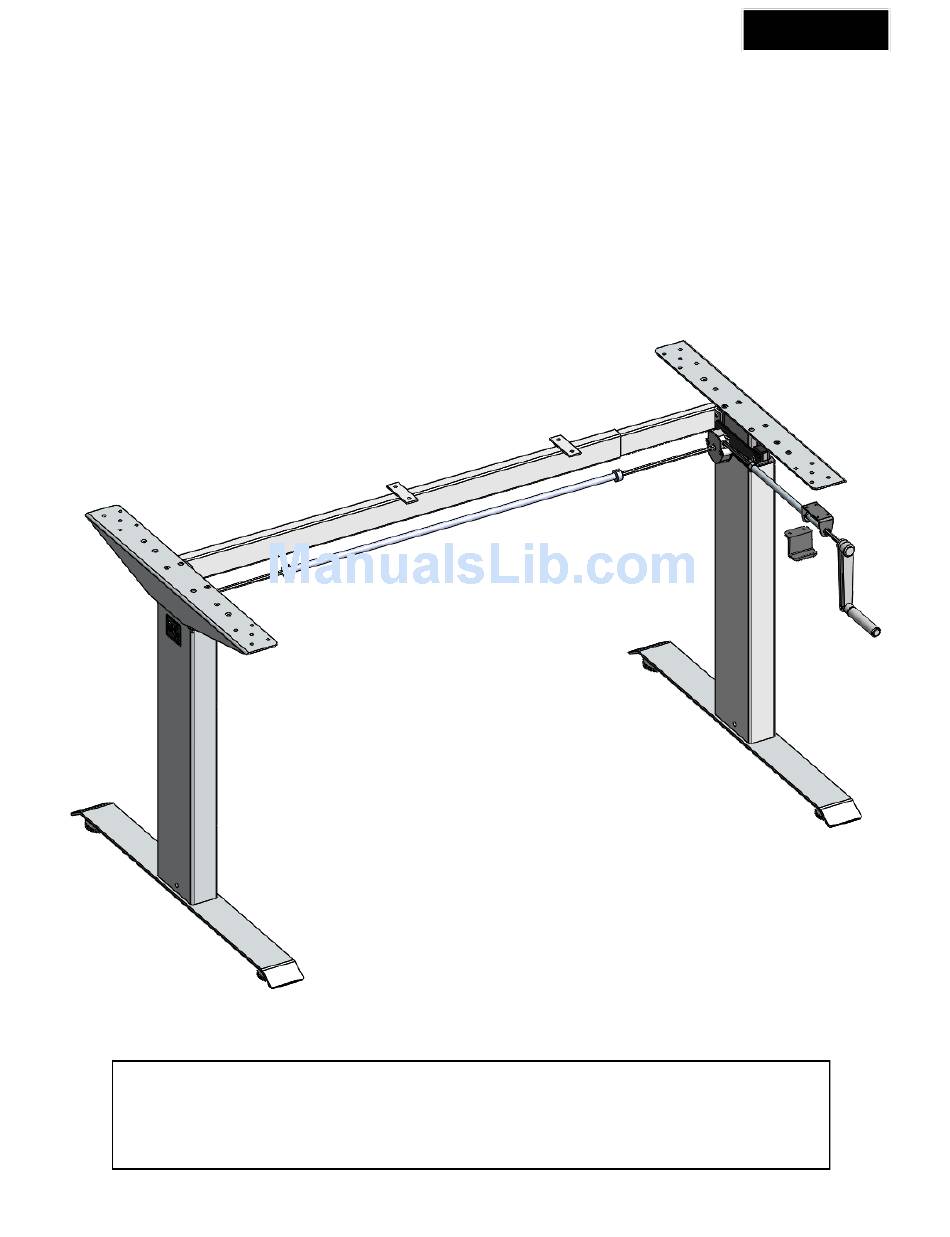

  • Page 1 English MultiTable Manual FlexTable Assembly Manual Read this manual thoroughly and store in a safe place.

  • Page 2: Table Of Contents

    Intended use ..........................4 Improper use ..........................4 SAFETY INFORMATION ..........................4 Symbols/warnings ......................... 4 Symbols used on the FlexTable frame ..................4 Organizational measures ......................4 Informal safety measures ......................4 Note for those assembling the FlexTable ..................5 Transport and assembly .......................

  • Page 3: General

    1 General 1.1 Content box Part name Top support Foot Hexagon shaft Axle Drive Crossbar L-Bracket Foot adjusters 09a Allen key M3 09b Allen Key M5 09c Spanner M10 09d Spanner M8 09e Pipe Key M10 Mounting hardware kit Axle drive tube Handle Gearbox Hexagon Shaft 200mm...

  • Page 4: Local Value Of The Assembly/Operating Manual

    6 months to ensure your table raises and lowers correctly. 1.2 Intended use The FlexTable frame is designed to be used only as a manually adjusted workstation for sitting/standing use in office environments or other enclosed areas. The frame must be used for this purpose only.

  • Page 5: Note For Those Assembling The Flextable

    The FlexTable frame must only be used in appropriate areas (see Section 4, Technical • Specifications). Do not use the FlexTable frame on an uneven surface. In such conditions, it will not be • stable. Never exceed the maximum load on the workstation frame (see Section 4, Technical •...

  • Page 6: Assembly

    • cal wiring. In the event of any damage or incorrect components, contact customer ser- vices (see Section 6). Do not attempt to assemble the FlexTable frame if there is any damage or if there are • any incorrect components.

  • Page 7: Mounting The Crossbar

    3.4.2 Mounting the Crossbar Assemble the following components: Part name Pre-assembled Crossbar Pipe Key M10 Allen key M3 10.2 Set Screw M6x20 10.3 Flange Nut M6  Photo 1 Place both legs flat on the floor, parallel to each • other.

  • Page 8: Mounting The Feet

      Important !!! Please ensure that the “MultiTable” Tag • on both legs are facing outwards. 3.4.3 Mounting the Feet Assemble the following components: Part name Foot Foot adjusters 09b Allen Key M5 10.4 Cap Screw M6x25  Photo 4 Turn the pre-assembled legs and crossbars up-side-down (with 2 persons).
  • Page 9  Photo 5 Place 2 foot adjusters on the bottom of each foot. • Connect each foot to a leg with 4 cap screws. • Tighten the 8 screws with the Allen Key M5. •  Cellulose Tape Photo 6 Remove the transparent cellulose tape on the crossbar bracket before •...
  • Page 10 Part name Pre-assembled Crossbar 09e Pipe Key M10 09a Allen key M3  Tighten the set screws. Tighten the flange nuts Photo 7 Turn the frame back on its foot (with 2 persons). • Now only :- • - FIRMLY tighten the 4 set screws on the crossbar bracket with Allen Key M3. - FIRMLY tighten the 4 flange nuts on the crossbar with Pipe key M10.

  • Page 11: Mounting The Hexagon Shaft

    3.4.4 Mounting the Hexagon Shaft Assemble the following components: Part name Hexagon shaft Axle Drive 09c Spanner M10 Gearbox  Be aware that both legs are completely in the lowest position.  Be aware that all components are originally packed. ...
  • Page 12  Photo 9 Slide the axle drive over both hexagon shafts. •  Photo 10 Slide both hexagon shafts inward, until they are flush with the outside surface of • the leg.
  • Page 13  Part name 09c Spanner M10 Photo 11 Tighten the 4 hex nuts on the leg unit with the Spanner M10 now. •...

  • Page 14: Mounting The Top Supports

    3.4.5 Mounting the Top Support Assemble the following components: Part name Top support 09a Allen Key M3 10.7 CSK M5x25   Photo 12 & 13 Position the top support, like photo 12, in relation to the crossbars. • Connect each top support to a leg with 4 CSK head screws. •...

  • Page 15: Mounting The Hand Crank

    3.4.6 Mounting the Hand Crank Assemble the following components: Part name L-Bracket 10.7 CSK M5x25 09c Spanner M10 10.6 Hex Bolt M6x16 10.5 Washer M6 The slotted hexagon shaft is exchangeable 10.3 Flange nut M6 based on the table top depth. For table top depth 24”~28”, hexagon •...
  • Page 16 16 Photo 16 Slide the handle into the axle drive • tube. 17 Photo 17 Slide the handle assembly over the shaft attached with the hand crank gearbox. •...

  • Page 17: Adjustment Of The Frame Width

    3.4.7 Adjustment of the frame width Pull the frame outward to the required wide (see chapter 3.4.1, Pre-assembly of the • Crossbar). Tighten the set screws in the bottom crossbar and axle drive with the Allen Key M3 • only now. ...

  • Page 18: Frame Test Without Table Top

    3.4.8 Frame test without table top  Make sure that the FlexTable frame can move correctly and freely at all times. Should this no longer be the case, contact customer service immediately (see Section 6). 3.4.9 Note: Mounting the table top and handle holder Center top over base, align with predrilled holes, and attach with 24 wood screws.

  • Page 19: Technical Specifications

    4 Technical Specifications Frame for manually adjustable FlexTable Assembly Manual version 10.1 Material Aluminium, steel and plastic Stroke (max.) 18.11 in Frame load (max.) 140 lbs. Frame weight ± 49 lbs. Speed .236 inches/full rotation Environmental temperature Use 59 - 86°F Environmental temperature Storing 50 - 122°F...
  • Page 20 4 Technical Specifications (* General Tolerance = ± 1/8 in) 27.875” - 45.875” 23.625” 29.5” 45.875” 27.625” Minimum frame height 27.625 in Maximum frame height 45.875 in Maximum stroke 18 in Frame Width 43—67 in Frame Depth 29.5 in Minimum Table Top Depth 24 in Maximum load 140 lbs...

  • Page 21: Operation And Indicators

    FlexTable frame. They would be in serious danger of injuring themselves, possibly even with fatal consequences. Do not exceed the maximum time lag of the FlexTable frame. Make sure there is ample space to avoid collisions if there are objects on the work surface such as computers or computer components.

  • Page 22: Customer Service

    Toll Free: 855-469-6858 customerservice@multitable.com www.MultiTable.com 7 Recycling 7.1 Taking the FlexTable out of active duty Pull the power plug out of the electricity socket. • 7.2 Taking the FlexTable apart In case of de-assembling please follow the manual backwards or contact •...
