  • Page 1 GSM HYBRID MANUAL v1.1 D&R Electronica B.V., Rijnkade 15B, 1382GS Weesp, The Netherlands Phone: +31 (0)294-418014, Fax: +31 (0)294-416987, Website: http://www.d-r.nl, E-Mail: info@d-r.nl...

  • Page 2: Table Of Contents

    Contents BACKGROUND ................................4 ? ..........................4 HAT IS A TELEPHONE HYBRID GENERAL DESCRIPTION ............................5 ................................5 RONT PANEL ................................5 EAR PANEL ..............................6 NPUTS AND UTPUTS SOFTWARE .................................. 7 ................................8 NSTALLATION ................................12 EATURES ................................15 ETTINGS GETTING STARTED ..............................
  • Page 3 All functions are self-explanatory and you will certainly appreciate the ergonomics of this design. We are confident that you will be using the GSM Hybrid for many years to come, and wish you a lot of success with your operation.

  • Page 4: Background

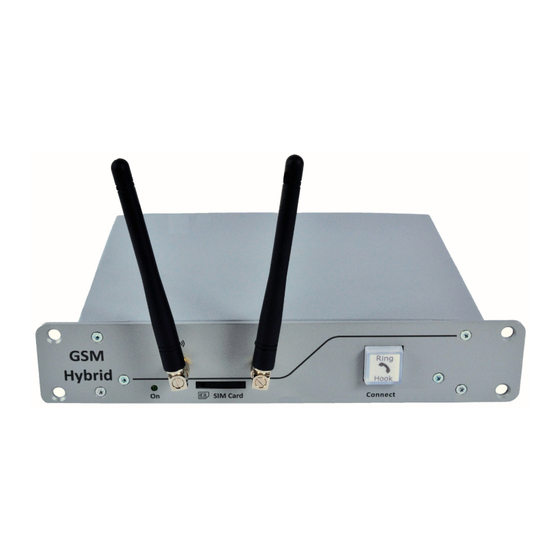

    The GSM Hybrid has its own number reporters directly can dial, the call can be taken on the mixing console due to built in GPIO’s. The electronics are housed in a sturdy metal 9.5” rack mount case with antenna’s on the front side for optimum receiver conditions.

  • Page 5: General Description

    2 GENERAL DESCRIPTION A large ring button enables you to pick up the line from the unit itself or from your mixer when it is connected via its GPI to the telephone Hybrid. When a call comes in it lights up green in the rhythm of the ring. When the line is picked up by pushing the button it turns into red.

  • Page 6: Inputs And Outputs

    This female XLR connector receives the audio coming from a mixing console (Mix/Minus, SEND clean feed (N-1) or Aux) and is send to the caller. Jack connector for remote control of a phone signaling device such as D&R's Calllite Remote control of the Connect switch (Rink/Hook) on the frontpanel. Inputs and Outputs RECEIVE (from caller) 2.3.1...

  • Page 7: Software

    3 SOFTWARE GSM Hybrid Control is an application required to configure and control the GSM Hybrid. Input and output levels can be configured in the Settings menu. Making a call can be done with the dialpad window. The application is also an indicator for SIM card status, call status and input and output level (PPM) meters.

  • Page 8: Installation

    1. Download the GSM Hybrid Control software from: http://www.d-r.nl/wiki/dokuwiki/doku.php?id=software:start 2. Double click on the installer file (GSM Hybrid Control Vx.x.x.x – Setup.exe) and click Next. 3. Select the destination location where GSM Hybrid Control should be installed and press Next.
  • Page 9 4. Select a start menu folder for the program’s shortcut and click Next. 5. Select if a desktop icon should be placed on your desktop and press Next.
  • Page 10 6. Press Install to start with the installation. 7. Wait while the setup installs all the required files on your computer.
  • Page 11 8. Click Finish to exit the setup procedure.

  • Page 12: Features

    Features In this chapter the components or also called features of the GSM Hybrid Control software will be described in more detail. Before you can use any of the features the application offers, you must connect (USB) to the GSM Hybrid device by clicking on File ->...
  • Page 13 3.2.3 The SIM Status window indicates the status of the SIM card inserted in the slot at the frontpanel of the GSM Hybrid. In order to make a call or receive an incoming call the status should be READY (green). In all other situations the SIM Status window displays an error code (red).
  • Page 14 The Call Status window defines four possible states: IDLE In the IDLE state nothing is happening and the GSM Hybrid waits for an incoming call or a call to be made. INCOMING CALL If there is an incoming call, the call status indicates ‘INCOMING’ in a green/white blinking way. The number field contains the number of the caller.

  • Page 15: Settings

    Settings Audio levels 3.3.1 The audio levels of the RECEIVE(output) and SEND(input) XLR connectors on the backpanel can be adjusted from the Settings menu. RECEIVE: This is the signal we receive from the caller and is feed to the XLR male output connector. Output volume can be adjusted from 0 –...

  • Page 16: Getting Started

    4 GETTING STARTED Hardware Setup 1. Connect the GSM Hybrid to your PC with the delivered USB cable. 2. Connect the SEND (balanced audio input XLR female) to a (preferable) balanced mixer output of around +4dBu. This output has to be the mix of all signals except the signal coming from the hybrid itself to avoid feedback. An Aux. output will do or in broadcast mixers a clean-feed is the best.

  • Page 17: Making Calls

    1. Make sure you have properly setup all hardware connections 2. Power the GSM Hybrid with the deliverd power supply (12VDC) and wait for the ON led to become stable green. 3. Start the GSM Hybrid Control Software (double click the icon on your desktop ).

  • Page 18: Specifications

    5 SPECIFICATIONS Audio Input (SEND) SEND Impedance 20k Ohm, electronically balanced Common mode rejection >40dB Maximum input level +22dBu Nominal input level +6 dBu Frequency response 50Hz – 7kHz Connectors XLR type 3 pin female Audio Output (RECEIVE) RECEIVE Impedance <...

  • Page 19: Dimensions

    7 SUMMARY We hope this manual has given you sufficient information to use this new GSM Hybrid in your studio. If you require more info please contact your local dealer or send us an email at mail@d-r.nl and we will answer your email within 24 hours during weekdays.

  • Page 20: Electromagnetic Compatibility

    8 ELECTROMAGNETIC COMPATIBILITY This unit conforms to the Product Specifications noted on the Declaration of Conformity. Operation is subject to the following two conditions: This device may not cause harmful interference • This device must accept any interference received, including interference that may cause undesired •...

  • Page 21: Product Safety

    10 PRODUCT SAFETY This product is manufactured with the highest standards and is double checked in our quality control department for reliability in the “HIGH VOLTAGE” section. 11 CAUTION Never remove any panels, or open this equipment. No user serviceable parts inside. Equipment power supply must be grounded at all times.
