SUNSHOWER SOLO

INSTALLATION MANUAL

Before installing the Sunshower read this installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunshower SOLO

Summary of Contents for Sunshower SOLO

  • Page 1: Installation Manual

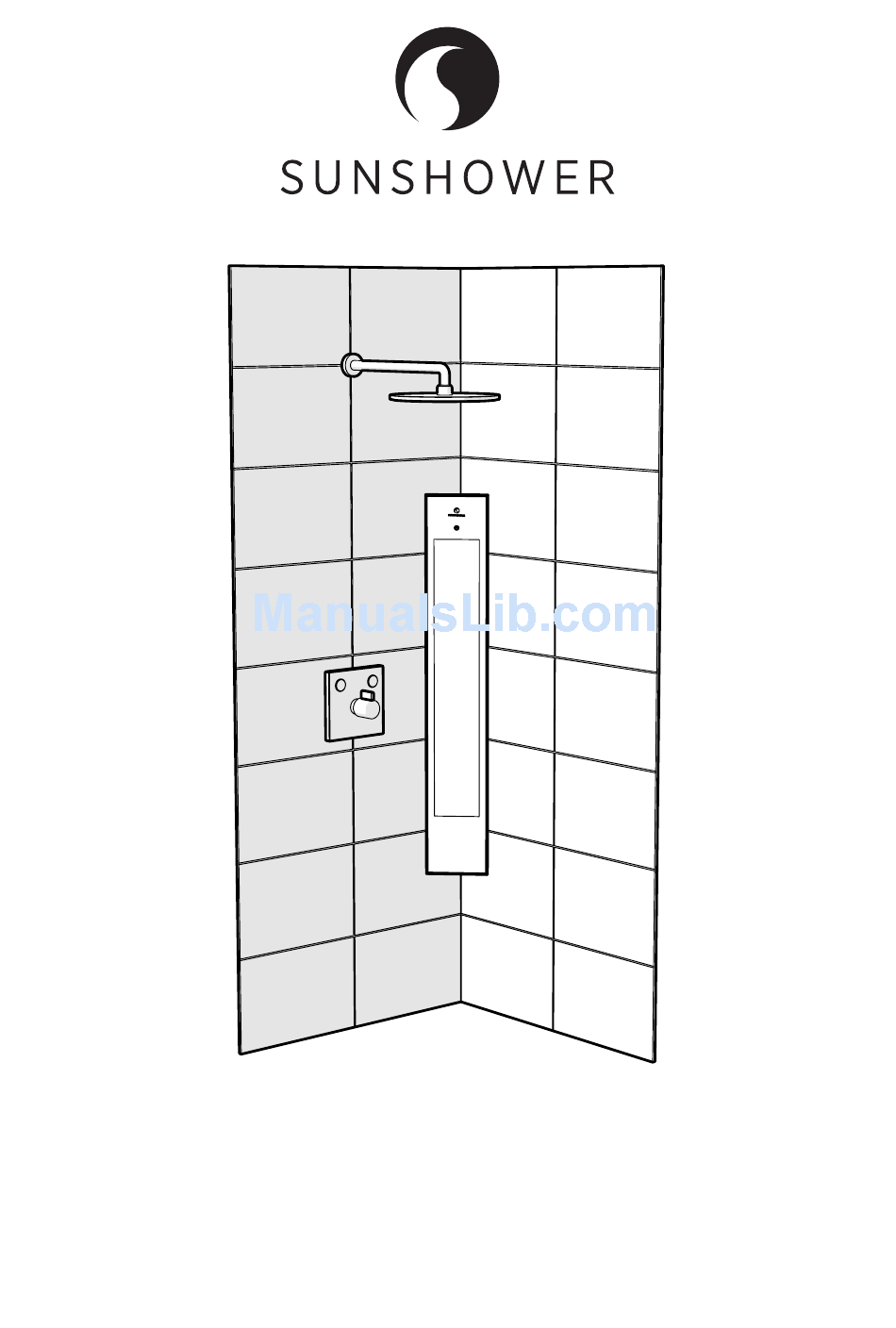

    SUNSHOWER SOLO INSTALLATION MANUAL Before installing the Sunshower read this installation manual...

  • Page 2: Contents Of The Package

    INTRODUCTION Congratulations with the purchase of your Sunshower Solo. With the Sunshower Solo you will enjoy the infrared light in your own bathroom! Infrared warmth is very comfortable, it stimulates the blood circulation and has a healing effect on your muscles and joints.

  • Page 3: Determine The Location

    1. DETERMINE THE LOCATION Distance from the glass pane to the heart of the showerhead. For a good result the distance between the glass pane of the Sunshower and the shower head should be about 40 cm. Determine the mounting height of the Sunshower Solo.
  • Page 4 2. PLACE THE BRACKETS Bottom bracket 1. Starting situation 2. Mark the bracket 3. Drill the holes 4. Place the plugs 5. Attach the bracket with the screws 1. Starting situation 2. Mark the bracket...
  • Page 5 3. Drill the holes Ø 6 4. Place the plugs 5. Attach the bracket with the screws...
  • Page 6 Mount the top bracket on the left or right wall 1. Starting situation 2. Mark the bracket 3. Drill the holes 4. Place the plugs 5. Attach the bracket with the screws 6. Fit the bolt 1. Starting situation 2. Mark the bracket 1000...
  • Page 7 3. Drill the hole Ø 6 4. Place the plug 5. Attach the bracket with the screw...
  • Page 8 6. Fit the bolt Screw the bolt as far as is depicted in the picture above.

  • Page 9: Connect The Electricity

    This is only possible in a bathroom to be renovated. The cable is out of sight. C. Connect the electricity in the bathroom The cable is visible. The Sunshower Solo has a cable of 4 meters. A. Connect the electricity in another room 1. Mark the hole 2.
  • Page 10 2. Drill the hole Ø 10 3. Bring the cable through the hole to the adjacent room Cable Adjacent room Wall Shower 4. Caulking the cable in the bathroom Caulking Make sure there is 60 cm cable between the wall and the Sunshower.
  • Page 11 2. Place the cable in the milled slot 3. After you have placed the tiles you seal the cable 4. Connect the Sunshower by using the cable socket 1. Mark the location the cable should come out of the wall 1000 Use a XMVK cable with a maximum outer diameter of Ø10 mm.
  • Page 12 Cable socket Own cable Make sure there is 60 cm of the cable between the wall and the Sunshower. Use 20 cm cable from the Sunshower and 40 cm of your own cable. The cable socket comes with an instruction manual. It describes how to connect the cable socket.
  • Page 13 C. Connect the electricity in the bathroom Use a cable conduit to guide the cable to the electrical connection point.
  • Page 14 4. INSTALL THE SUNSHOWER SOLO 1. Place the Sunshower Solo on the bottom bracket 2. Make sure the pins are in the holes 3. Tighten the bolt 4. Test if the Sunshower is working 1. Place the Sunshower Solo on the bottom bracket 2.
  • Page 15 3. Tighten the bolt Black cord Place the black cord in the V shape of the installation bracket.

  • Page 16: Technical Specifications

    4. Test if the Sunshower is working Press the on / off button until the infrared lamps and the fan starts. The LED on the on / off button will illuminate continuously. When the product is cooling the on / off button shows a flashing LED.
