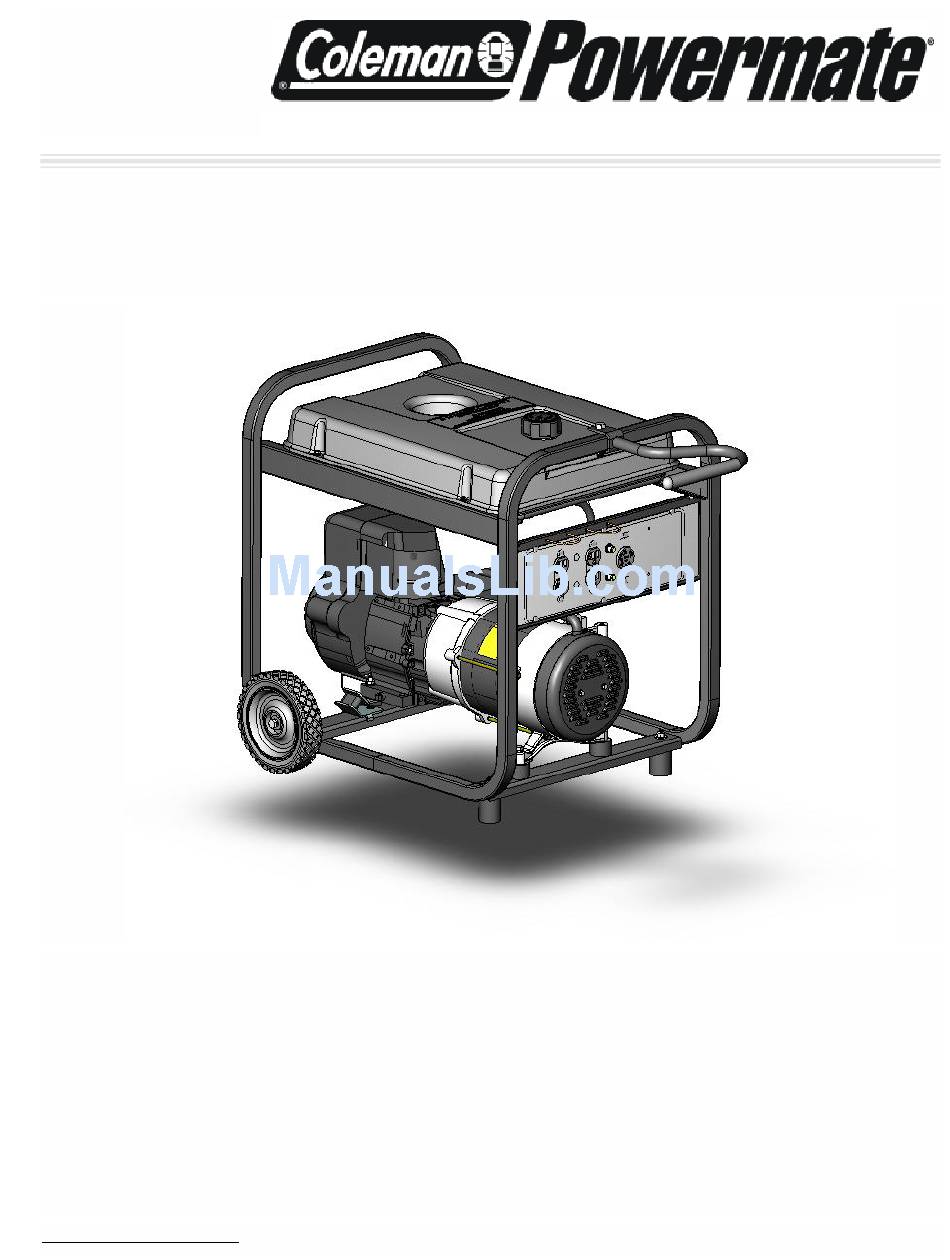

PM0525312.02 Insert Additif Adición ELECTRIC GENERATOR GROUPE ELECTROGENE GENERADOR ELECTRICO IMPORTANT – Please make certain that persons who are to use this equipment thoroughly read and understand these instructions and any additional instructions provided prior to operation. IMPORTANT - Prière de vous assurer que les personnes destinées à utiliser cet appareil ont pris soin d'en lire et d'en comprendre le mode d'emploi ou les directives avant de le mettre en marche.
Company within the warranty period. For warranty service: Call toll free 800-445-1805, or write to Powermate Corporation, Product Services, 4970 Airport Road, P. O. Box 6001, Kearney, NE 68848. EXCLUSIONS AND LIMITATIONS: THE COMPANY MAKES NO OTHER WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.
PORTABILITY KIT INSTALLATION TOOLS REQUIRED: 1/2”, 9/16", and 5/8” sockets and ratchets, block(s) of wood (minimum of 6” tall). Refer to the parts list on page 9. WHEEL INSTALLATION 1. Block up end of generator opposite the fuel tank cap to install wheel kit. 2.
120 volts. GARANTIE LIMITÉE Couverture limitée : Powermate Corporation (la compagnie) garantit au revendeur d'origine en Amérique du Nord qu'elle réparera ou remplacera, sans frais, toutes les pièces que la compagnie ou que son représentant du service autorisé auront déterminé...
L'INSTALLATION DE KIT DE TRANSPORT OUTILS NÉCESSAIRES : Cliquet à rochet de 1/2 po, 9/16 po, ET 5/8 po blocs de bois (minimum de 6 po (15,2 cm) de hauteur). Reportez-vous à la liste des pièces des page 9. INSTALLATION DES ROUES 1.
120 voltios. GARANTIA LIMITADA Cobertura de la garantía: Powermate Corporation (la Compañía) garantiza al cliente minorista original en América del Norte, que reparará o reemplazará, sin costo alguno, cualesquiera partes que la Compañía o cualquiera de sus representantes de servicio autorizados encuentren defectuosas en sus materiales o en su fabricación.
INSTALACION DEL JUEGO DE TRANSPORT HERRAMIENTAS NECESARIAS: Cubos y trinquetes de 1/2”, 9/16”, y 5/8” bloque(s) de madera, mínimo de 6” (15 cm) de alto. Consulte la lista de partes en las página 9. INSTALACIÓN DE LAS RUEDAS 1. Bloquee el extremo del generador situado en el lado opuesto a la tapa del tanque de combustible para instalar el juego de rueda.
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS Part Description Note A Engine, 10 hp Tecumseh 0057254 Nut hex flg 5/16-18 0051094 Isolator Note B Bolt hex 5/16-18 x 1.25 Note B Washer, lock 5/16 0049003 Bolt, hex 5/16-24 x 8.25 Note B Bolt, hex 5/16-24 x 1.25 0058933...
Page 10
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS Part Description 0063414 Generator head, Sumec 51A 0063223 Adapter, engine 51B 0063431 Rotor 51C 0063432 Stator 51D 0063227 Band, stator cover 51E 0063228 Bolt, M6 x 160 51F 0063229 Support, bearing 51G 0063230 Brush module 51H 0063231...
Page 11
Under no circumstances should an unqualified person attempt to wire into a utility circuit. Remarque A: Powermate Corporation ne fournit pas de moteurs dans ses pièces détachées. Les moteurs sont couverts par la garantie du fabricant de moteurs. Consulter le manuel du moteur inclus ou contacter notre département de service après-vente pour toute assistance.
