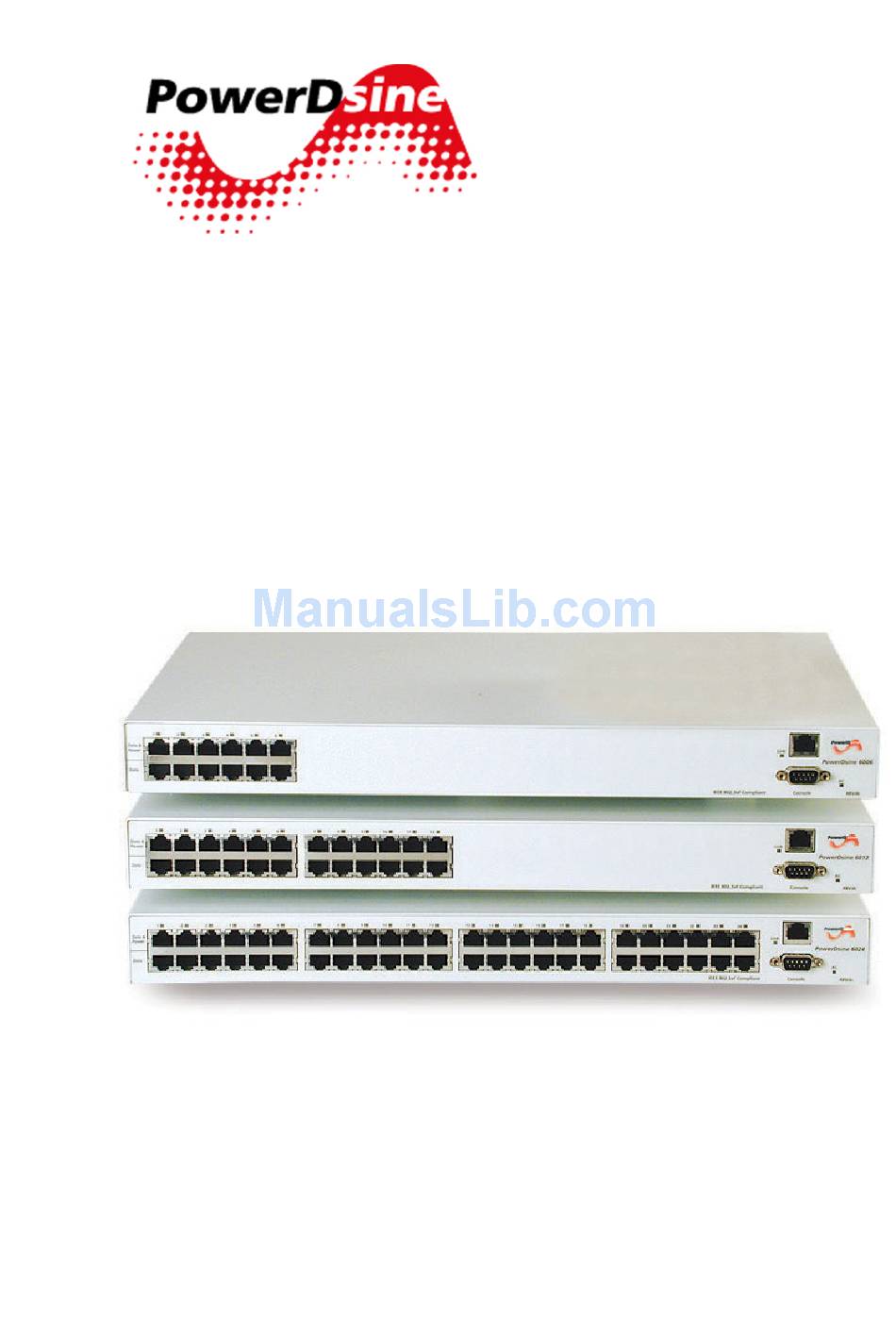

Data and Power on a Single Line
Power over LAN™ Midspans
PD-6006, PD-6012 & PD-6024
6/12/24-Port Models
IEEE 802.3af-compliant
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-6006 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerDsine PD-6006

  • Page 1 Data and Power on a Single Line Power over LAN™ Midspans PD-6006, PD-6012 & PD-6024 6/12/24-Port Models IEEE 802.3af-compliant User Guide...
  • Page 2 PowerDsine Ltd. reserves the right to make changes to products and to their specifications as described in this document, at any time, without prior notice. This material may not be photocopied or reproduced without permission.
  • Page 3: Table Of Contents

    ... 5 ... 7 LAN M IDSPAN ... 7 ... 8 ... 8 ... 8 ... 8 ... 9 ... 11 LAN M IDSPAN ... 11 ... 11 ... 12 ... 12 ... 12 ... 13 PD-6006/12/24 Cat. No.: 06-6800-056...
  • Page 4 UL/cUL per EN60950 GS mark per EN60950 CE Marking The CE marking on this product indicates that this product is in compliance with 89/336/EEC (EMC Directive) and 73/23/EEC (Low Voltage Directive). Power over LAN Solutions PD-60xx/yyyy/M Serial Number PD-6006/12/24 Cat. No.: 06-6800-056...
  • Page 5: Safety Information

    The Power over LAN Midspan "Data" and "Data + Power" ports are shielded RJ-45 data sockets. They cannot be used as Plain Old Telephone Service (POTS) telephone sockets. Only RJ-45 data connectors may be connected to these sockets. Power over LAN Solutions PD-6006/12/24 Cat. No.: 06-6800-056...
  • Page 6: Power Cord

    Neutral, connected directly to ground. U.K. only: The Power over LAN Midspan is covered by General connection to a public telecommunications system. Power over LAN Solutions No. 18 AWG Type SV or SJ Three-conductor. Approval, NS/G/12345/J/100003, PD-6006/12/24 indirect Cat. No.: 06-6800-056...

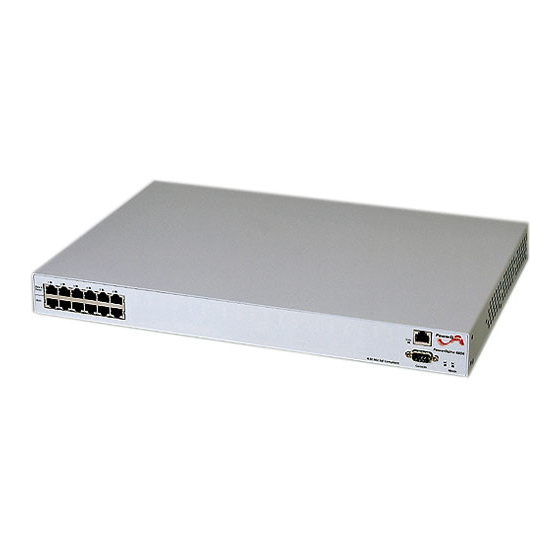

  • Page 7: About The Power Over Lan Midspan

    2 About the Power over LAN Midspan PowerDsine’s family of Power over LAN Midspans, series 6000, injects power over data-carrying Ethernet cabling. The PD-6006/6012/6024 Midspans, support 6, 12 and 24 ports respectively in a 10/100BaseTx Ethernet network, over TIA/EIA-568 Category 5/5e/6 cabling. DC operating power, for data terminal units, is fed over unused pairs of the cabling (7/8 and 4/5).
  • Page 8: 10/100Base-Tx Ports Definition

    The Power over LAN Midspan is not a repeater. As such, the maximum distance from the Ethernet switch is not to exceed 100 meters (328 ft). In accordance with the IEEE 802.3 standard, the Power over LAN Midspan is guaranteed to work up to this distance.
  • Page 9: Port Indications

    All ports are disconnected. Indicates DC DC input voltage is within power input tolerance. active. DC Input voltage All ports are disconnected. is out of tolerance. Internal problem Built in Test (BIT) failed. alarm. PD-6006/12/24 Remarks Cat. No.: 06-6800-056...
  • Page 10: Connectors

    Ethernet Switch Data Data Data RJ-45 Data PD-6006/12/24 Port Voltage Power to the port is disconnected.No DC voltage present on spare pairs. Continuous nominal DC voltage is present on the spare pairs. Power to the port is disconnected. No DC voltage is present on the spare pairs.
  • Page 11: Installing The Power Over Lan Midspan

    As shown in Figure 3-1, the Midspan is connected in series to an Ethernet switch/hub. The data outputs from the switch are connected to the Midspan. The Midspan delivers power over spare twisted pairs (pins 7/8 and pins 4/5) of the Category 5 cabling, without degrading the quality of data communications.
  • Page 12: Connecting Ethernet Cables

    Powering up The Power over LAN Midspan has no on/off switch. To apply or remove power to the Midspan, insert or remove the power cable from the receptacle(AC and/or DC) on the rear panel of the unit.
  • Page 13: Troubleshooting Guide

    Check that the link is 100 m or less. Try to re-connect the same end device into a different port on the same unit or into different unit – if it works, there is probably a faulty port or RJ-45 connection. PD-6006/12/24 Cat. No.: 06-6800-056...
  • Page 14: Technical Specifications

    4 kg (8.8 lb) 0 to 40 °C (32 to 104 °F) -20 to 70 °C (-4 to 158 °F) 10 to 90% (non-condensing) PD-6006 90 to 264 VAC at 47-63 Hz 46 to 57 VDC 92 W max. 200 W max.
  • Page 15: Remote Power Management

    4 Remote Power Management SNMP Remote Management is an optional feature, for monitoring and control of the device. For further details, refer to PowerDsine’s PowerView, Power over LAN™ SNMP Web Manager User Guide, catalog number 06-6910-056. PowerView manages Midspans via an Web Manager or via a remote Network Management station, using Java applets.
  • Page 16 Covered under US Patent 6,473,608 Visit our web site at: www.powerdsine.com For technical support, call: +972-9-7755123 In the USA: +631-756-4680 or 1-877-4-802-3AF Part Number: 06-6800-056 Release 1.0...
