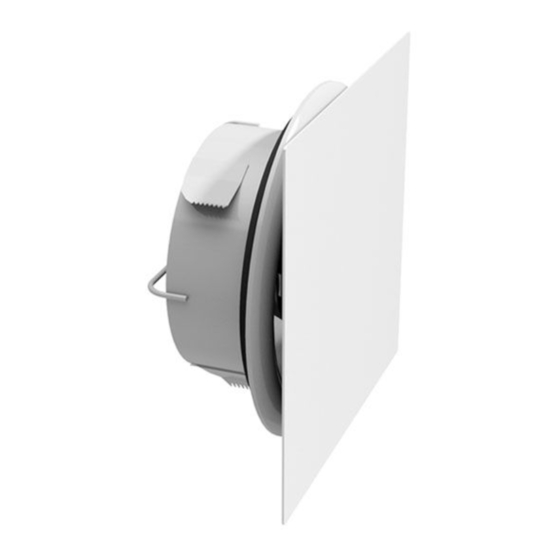

- Page 1 l inda b | we si mpli fy c onst r uction LindabAiry Supply and exhaust valve Assembly instructions...

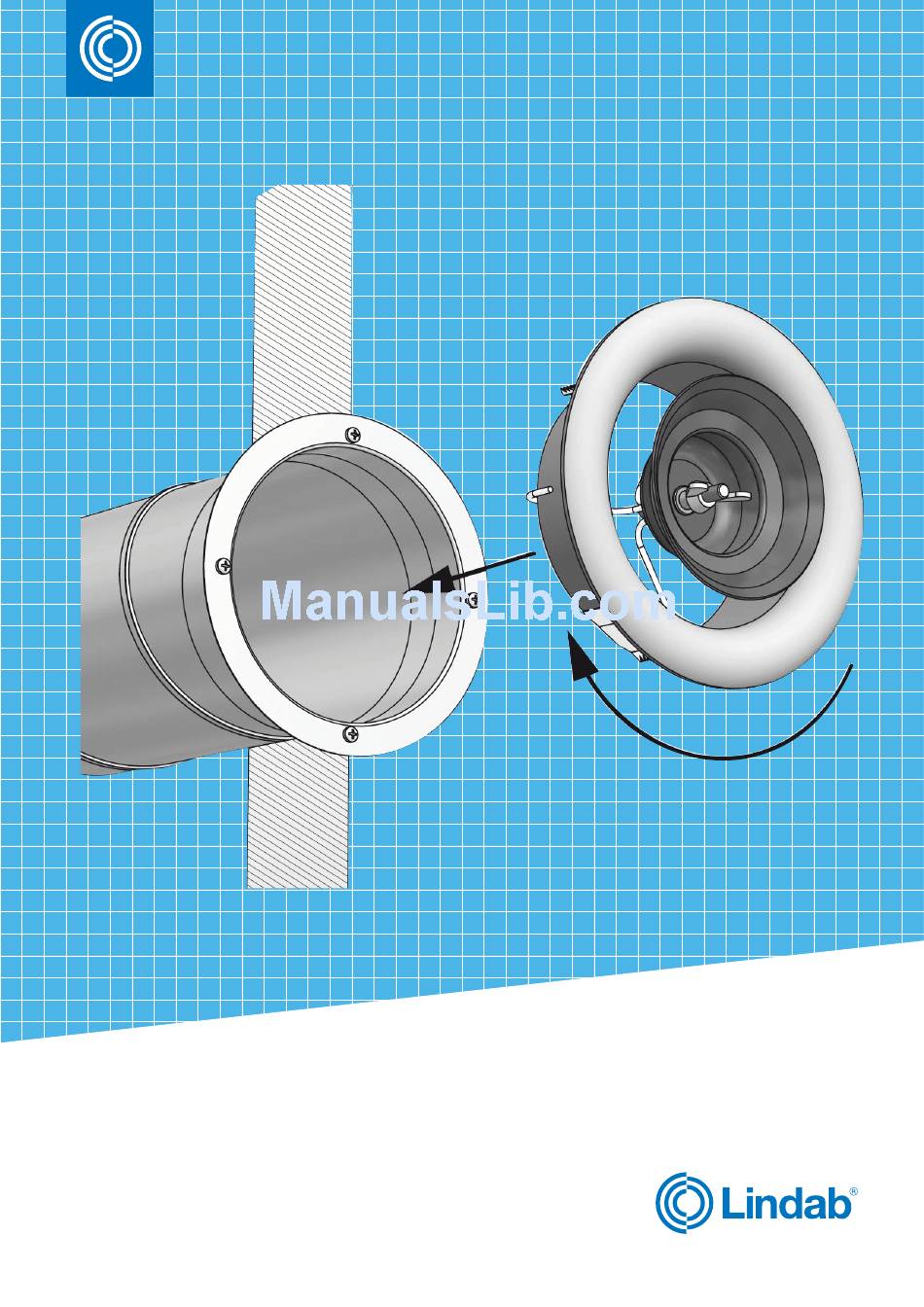

- Page 2 Mounting of valve The valve is equipped with flexible spring wings intended to fit in sheet metal fittings. It is recommended that the valve is mounted in the frame ILVRU. The product will also fit in the valve frames VRGU, VRGM, VRFU, VRFM and BU GJUT and TCPU GJUT. The valve body has to cover the brim of the product it is fitted into.
- Page 3 Mounting of front plate 1. If the valve needs to be balanced do so otherwise lock the cone’s position by locking the wingnut on the threaded rod against the cone. 2. Attach the front plate of your choice onto the cone by clicking the springs into the cone. Balancing Preparation 1.
- Page 4 Method 1: Using a flow hood 1. Place the flow hood over the valve and notice the air flow on the display. 2. Rotate the front plate to adjust the air flow. Place the flow hood over the valve and notice the air flow on the display.
- Page 5 Completion 1. Remove the front plate and tighten the wing nut. 2. Mount the front plate. Maintenance To clean the valve remove the front plate and clean it with a mild detergent or a wet cloth. Make sure not to change the cone’s position while cleaning the valve.
- Page 6 At Lindab, good thinking is a philosophy that gui- des us in everything we do. We have made it our mission to create a healthy indoor climate – and to simplify the construction of sustainable buil- dings. We do that by designing innovative pro- ducts and solutions that are easy to use, as well as offering efficient availability and logistics.
