Poulan Pro PR17H42STF Owner's Manual

Poulan Pro PR17H42STF Owner's Manual

Poulan pro lawn mower user manual
Hide thumbs Also See for PR17H42STF:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
MANUAL
DO NOT THROW AWAY
OWNER'S
MANUAL

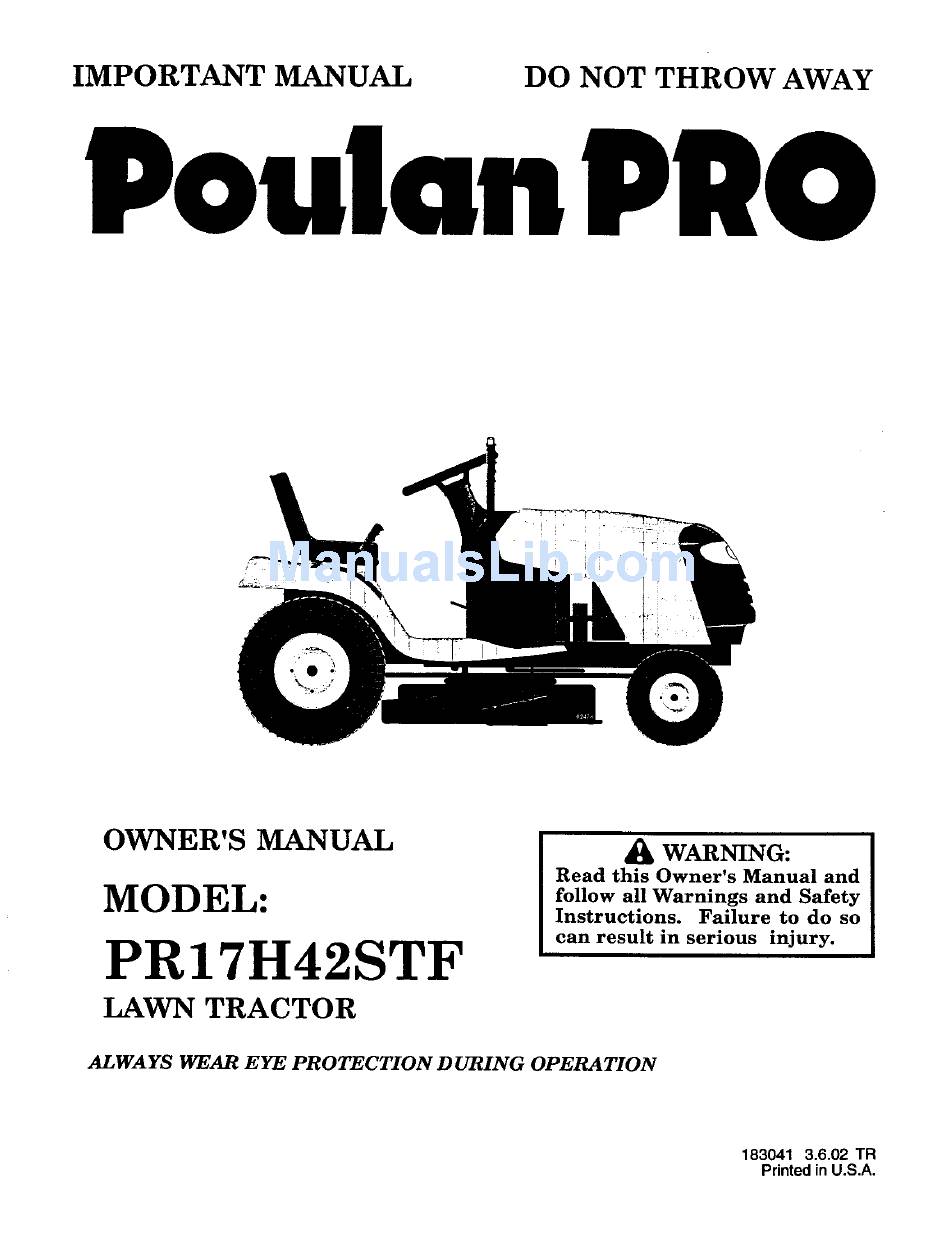

MODEL:
PR17H42STF
LAWN TRACTOR
WARNING:
Read
this
Owner's
Manual
and
follow
all Warnings
and
Safety
Instructions.
Failure
to do so
can
result
in serious
injury.
ALWAYS
WEAR
EYE
PROTECTION
DURING
OPERATION
183041
3.6.02 TR
Printed in U.S.A.
