Poulan Pro PO1538A Owner's Manual

Poulan Pro PO1538A Owner's Manual

15 hp 38 inch lawn tractor
Hide thumbs Also See for PO1538A:

Advertisement

Quick Links

Download this manual

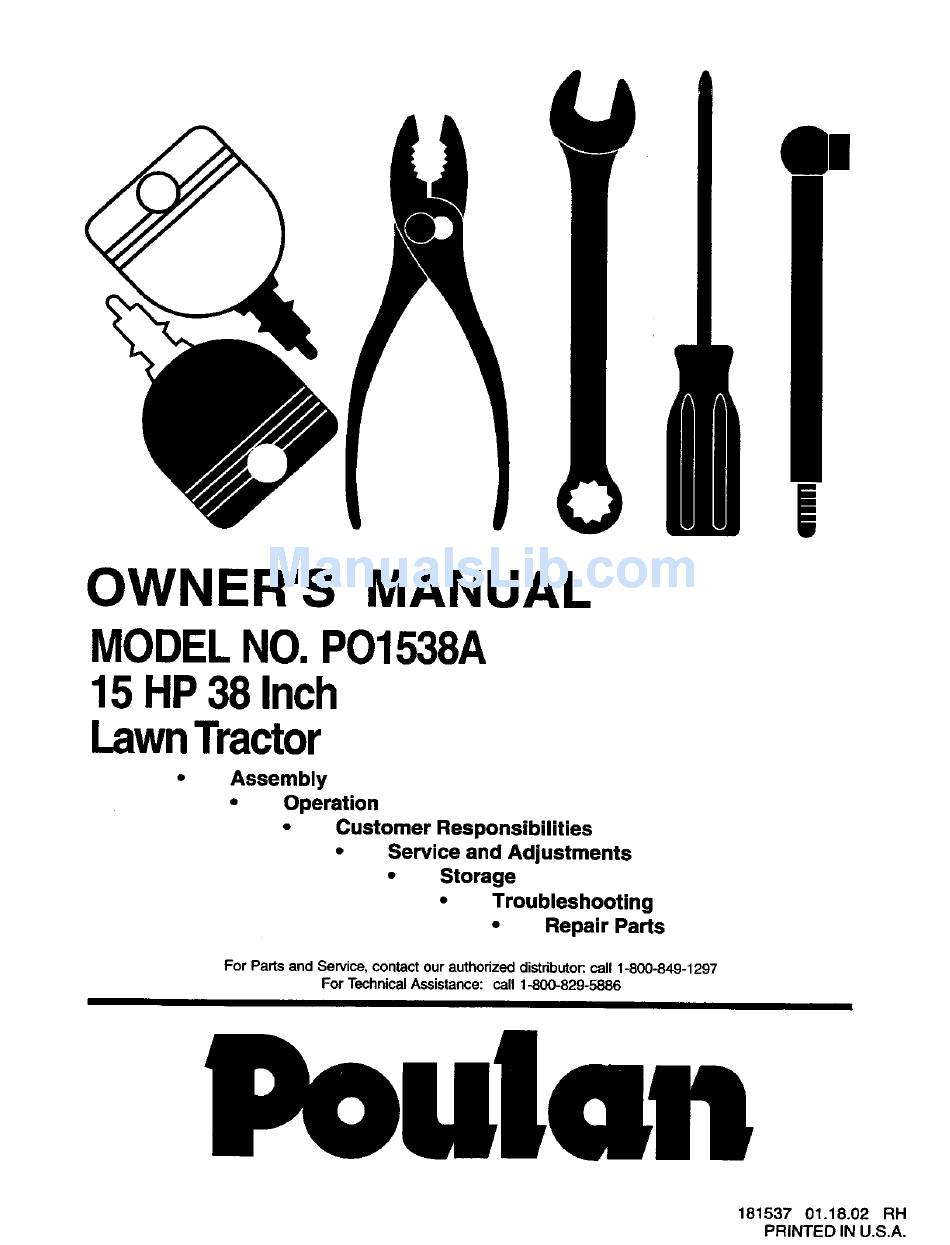

OWNER'S
MANUAL
MODELNO. PO1538A
15 HP 38 Inch
LawnTractor
•
Assembly
•
Operation
Customer
Responsibilities
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
Repair Parts
For Pads and Service, contact our authorized distributor:, c all 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
|
181537
01.18.02
RH
PRINTED IN U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PO1538A and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro PO1538A

Summary of Contents for Poulan Pro PO1538A

  • Page 1 OWNER'S MODELNO. PO1538A 15 HP 38 Inch LawnTractor • Assembly • Operation Customer • For Pads and Service, contact our authorized distributor:, c all 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 MANUAL Responsibilities Service and Adjustments • Storage • Troubleshooting •...

  • Page 2: Safety Rules

    IMPORTANT: THIS CUTTING iVIACHINE IS CAPABLE FAILURE TO OBSERVE THE FOLLOWING I. GENERAL OPERATION • Reed, understand,andfollowall instructions inthe manual and on the machine before starting. • Only allow responsible adults, who are familiar with the instructions,to operate the machine. •...
  • Page 3 Safe Operation • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. Never carry passengers or children even with the blades off. Do not mow in reverse unless absolutely necessary. Al- ways look down and behind before and while backing.

  • Page 4: Specifications

    PRODUCT SPECIFICATIONS GASOLINE CAPACITY 1.25 GALLONS ANDTYPE: UNLEADED REGULAR OILTYPE (API-SF-SJ): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: 3 PINTS ;PARK PLUG: CHAMPION RJ19LM CAP: .030") GROUND SPEED (MPH): FORWARD: REVERSE: TIRE PRESSURE: FRONT: REAR: CHARGING SYSTEM: 3 AMPS BATTERY 5 AMPS HEADLIGHTS BATTERY:...
  • Page 5 UNASSEMBLED Steering Wheel Steering Wheel Insert Steering Extension Shaft Steering Wheel Adapter (1) Large Flat Washer 5116-18 x 1-1/4 PARTS Steering Boot (1) Hex Bolt 3/8-1 6 x 1 (1) Lockwasher (1) Locknut 5/16-18 Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Lock Washer (1) Bolt...
  • Page 6 Your newtractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY...
  • Page 7 HOW TO SET UP YOUR TRACTOR (See Fig. 2) CHECK BATTERY • Lift seat pan to raised position. • If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY"...
  • Page 8 TO DRIVE TRACTOR OFF SKID (See Opera- tion section, page 10, for location tion of controls) AWARNING: Before starting, read, understand and follow all instructions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in trent of tractor is clear of other people and objects.

  • Page 9: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR WARNING ENG,NEON ENG,NEOFF FUEL CHOKE R N H L ATTACHMENT REVERSE CLUTCH ENGAGED ATTACHMENT IGNITION CLUTCH DISENGAGED DANGER, KEEP HANDS AND FEET AWAY OPERATION REVERSE FORWARD...

  • Page 10: Know Your Tractor

    KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL Compare the illustrations with your tractorto familiarize yourself with the locations ofvariouscontrols and adjustments. Save this manual for future reference. THROTTL_CHOKE CLUTCH_RAKE PEDAL, GEARSHIFT LEVER Our tractors conform to the safety standards of the American National Standards Institute. ATTACHMENT.
  • Page 11 HOW TO USE YOUR TRACTOR TO SET PARKING BRAKE (See Fig. 5) You r tractor isequipped with an operator presence sensing switch. When engine is running, any attempt by the operator to leave the seat without first setting the parking brake will shut off the engine.

  • Page 12: Before Starting The Engine

    (See Fig. 6) TO OPERATE MOWER You rtractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. • Select desired height of cut.

  • Page 13: Mowing Tips

    (See Fig. 5) TO START ENGINE When starting the engine for the first time or ifthe engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine. Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

  • Page 14: General Recommendations

    CUSTOMER FILL IN DATES As YOO COMPLETE R EGU LAR SERVICE Check Brake Operation Check "Rre Pressure Check Operator Presence Interlock Systems Check for Loose Fasteners Lubrication Chart Check Battery Level Sharpen/Replace Mower Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level...

  • Page 15: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES TRACTOR Always observe safety rules when performing any mainte- nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual).
  • Page 16 CUSTOMER BATTERY Your tractor has a battery charging system which is suffi- cient for normal use, However, pededic charging of the battery with an automotive charger will extend its life. • Keep battery and terminals clean. • Keep battery bolts tight. •...
  • Page 17 CUSTOMER CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine damage from overheating. Clean with a wire brush or compressed airto remove dirt and stubborn dried gum fibers. (See Fig. 12) ENGINE COOLING FINS Remove any dust, dirt or oil from engine cooling fins to prevent engine damage from overheating.

  • Page 18: Spark Plugs

    CUSTOMER MUFFLER Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage. SPARK PLUGS Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first.

  • Page 19: Service And Adjustments

    SERVICE AND ADJUSTMENTS CAUTION: BEFORE PERFORMING ANYSERVICE Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. • Place attachment clutch in "DISENGAGED" • Turn ignition key "OFF" and remove key. • Make sure the blades and all moving parts have completely stopped. •...
  • Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See "PROD- UCT SPECIFICATIONS" section of this manual). Iftiresare over or underinflated, you will not properly adjust your mower.
  • Page 21 SERVICE AND ADJUSTMENTS R.H. SUSPENSION MANDREL RETAINER ;PRING MANDREL PULLEY FIG. 20 (See Fig. 21) TO ADJUST BRAKE Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle. Iftractor requires more than six (6) feet stopping distance at high speed in highest gear on a level dry concrete or paved surface, then brake must be adjusted.
  • Page 22 SERVICE AND ADJUSTMENTS TO START ENGINE WITH A WEAK BATTERY (See Fig. 24) CAUTION: Lead-acid batteries generate explosive gases. Keep sparks, flame and smoking materials away from bat- teries. Always wear eye protection when around batteries. If your battery is too weak to start the engine, it should be recharged.
  • Page 23 SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB • Raise hood. • Pull bulb holder out of the hole in the backside of the grill. • Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. •...

  • Page 24: Storage

    Immediately prepare your tractor for storage at the end ofthe season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.

  • Page 25: Troubleshooting

    TROUBLESHOOTING CAUSE PROBLEM Will not start Out of fuel. Engine not "CHOKED" Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.

  • Page 26: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut- uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel.
  • Page 27 TRACTOR - - MODEL NUMBER PO1538A, PRODUCT SCHEMATIC !++; w.,_ IGNITION SWITCH _/" IGNITION SWITCH PosmoN CIRCUIT "MAKE" M+G+A1 NONE RUN/UGHT 8+A1 A2+L B+A1 NONE START 3 + S + A1 NONE ÷ I BATFERY FUSE ' Q-_:-- SOLENOID CLUTCH / BRAKE (PEDAL UP) i...

  • Page 28: Repair Parts

    REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT ELECTRICAL NUMBER 954 56 82-74...
  • Page 29 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT ELECTRICAL NOTE: All component dimensions given in U. S. PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20unc X 3/4 176689 Box Battery 176138 Switch Interlock 175685 Harness Asm Light W/4152j...
  • Page 30 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74 CHASSIS _t 5 •...
  • Page 31 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, CHASSIS NOTE: All component dimensions given in U.S. inches PRODUCT NUMBER PART DESCRIPTION 174620 Chassis 176554 Drawbar, Stretch 17060612 Screw 3/8-16 x 3/4 155272 Bumper, Hood/Dash 174643X013 Saddle Silk,screen 155138 Clip Retainer Slide-On...
  • Page 32 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74 DRIVE 35 36...
  • Page 33 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT DRIVE PART DESCRIPTION Transaxle Peedess MOde1205-544C (Order parts from transaxle manufacturer) 146682 Spring Return Brake 123666X Pulley Transaxle 18"tires 12000028 Ring Retainer # 5100-62 121520X Strap Torque 30 Degrees RH 17060512...
  • Page 34 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT STEERING • ,r"-""-_ NUMBER 954 56 82-74...
  • Page 35 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, STEERING NOTE: PRODUCT PART DESCRIPTION 133741X428 Wheel Steering 175234 Axle Asm 169840 Spindle Asm LH 169839 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga...

  • Page 36: Optional Equipment

    REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74 ENGINE ',', -_.-" 6;-" OPTIONAL EQUIPMENT Spark Arrester...
  • Page 37 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT ENGINE NOTE: PART DESCRIPTION 170551 Control Th/ch Flag 1772O408 Screw Hex Thd Cut 1/4-20 _(1/2 Engine, B&S 28U707 (Order parts from engine manufacturer) 137352 Muffler Exhaust B&S 165291 Gasket Eng 1 313 Id Tin Plated...
  • Page 38 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74 SEAT PART DESCRIPTION 127426X Seat 140551 Bracket Seat Pivot 71110616 Bolt Hex 3/8 - 16 X 1 19131610 Washer 13/32 X 1 X10Ga. 145006 Clip Push-In Hinged...

  • Page 39: Wheels And Tires

    REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT DECALS PART DESCRIPTION 181251 Decal, Clutch/Brake Eng/Fr 180972 Decal, Engine HP 170563 Decal Warning 157140 Decal, Fender Danger English 158168 Decal Ins Str Wh 17220O Decal, Fender 5 Sp. 158166 Decal Fender...

  • Page 40: Mower Lift

    REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT MOWER LIFT NUMBER 954 56 82-74 161718...
  • Page 41 REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT MOWER LIFT NOTE: PART DESCRIPTION 15946O Wire Asm Inner/Sprg w/plunger 159471 Shaft Asm Lift RH 105767X Pin Groove I 500 Zinc 12000002 E Ring #5133-62 19211621 Washer 21/32 X 1 X 21 Ga...

  • Page 42: Mower Deck

    REPAIR PARTS TRACTOR - - MODEL NUMBER PO1538A, PRODUCT NUMBER 954 56 82-74 MOWER DECK 21_T...

  • Page 43: Repair Parts

    Pulley, Idler, Flat 73680600 Nut, Crownlock 3/8-16 Unc 44971-1 Retainer 130840 Brake Assembly 133943 Washer, Hardened 133840 Idler Arm Assembly PO1538A, PRODUCT NUMBER 954 56 82-74 PART DESCRIPTION 165723 Spacer, Retainer Knob 106932X 144200 V-Belt, 42" Mower 76020312 Pin, Cotter 3/32 x 3/4...

  • Page 44: Service Notes

    SERVICE NOTES...

  • Page 45: Limited Warranty

    The Manufacturer warrants to the odginal consumer pumhaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date ot purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.

  • Page 46: Warranty

    TECUMSEI4 Issued January 1980 Revised January 1991 NEW PEERLESS Peerless Gear and Machine contained below, will, at its option, Component (which as used herein drives, and any part of the Power Train Component), used for commercial or rental purposes, by Tecumseh's factory in Grafton, Tecumseh...
  • Page 47 SUGGESTED GUIDE FOR SIGHTING ,,,,,,= WARNING: To avoid serious down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. tipping or loss of control. changing direction 1. Fold this page along dotted line indicated 2.
  • Page 48 Poulan...
