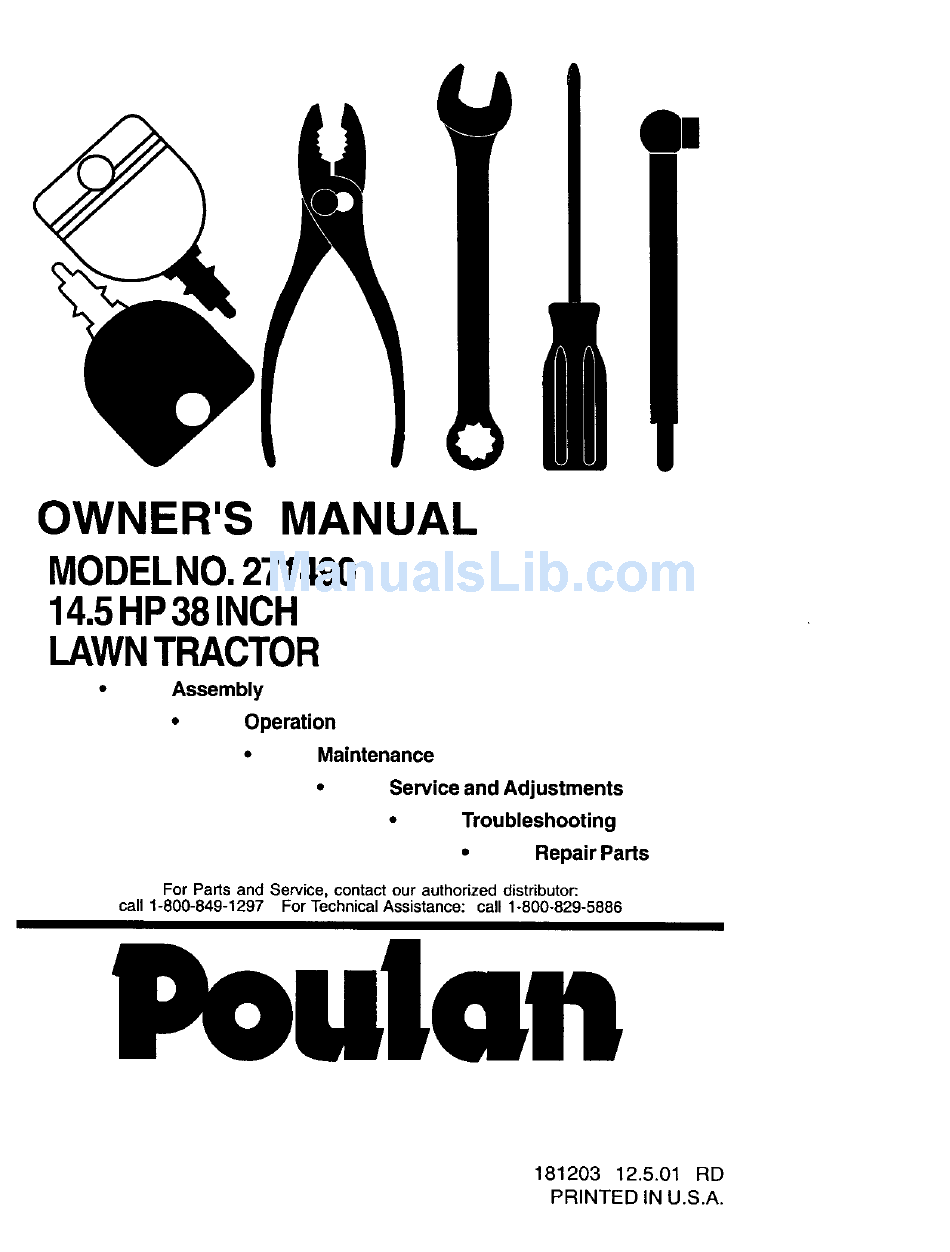

OWNER'S
MANUAL
MODELNO. 271490
14.5 HP38 INCH
LAWNTRACTOR
•
Assembly
•
Operation
Maintenance
•
Service and Adjustments
•
Troubleshooting
•
Repair Parts
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297
For Technical Assistance:
call 1-800-829-5886
181203
12.5.01
RD
PRINTED
IN U.S.A.
