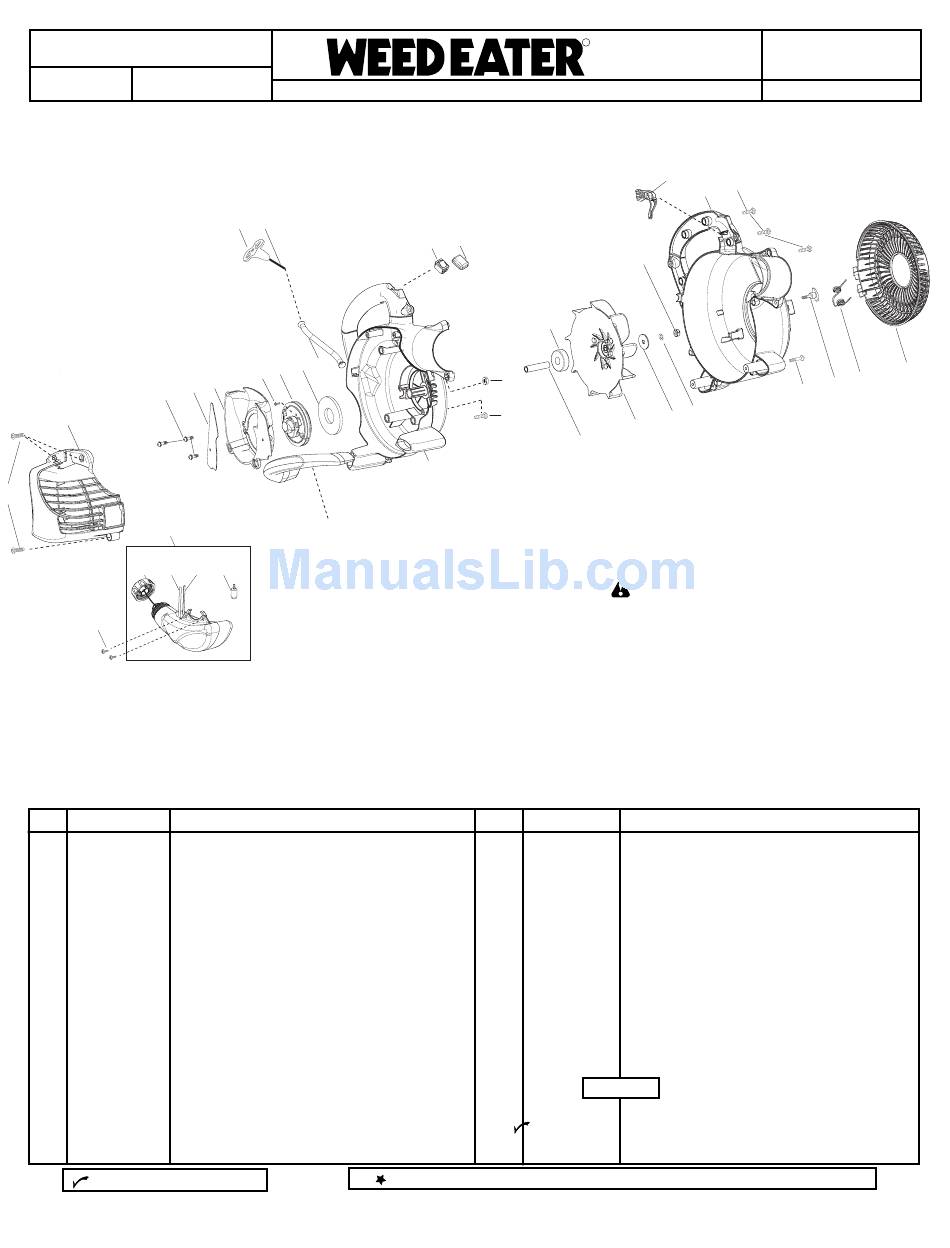

Weed Eater VS2000BV Parts List

Parts List No.
545103465
Replaces
Date
4/22/09
545103465 - 3/27/09
3
2
1
31
35 34
36
Ref. Part No.
1. 530015814
2. 545135806
3. 530015880
4. 545134001
5. 545099101
6. 530016391
7. 545081852
8. 530042086
9. 545107101
10. 530054834
11. 545081833
12. 545081830
13. 545128201
14. 545099001
15. 530626605
16. 545113801
17. 545134101
18. 530015814
19. 545100801
20. 545115601
21. 545144501
= New Part Number For This IPL
NOTE : Illustration may differ from actual model due to design changes.
10 11
9
8
7
6
5
4
30
33 32
Description
Screw
Assy - Engine Cover
Screw
Shield - Baffle
Baffle
Screw
Kit - Starter Pulley
Spring - Starter
Tube - Starter Rope
Handle - starter
Kit - Rope
Kit - Switch (momentary) (Incl. 13)
Protector - Switch
Bearing
Nut
Trigger - Throttle
Assy - Scroll LH (Incl. 19,20)
Screw
Door- Vac
Spring - Vac Door
Knob - Blower
12 13
14
27
28
29
Ref. Part No.
22. 530016406
23. 530092322
24. 545109901
25. 545113601
26. 545113701
27. 530015197
28. 530015810
29. 545161601
30. 545101201
31. 545100401
32. 530095646
33. 530069247
34. 530069216
35. 530057973
36. 530016445
545146904
527290301
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
R
PARTS LIST
16
18
17
15
23
24
25
26
WARNING
All repairs, adjustments and
maintenance not described in
the Operator's Manual must be
performed by Qualified Service
Personnel.
Description
Screw - Handle Vac
Washer - Lock
Washer - Impeller
Assy-Impeller
Spacer - Flywheel
Nut
Screw
Assy-Scroll Assy. RH (Incl. 14)
Handle - Vac
Assy - Fuel Tank (Incl. 32,33,34,35)
Assy - Fuel Pickup
Kit - Fuel Line (carb/purge)
Kit - Fuel Line (tank/purge)
Assy - Fuel Cap w/retainer
Screw - Fuel Tank Retainer
Not Shown
Manual
Decal - Warning
MODEL
VS2000BV
Page: 1
19
20
21
22
