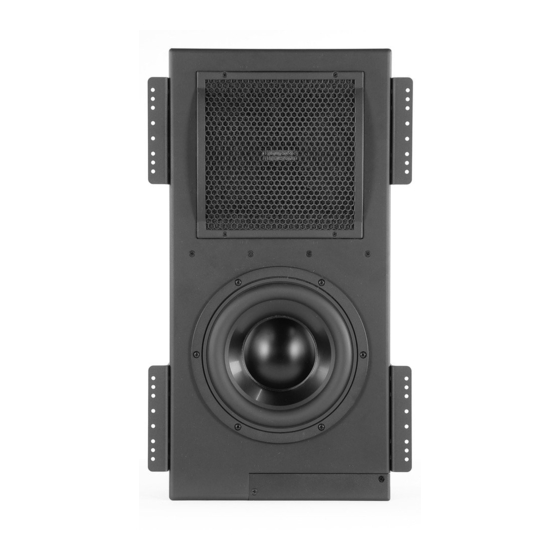

Wisdom Sage Cinema Point 2 Owner's Manual

Planar magnetic hybrid loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Sage Cinema Point 2
Planar Magnetic Hybrid
Loudspeaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sage Cinema Point 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisdom Sage Cinema Point 2

Summary of Contents for Wisdom Sage Cinema Point 2

  • Page 1 Owner’s Manual Sage Cinema Point 2 Planar Magnetic Hybrid Loudspeaker...

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................4 About this manual ....................4 Description .....................5 Planar magnetic panels ..................5 Free from compression..................5 More reliable ....................5 Easy on amplifiers ...................6 Dynamic woofers....................6 Active Crossover ....................6 Passive Crossover ....................6 Unpacking the Point 2 ..................8 Remote Setup via Modem ..................8 Mounting the Point 2 ..................9 Controlled Directivity ....................9 The Importance of a Baffle Wall ................10...

  • Page 4: Introduction

    SC-1 System Controller, without which these speakers will not perform correctly. While we expect your local Wisdom Audio dealer to take care of the setup and calibration of the system, we still recommend that you at least briefly review this and the other manuals (SC-1, SA-series amplifiers) to understand the system’s full...

  • Page 5: Description

    Description Your Sage Cinema loudspeakers take advantage of several critical technologies to deliver a level of performance that has never been available in a loudspeaker that intrudes so modestly on your living space. In fact, this level of performance has rarely been attained, regardless of the space and budget at one’s disposal. Since most of these technologies cannot readily be found elsewhere, we will take the time to describe them in more detail than would be necessary for more conventional designs.

  • Page 6: Easy On Amplifiers

    Your Sage Cinema Point 2 is such a speaker, designed to enable the use of separate amplifiers for the woofer and the planar sections of each loudspeaker.
  • Page 7 ready to be used in this passive configuration, reducing the number of amplifier channels required. This passive crossover divides the frequencies within the speaker itself, rather than in the SC-1. Premium components such as heavy gauge, air-core inductors and film bypass capacitors were selected through extensive blind listening tests to make the most of the passive design.

  • Page 8: Unpacking The Point 2

    Unpacking the Point 2 The Wisdom Audio Sage Cinema Point 2 speaker is a substantial piece of equip- ment. Please exercise caution when unpacking your Point 2 to ensure that you do not strain yourself from its (perhaps unexpected) weight.

  • Page 9: Mounting The Point 2

    Mounting the Point 2 The Sage Cinema Point 2 is designed to take advantage of hidden installations in which it will be located either behind an acoustically-transparent screen or behind stretched fabric. It may be mounted either as an in-wall or as an on-wall speaker, or in/on the ceiling.

  • Page 10: The Importance Of A Baffle Wall

    By removing the plate in which the PMD is mounted, you expose a new surface to which the PMD may be mounted at a 22.5° angle. This angled surface may also be rotated in 90° increments. For example, think of a situation in which the Point 2 is being used unusually high on the wall.
  • Page 11 Use specially-designed dry wall, such as Quiet Rock. Quiet Rock is a specialized form of sheet rock which has some con- strained-layer damping built into each sheet. More information at http://www.quietrock.com Consider using double-wall construction with a flexible adhesive layer. The best-known of these products is Green Glue;...

  • Page 12: Making The Point 2 Connections

    Point 2. Leave the other “High Pass” connectors alone and unconnected. If you connect to the wrong terminals, you will get no sound from the speaker. For even greater performance, you can use the Sage Cinema Point 2 in a biam- Active (Biamped) plified mode that completely bypasses the internal passive crossover.
  • Page 13 SC-1; following the SC-1, the signal is split into low and high sections, with the low section going to one or more Wisdom Audio SA-series amplifiers, and the high section going to additional SA-series amplifiers, which will drive the planar magnetic panels.

  • Page 14: Optimizing The System

    Optimizing the System A Wisdom Audio loudspeaker system is just that: a system, designed to provide the highest calibre of performance, in the widest variety of possible settings. As such, simply connecting all the wires does not mean the system is optimized.

  • Page 15: Care & Maintenance

    Care & Maintenance To remove dust from the cabinet of your Point 2, use a feather duster or a lint- free soft cloth. To remove stubborn dirt and fingerprints, we recommend isopro- pyl alcohol and a soft cloth. Lightly dampen the cloth with alcohol first and then clean the surface of the Point 2 with the cloth.

  • Page 16: North American Warranty

    The warranty will not apply to any Wisdom Audio loudspeaker that has been misused, abused, al- tered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer.

  • Page 17: Obtaining Service

    If the packaging to protect the unit is, in our opinion or that of our dealer, inade- quate to protect the unit, we reserve the right to repackage it for return shipment at the owner’s expense. Neither Wisdom Audio nor your dealer can be respon- sible for shipping damage due to improper (that is, non-original) packaging.

  • Page 18: Specifications

    31 lbs. (14.1 kg) ■ Shipping weight, each 25 lbs. (11.3 kg) ■ Net weight, each For more information, see your Wisdom Audio dealer, or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 www.wisdomaudio.com information@wisdomaudio.com Ph: 775.887.8850...

  • Page 19: Point 2 Dimensions

    Point 2 Dimensions...
  • Page 20 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA Telephone: 775.887.8850 Fax: 775.887.8820 Point 2OM v.1.0 © 8/2016 Wisdom Audio, Inc. All rights reserved. Made in the U.S.A.

This manual is also suitable for:

Sage cinema point 3
