Poulan Pro 545192174 Parts List

Parts List No.
545192174
Replaces
Date
4/15/09
545192174 - 4/01/09
1
2
3
4
5
6
Ref. Part No.
1. 545191801 Assy-Switch Wire
2. 545187602 Housing-Throttle (RH)
3. 530016449 Screw M4 x 1.75
4. 530015805 Screw 10-14 x 1/2
5. 545190001 Spring-Trigger
6. 545008073 Kit - Trigger (Incl. 5)
7. 530015786 Bolt - 1/4-20 x 2
8. 545199301 Assy - Throttle Cable
9. 545187502 Housing-Throttle (LH)
10. 545030601 Kit-Switch
11. 530058583 Assy - Handle Assist (Incl. 7,12)
12. 530016152 Wingnut - 1/4-20
13. 545003366 Kit-Driveshaft Upper (Incl.#14)
14. 530016344 Screw - 12-24 x .480
15. 545024301 Kit-Driveshaft Lower
16. 530071824 Kit-Shield (Incl. 17,18,19,20)
17. 530052287 Limiter-Line
18. 530015814 Screw - 10-14 x 3/4
19. 530015820 Bolt - 1/4-20 x 1-1/4
= New Part Number For This IPL

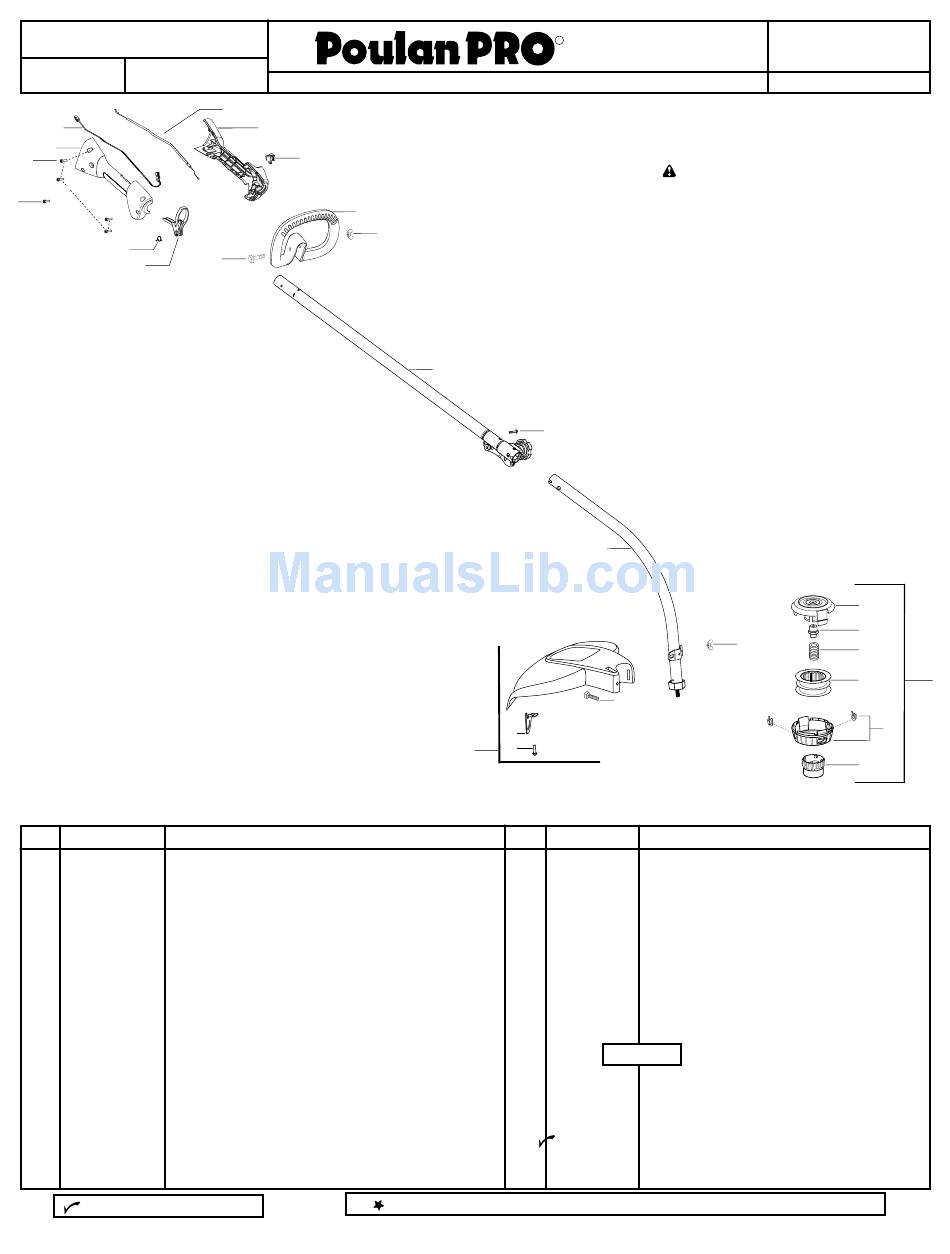

NOTE : Illustration may differ from actual model due to design changes.
8
9
10
11
12
7
Description
R
13
14
17
18
16
Ref.
20. 530016152
21. 537419303
22. 537419901
23. 537338801
24. 545080801
25. 545003365
26. 537419601
27. 952701717
545186845
545209101
545167716
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
PARTS LIST
WARNING
All repairs, adjustments and
maintenance not described in
the Operator's Manual must be
performed by Qualified Service
Personnel.
15
20
19
Part No. Description
Wingnut - 1/4-20
Housing
Adapter
Spring
Assy - Spool
Kit - Cover and Eyelet
Knob
Accy. - TNG 7 Cutting Head
(Incl. 21,22,23,24,25,26)
Not Shown
Manual
Decal-Shaft Warning (lower)
Decal-Shaft Warning (upper)
MODEL
PP033 (US/CAN)
Page: 1
21
22
23
24
27
25
26
