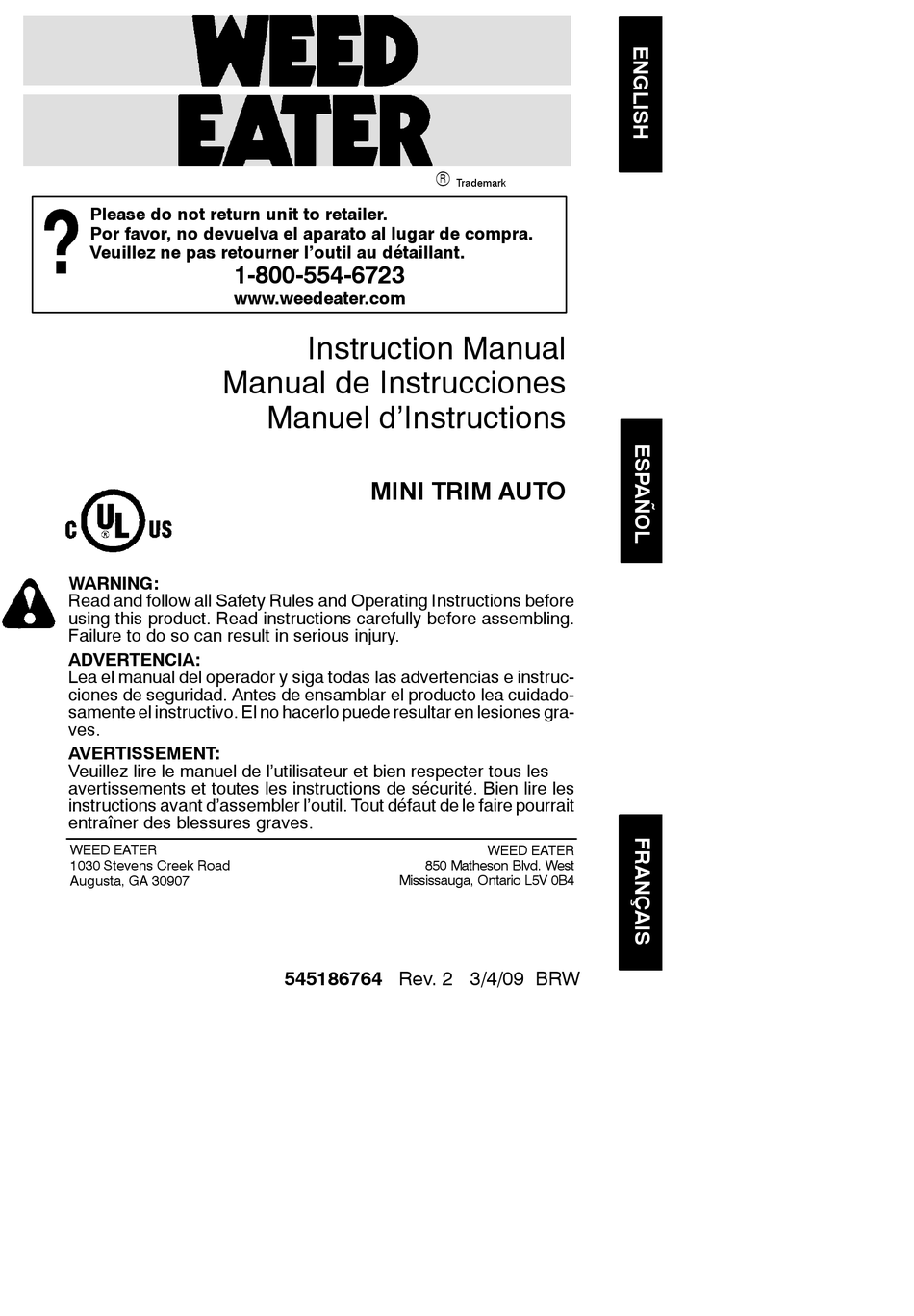

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1-800-554-6723
www.weedeater.com
Manual de Instrucciones
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Read instructions carefully before assembling.
Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual del operador y siga todas las advertencias e instruc-
ciones de seguridad. Antes de ensamblar el producto lea cuidado-
samente el instructivo. El no hacerlo puede resultar en lesiones gra-
ves.
AVERTISSEMENT:
Veuillez lire le manuel de l'utilisateur et bien respecter tous les
avertissements et toutes les instructions de sécurité. Bien lire les
instructions avant d'assembler l'outil. Tout défaut de le faire pourrait
entraîner des blessures graves.
WEED EATER
1030 Stevens Creek Road
Augusta, GA 30907
R
Instruction Manual
Manuel d'Instructions
MINI TRIM AUTO
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
545186764 Rev. 2 3/4/09 BRW
Trademark
WEED EATER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Trim Auto 545186764 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weed Eater Mini Trim Auto 545186764

Summary of Contents for Weed Eater Mini Trim Auto 545186764

  • Page 1 Please do not return unit to retailer. Por favor, no devuelva el aparato al lugar de compra. Veuillez ne pas retourner l’outil au détaillant. 1-800-554-6723 www.weedeater.com Manual de Instrucciones Manuel d’Instructions WARNING: Read and follow all Safety Rules and Operating Instructions before using this product.
  • Page 2 IDENTIFICATION OF SAFETY SYMBOLS DANGER: spool, and 0.065 inch (1.65 mm) recommended trimmer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trim- mer use only. Failure to follow these instructions may result in serious injury.
  • Page 3 Close attention is necessary when used near children. DANGER: Never use blades or flail- ing devices. Unit is designed for line trimmer use only. Use of any other accessories or at- tachments will increase the risk of injury.

  • Page 4: Operator Safety

    (see USER RE- PLACEABLE SERVICE PARTS in the SERVICE AND ADJUSTMENTS section). Never use wire, rope, string, etc. S Use specified trimmer spool. Make sure spool is properly installed and all parts are securely fastened. S Use only WEED EATER replacement parts and accessories as recommended.

  • Page 5: Transporting And Storage

    S Use only in daylight or in good artificial light. MAINTENANCE SAFETY WARNING: Disconnect unit from the power supply before performing mainte- nance, or when changing trimmer line. S Maintain unit according to recommended procedures. Keep cutting line at proper length. Follow instructions for changing trimmer line.

  • Page 6: Trigger Switch

    Trigger Switch Power Cord Debris Shield Instruction Manual Line Limiter Blade Trimmer Head LINE LIMITER BLADE The LINE LIMITER BLADE cuts the cutting line to the proper cutting length. TRIMMER HEAD The TRIMMER HEAD holds cutting line and rotates during operation.

  • Page 7: Automatic Line Feed System

    S Hold trigger handle; squeeze trigger to start unit. S Keep unit below waist level. S Hold trimmer with one hand. The trimmer will hang naturally in the correct cutting position. S Cut only from your right to your left to en- sure debris is thrown away from you.
  • Page 8 The scalping technique removes unwanted vegetation down to the ground. Hold the bot- tom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc.

  • Page 9: After Each Use

    BELS S After each use, inspect complete unit for loose or damaged parts. Never use a dam- aged trimmer. S Clean the unit using a damp cloth with a mild detergent. S Wipe off unit with a clean dry cloth.
  • Page 10 (see illustration). Cut out area of spool Eyelet USER REPLACEABLE SERVICE PARTS REPLACEMENT PART Spool with 0.065″ Trimmer Line Spool Cap STORAGE WARNING: Perform the following steps after each use. S Stop the unit and disconnect the power source when not in use.
  • Page 11 Always stop unit and disconnect from the power source before performing all of the recommended remedies below except remedies that require unit to be operating. TROUBLE CAUSE Trimmer head 1. Crowding trimmer line stops under a against material being load or does not cut.

  • Page 12: Limited Warranty

    LIMITED WARRANTY WEED EATER, a division of Husqvarna Con- sumer Outdoor Products N.A., Inc., warrants to the original consumer purchaser that each new WEED EATER brand electric or cordless pro- duct is free from defects in material and work- manship and agrees to repair or replace under this warranty any defective WEED EATER brand electric or cordless product within two (2) years from the original date of purchase.
