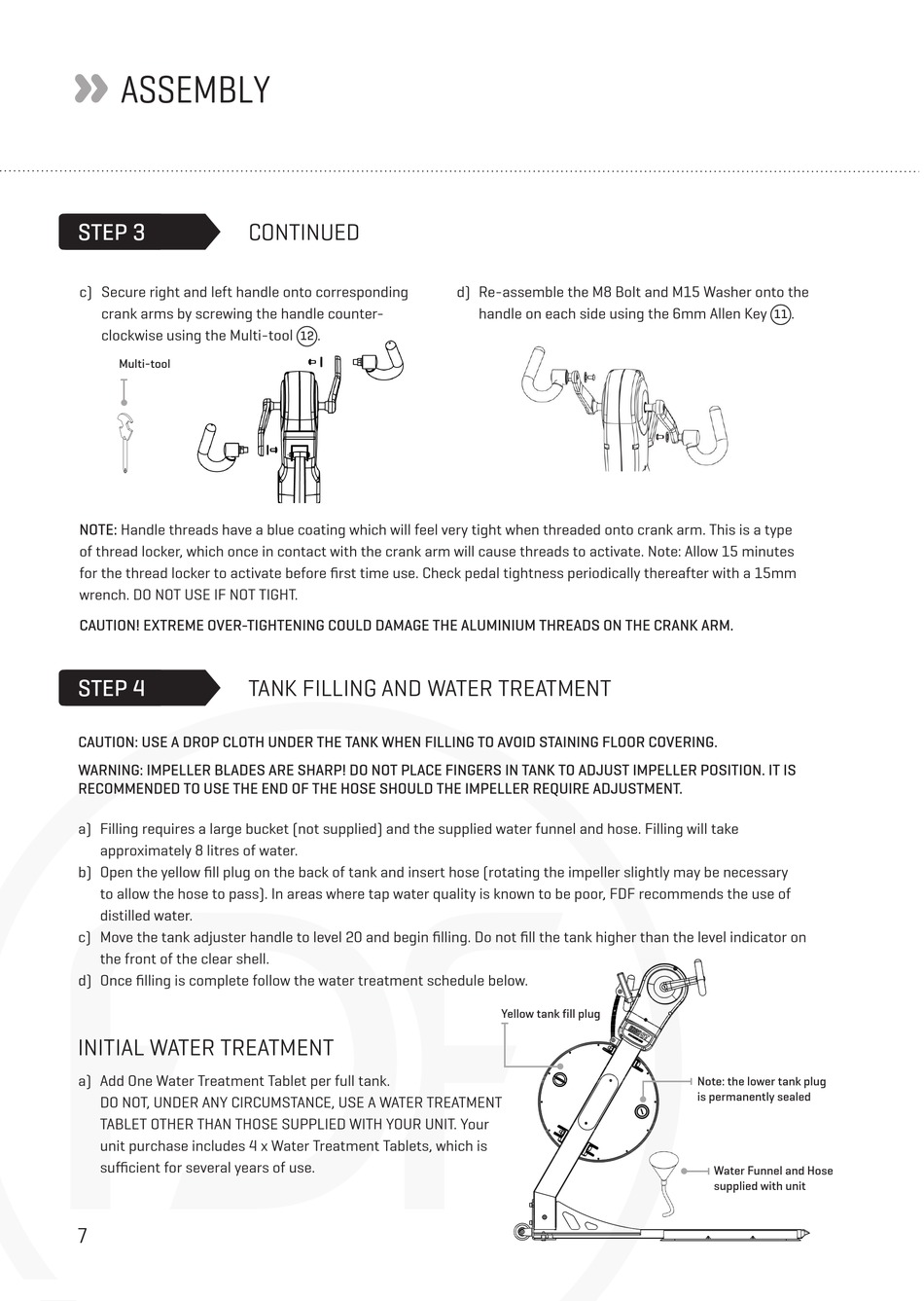

ASSEMBLY
STEP 3
c) Secure right and left handle onto corresponding
3 4
crank arms by screwing the handle counter-
clockwise using the Multi-tool
Multi-tool
9
10 11 12
15 16 17
NOTE: Handle threads have a blue coating which will feel very tight when threaded onto crank arm. This is a type
of thread locker, which once in contact with the crank arm will cause threads to activate. Note: Allow 15 minutes
for the thread locker to activate before first time use. Check pedal tightness periodically thereafter with a 15mm
Item Qty Description
wrench. DO NOT USE IF NOT TIGHT.
10 1 8mm Allen key
11 1 6mm Allen key
12 1 Multi-tool
CAUTION! EXTREME OVER-TIGHTENING COULD DAMAGE THE ALUMINIUM THREADS ON THE CRANK ARM.
13 2 AA Batteries
t 14 1 Touch Up Paint
15 4 Water Treatment Tablet
16 1 Funnel and Hose
STEP 4
17 1 Owners Manual
CAUTION: USE A DROP CLOTH UNDER THE TANK WHEN FILLING TO AVOID STAINING FLOOR COVERING.
WARNING: IMPELLER BLADES ARE SHARP! DO NOT PLACE FINGERS IN TANK TO ADJUST IMPELLER POSITION. IT IS
RECOMMENDED TO USE THE END OF THE HOSE SHOULD THE IMPELLER REQUIRE ADJUSTMENT.
a) Filling requires a large bucket (not supplied) and the supplied water funnel and hose. Filling will take
approximately 8 litres of water.
b) Open the yellow fill plug on the back of tank and insert hose (rotating the impeller slightly may be necessary
to allow the hose to pass). In areas where tap water quality is known to be poor, FDF recommends the use of
distilled water.
c) Move the tank adjuster handle to level 20 and begin filling. Do not fill the tank higher than the level indicator on
the front of the clear shell.
d) Once filling is complete follow the water treatment schedule below.
INITIAL WATER TREATMENT
a) Add One Water Treatment Tablet per full tank.
DO NOT, UNDER ANY CIRCUMSTANCE, USE A WATER TREATMENT
TABLET OTHER THAN THOSE SUPPLIED WITH YOUR UNIT. Your
unit purchase includes 4 x Water Treatment Tablets, which is
sufficient for several years of use.
7
CONTINUED
.
12
TANK FILLING AND WATER TREATMENT
d) Re-assemble the M8 Bolt and M15 Washer onto the
handle on each side using the 6mm Allen Key
Yellow tank fill plug
.
11
Note: the lower tank plug
is permanently sealed
Water Funnel and Hose
supplied with unit
