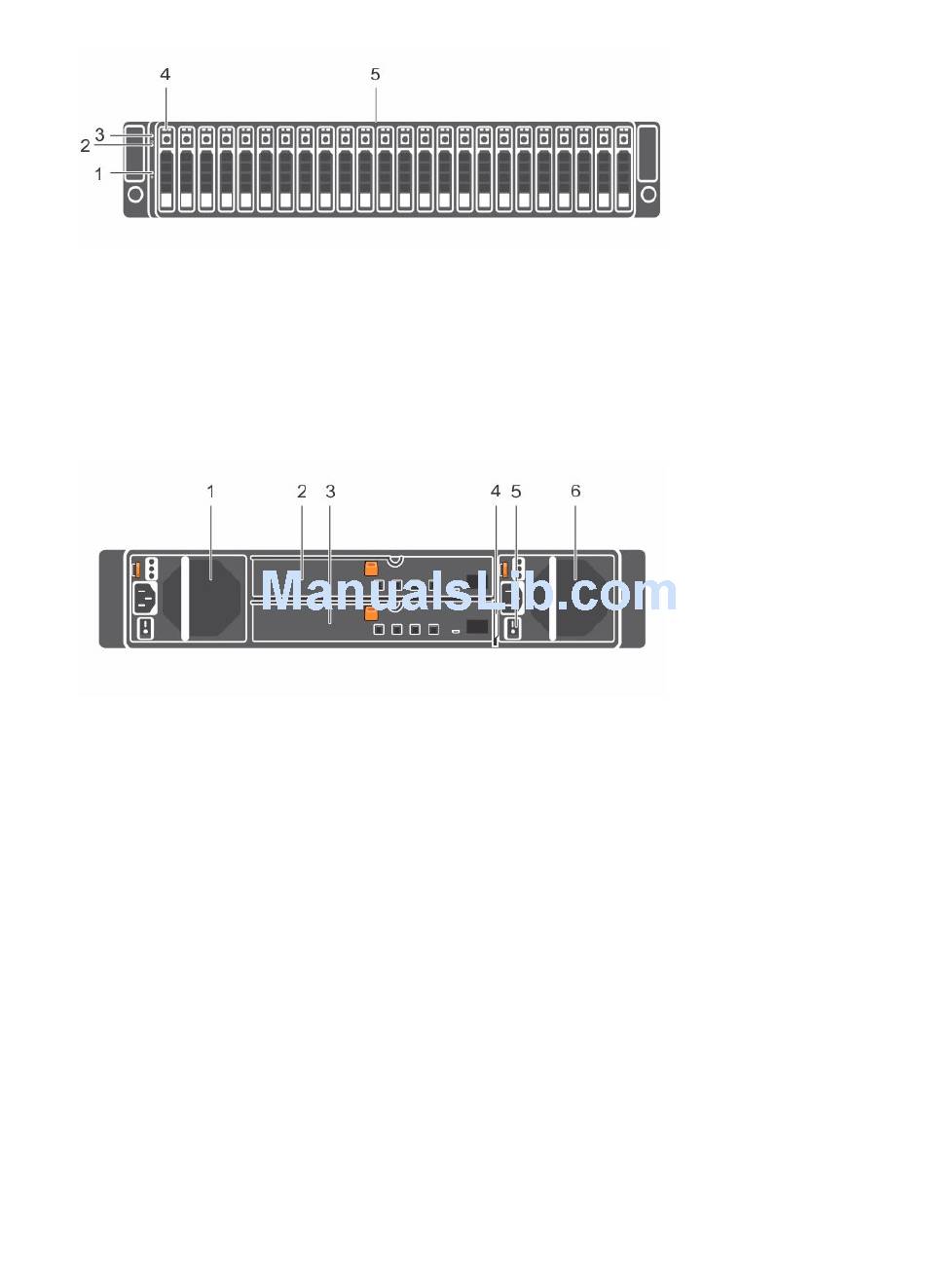

Figure 4. Front panel features and Indicators—Dell Storage MD1420
1.
system identification button (blue)
3.
enclosure status LED (blue and amber)
5.
enclosure (Drawer 0)
Back-panel features and indicators
Figure 5. Back-panel features and indicators
1.
PSU or cooling fan module (PS1)
3.
secondary EMM (EMM 1)
5.
power switches (2)
Server Hardware Manager installation
MPIO (Multipath I/O)
You must configure Windows MPIO for the SHM software to recognize the hardware. For more
information about MPIO configuration procedures, see the Dell Storage with Microsoft Storage Spaces
Best Practices available at Dell.com/dsmsmanuals.
10
2.
power LED
4.
hard disk drives
2.
primary enclosure management module
(EMM 0)
4.
information tag
6.
PSU or cooling fan module (PS2)
