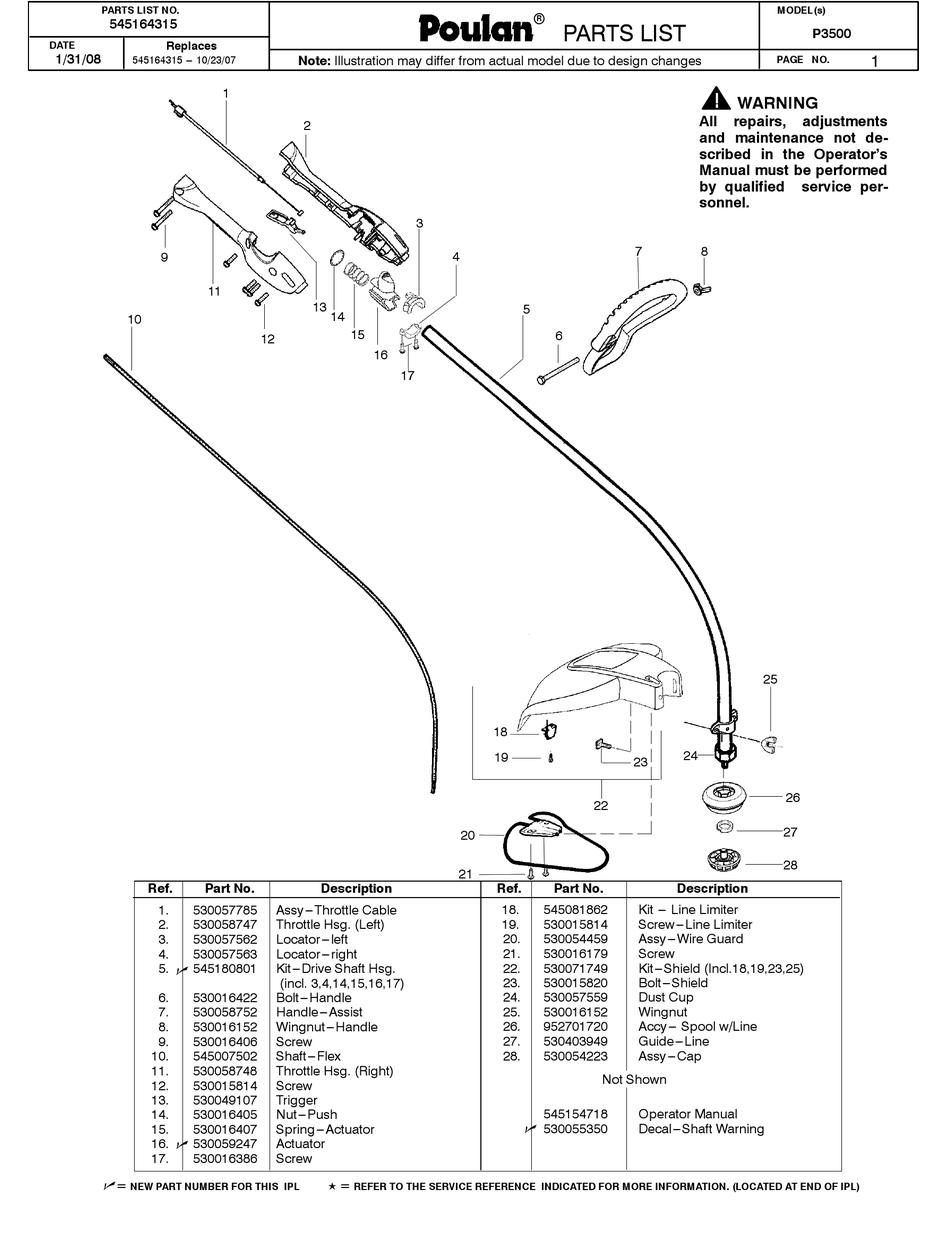

Poulan Pro 545164315 Parts List

PARTS LIST NO.
545164315
DATE Replaces
1/31/08
545164315 --- 10/23/07
1
9
11
10
Ref. Part No.
1. 530057785
2. 530058747
3. 530057562
4. 530057563
5. 545180801
n
6. 530016422
7. 530058752
8. 530016152
9. 530016406
10. 545007502
11. 530058748
12. 530015814
13. 530049107
14. 530016405
15. 530016407
16. 530059247
n
17. 530016386
=
NEW PART NUMBER FOR THIS IPL
n
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
2
3
13
14
15
12
16
17
Description
Assy--- Throttle Cable
Throttle Hsg. (Left)
Locator--- left
Locator--- right
Kit--- Drive Shaft Hsg.
(incl. 3,4,14,15,16,17)
Bolt--- Handle
Handle--- Assist
Wingnut--- Handle
Screw
Shaft--- Flex
Throttle Hsg. (Right)
Screw
Trigger
Nut--- Push
Spring --- Actuator
Actuator
Screw
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
R R
R R

PARTS LIST

PARTS LIST
r PARTS LIST
PARTS LIST
4
5
6
18
19
22
20
21
Ref. Part No.
18. 545081862
19. 530015814
20. 530054459
21. 530016179
22. 530071749
23. 530015820
24. 530057559
25. 530016152
26. 952701720
27. 530403949
28. 530054223
Not Shown
545154718
530055350
n
MODEL(s)
P3500
PAGE NO.
WARNING
All repairs, adjustments
and maintenance not de-
scribed in the Operator's
Manual must be performed
by qualified service per-
sonnel.
7 8
25
24
23
26
27
28
Description
Kit --- Line Limiter
Screw--- Line Limiter
Assy--- Wire Guard
Screw
Kit--- Shield (Incl.18,19,23,25)
Bolt--- Shield
Dust Cup
Wingnut
Accy--- Spool w/Line
Guide--- Line
Assy--- Cap
Operator Manual
Decal--- Shaft Warning
1
