CONTENTS:
1.
General Note .............................................................................................................. 01
2.
Functions .................................................................................................................... 01
2.1. Binding ......................................................................................................................... 01
2.2. Binding Multiple Receivers .......................................................................................... 01
2.3. Fail-Safe Function ........................................................................................................ 02
3.
Receiver ...................................................................................................................... 02
3.1. Connections ................................................................................................................. 02
3.2. Low Voltage Warning ................................................................................................... 03
3.3. Temperature Warning .................................................................................................. 03
4.
Firmware Update ........................................................................................................ 03
4.1. Receiver ...................................................................................................................... 03
4.2. Update Procedure ........................................................................................................ 03
5.
Declaration of Conformity ......................................................................................... 05
6.
FCC Information..........................................................................................................06
7.
Warranty ..................................................................................................................... 08
GRAUPNER GmbH & Co. KG - Postfach 1242 - 73230 Kirchheim/Teck - www.graupner.de

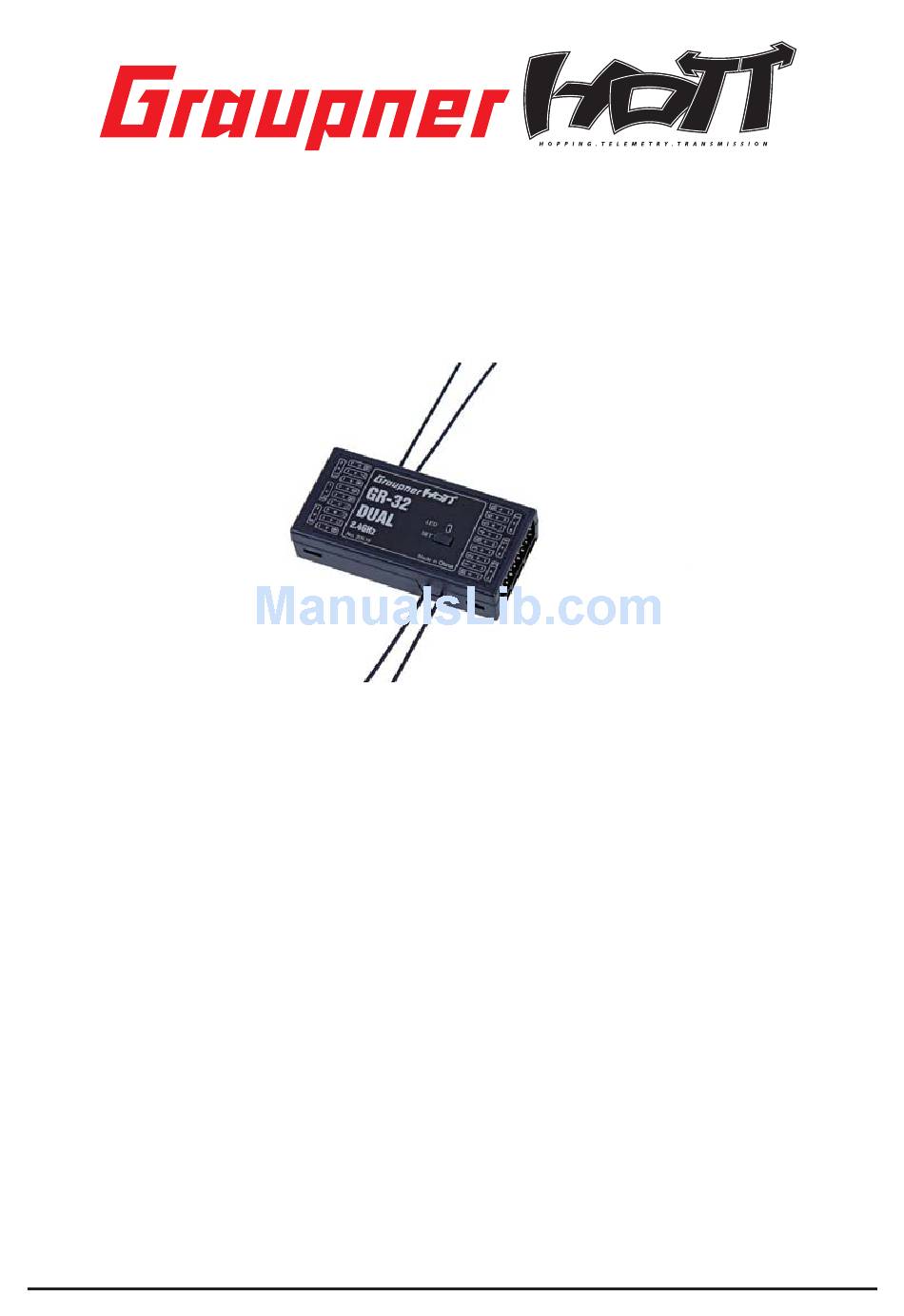

Manual

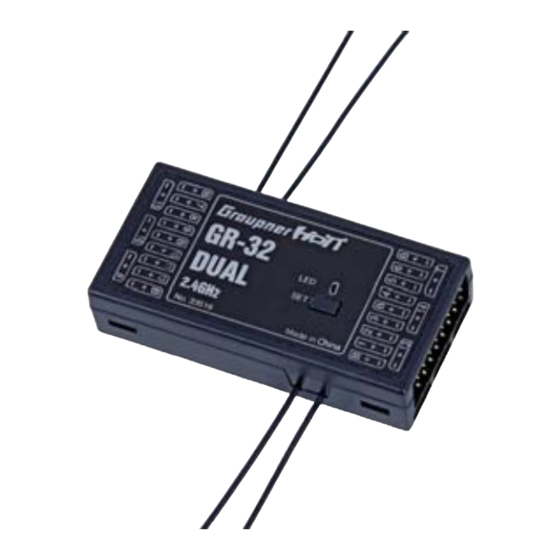

Receiver GR-32 HoTT
Manual V1.0
Revision: September 2011
Advertisement
Table of Contents
Related Manuals for GRAUPNER 33516
Summary of Contents for GRAUPNER 33516
-
Page 1: Table Of Contents
Firmware Update ......................03 4.1. Receiver ........................03 4.2. Update Procedure ......................03 Declaration of Conformity ..................05 FCC Information......................06 Warranty ........................08 Manual V1.0 Revision: September 2011 GRAUPNER GmbH & Co. KG – Postfach 1242 – 73230 Kirchheim/Teck – www.graupner.de... -
Page 2: General Note
2. FUNCTIONS 2.1. Binding When you wish to use the Graupner HoTT 2.4 GHz receiver with a particular transmitter, the fi rst step must always be to “bind” the unit to “its” Graupner HoTT 2.4 GHz RF module (transmitter). This “binding”... -
Page 3: Fail-Safe Function
(-), red (+) and orange (signal). The servo sockets of the Graupner-HoTT 2.4 receiver are numbered. It is also possible to program socket „S“ for the sum signal using the SMART-BOX (Order No. 33700). This is important for certain optional devices which require this signal. -
Page 4: Low Voltage Warning
Windows XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, and the adapter lead, Order No. 7168.6A, which are available separately. The programs and fi les required for this are available from www.graupner.de in the Download area for the corresponding products. - Page 5 Any settings you have entered using the SMART-BOX are also lost when you initialise the recei- ver. If you carry out a receiver fi rmware update, you will need to re-enter these settings. The latest version of these instructions can be found at www.graupner.de Manual Receiver GR-32 Graupner HoTT 2.4...
-
Page 6: Fcc Information
FCC radiation exposure statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. Manual Receiver GR-32 Graupner HoTT 2.4... - Page 7 If you don’t know the location of your nearest disposal centre, please enquire at your local council of- fi ce. Manual Receiver GR-32 Graupner HoTT 2.4...
-
Page 8: Warranty
Servicestellen / Service / Service après-vente Die Fa. Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230 Kirchheim/Teck gewährt ab dem Kaufdatum auf Graupner-Zentralservice Servicehotline dieses Produkt eine Garantie von 24 Monaten. Die Garan- Graupner GmbH & Co. KG (+49) 01805 47 28 76 tie gilt nur für die bereits beim Kauf des Produktes vorhan-... - Page 9 ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ Manual Receiver GR-32 Graupner HoTT 2.4...
- Page 10 ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ Manual Receiver GR-32 Graupner HoTT 2.4...
- Page 11 Graupner GmbH & Co. KG Henriettenstraße 94 – 96 D-73230 Kirchheim/Teck Germany www.graupner.de Änderungen sowie Liefermöglichkeiten vorbehalten. Lieferung durch den Fachhandel. Bezugsquellen werden nachgewiesen. Für Druckfehler kann keine Haftung übernommen werden. Specifi cations and availability subject to change. Supplied through specialist model shops only. We will gladly inform you of your nearest supplier.
