CDMA WLL User's Guide
HTT-800A

CDMA – 2000 1X

Fixed Wireless Terminal

User's Guide
Model No. HTT-800A
Supports Voice, PCO, G3 Fax, Data
Read this manual carefully before operating the instrument.
V1.0
1-
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTT-800A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HANTEL HTT-800A

  • Page 1: Fixed Wireless Terminal

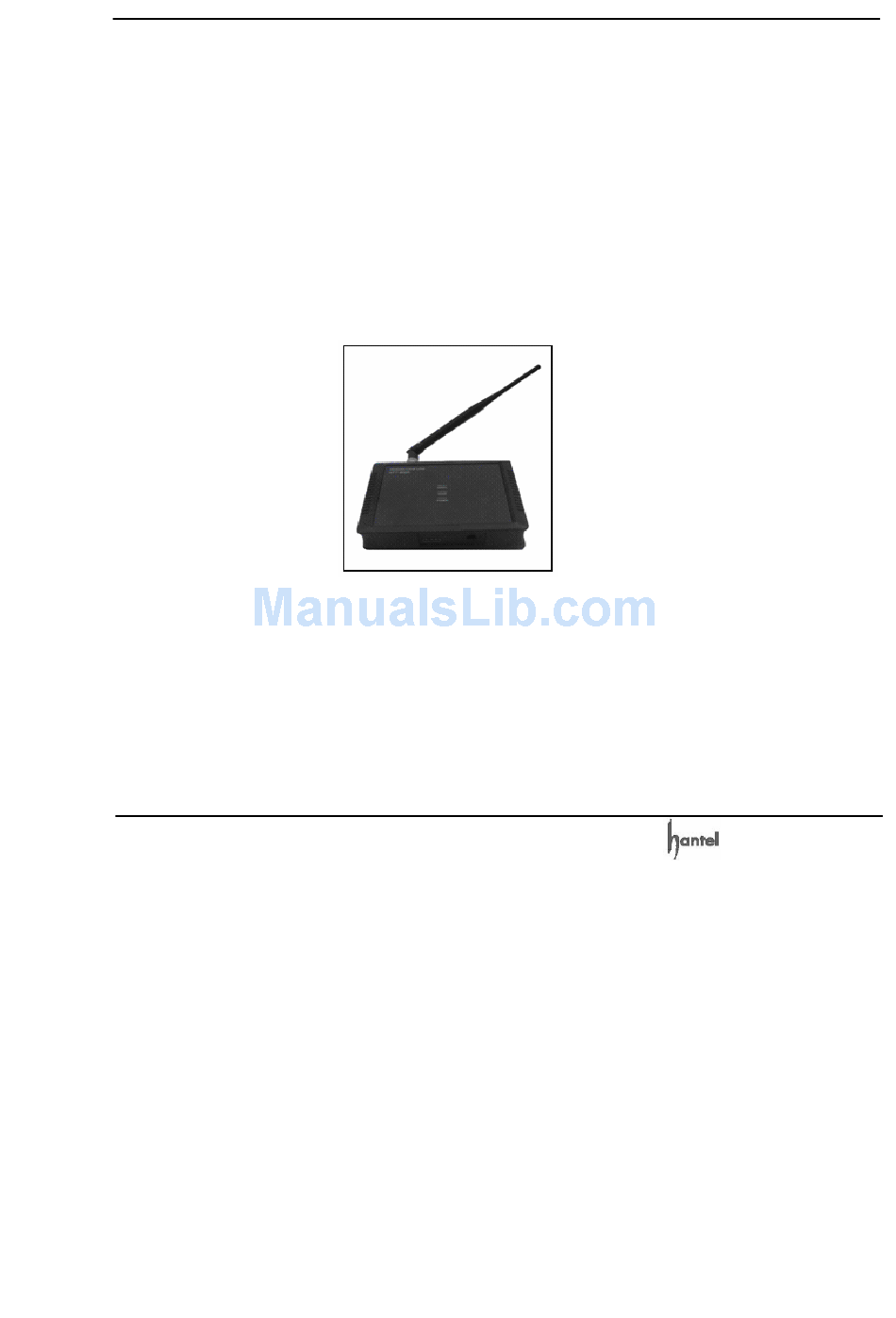

              CDMA WLL User’s Guide HTT-800A    CDMA – 2000 1X Fixed Wireless Terminal User's Guide Model No. HTT-800A Supports Voice, PCO, G3 Fax, Data Read this manual carefully before operating the instrument. V1.0...

  • Page 2: Fcc Rf Exposure Information

              CDMA WLL User’s Guide HTT-800A    FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96~326...
  • Page 3           CDMA WLL User’s Guide HTT-800A    Warning: Exposure Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized.

  • Page 4: Table Of Contents

              CDMA WLL User’s Guide HTT-800A    CONTENTS FCC RF EXPOSURE INFORMATION........2 HIGHLIGHTS ................9 BEFORE YOU START ........... 13 1.1 SAFETY PRECAUTIONS........13 1.1.1 Warning............13 1.1.2 Important............13 1.2 Optimal Phone Performance ........13 1.3 Care and Service ............
  • Page 5           CDMA WLL User’s Guide HTT-800A    2.9 Multi-extension Installations ......... 26 3. BASIC FUNCTIONS ............27 3.1 Power On/Off ............27 3.2 Making a call............28 3.3 Receiving a call............28 3.4 Ending a call ............29 4.
  • Page 6           CDMA WLL User’s Guide HTT-800A    4.11 R-UIM (Optional) ..........38 4.12 Authentication Function (Optional) ...... 39 5. SUPPLEMENTARY FUNCTIONS ........40 5.1 Call Functions ............40 5.1.1 Speed Dial ............40 5.1.2 Redialing ............41 5.1.3 Emergency call ..........
  • Page 7           CDMA WLL User’s Guide HTT-800A    6. SYSTEM FUNCTIONS ............52 6.1 Call Waiting............. 52 6.2 Three-way calling..........52 6.3 Call Forwarding ............52 7. FAX FUNCTIONS .............. 53 7.1 FAX Set-up............. 53 7.2 Sending FAX Message..........53 7.3 Receiving G3 FAX Message ........
  • Page 8           CDMA WLL User’s Guide HTT-800A    9.1 Advanced Functions ..........96 9.2 Supplementary Functions ........98 10. TROUBLESHOOTING GUIDE ........1021 11. SPECIFICATIONS ............1041...

  • Page 9: Highlights

    Highlights Dear Customer, Congratulations on your purchase of the Fixed Wireless Terminal Model No. HTT-800A designed to operate on the latest digital mobile communications technology, Code Division Multiple Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can provide various advanced features.
  • Page 10           CDMA WLL User’s Guide HTT-800A    ■ This Model offers its users superior voice quality through its use of QCELP or EVRC Vocoder. Various sounds and LED functions provide audio ■ and visual alerts for Low Battery, Air Link Cut-Off and Function status.
  • Page 11           CDMA WLL User’s Guide HTT-800A    This Model provides: ■ AC Power supply with AC/DC Adapter. Touch tone (DTMF) or Pulse Dialing ■ A phone jack to plug in the telephone ■ equipment (RJ-11 Port) Support Caller ID Telephone ■...
  • Page 12           CDMA WLL User’s Guide HTT-800A    For instance, the following features may not be supported: Emergency Call ■ Hot Line Call ■ ■ Speed Dial Alarm ■ Outgoing Call Lock ■...

  • Page 13: Before You Start

              CDMA WLL User’s Guide HTT-800A    1. Before You Start 1.1 SAFETY PRECAUTIONS 1.1.1 Warning To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not use this product near swimming pools or other bodies of water.
  • Page 14           CDMA WLL User’s Guide HTT-800A    phone. ■ For the best call quality, keep the antenna free from obstructions and point the antenna straight ■ Do not operate your product when holding the antenna, or when someone is within four inches (ten centimeters) of the antenna.
  • Page 15           CDMA WLL User’s Guide HTT-800A    to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the radio or television and the telephone.

  • Page 16: Care And Service

              CDMA WLL User’s Guide HTT-800A    Avoid shock or impact. ■ ■ We recommend you to charge the backup battery before initial use for 10/12 hours. Backup battery may be discharged during delivery. This device complies with part 15 of the FCC ■...
  • Page 17           CDMA WLL User’s Guide HTT-800A    The unit has been exposed to rain or water. Liquid has been spilled into the unit. The power supply cord is damaged or frayed. The unit has been dropped or damaged.

  • Page 18: Getting Started And Installation

              CDMA WLL User’s Guide HTT-800A    Green ) 2. Getting Started and Installation 2.1 Checking the Parts Please make sure that these components are present before you begin the unit installation. And then compare the following figures and components. If components are missing or damage is found, contact the store where you purchased the unit immediately.

  • Page 19: Know Your Terminal

              CDMA WLL User’s Guide HTT-800A    2.2 Know your Terminal 1. Antenna: Connector Connecting Port for TNC Antenna 2. LEDs: Indicate the status of the unit LED indications are described in the following table.
  • Page 20           CDMA WLL User’s Guide HTT-800A    Name Activity Meaning Color AC/DC adapter is giving 12V DC GREEN without a battery. Battery is fully charged. (AC/DC ORANGE adapter is connected.) Battery charging. (AC/DC ORANGE Flashing adapter is connected.)

  • Page 21: Setting Up Your Terminal

              CDMA WLL User’s Guide HTT-800A    6. PHONE / FAX (RJ-11 port): Connecting Ports for a G3 FAX Machine or SLT (Single Line Telephone) 7. DC 12V: 12V AC/DC Power Adapter. The SMPS supplies the power to the FWT terminal.

  • Page 22: Adjust Your Fwt

              CDMA WLL User’s Guide HTT-800A    4. Plug AC/DC adapter plug into appropriate electrical outlet. 5. Connect a G3 analog facsimile machine to a dedicated RJ-11 port marked as FAX. 2.3.1 Adjust Your FWT 1. Pick up the phone receiver and listen to dial tone.

  • Page 23: Additional Telephone Equipment

              CDMA WLL User’s Guide HTT-800A    2.3.3 Additional Telephone Equipment If you plan to use a device other than a telephone with your FWT, make sure that device will work with a normal wired telephone line.

  • Page 24: How To Install Battery

              CDMA WLL User’s Guide HTT-800A    them in all the way. Leave space between the screw head and the installation sheet. Install the FWT on 02 screws with the help ■ of eyeholes provided on the rear side of unit.

  • Page 25: Installation For The Data Service

              CDMA WLL User’s Guide HTT-800A    Note: You need to be careful for getting hurt when you change the battery pack. 2.7 Installation for the Data Service As shown below, connect a USB or RS-232 data cable to the port mark as Data port on side of the FWT.

  • Page 26: Multi-Extension Installations

              CDMA WLL User’s Guide HTT-800A    2.9 Multi-extension Installations This Model has 2 jacks. You can connect up to 4 phones to the terminal using RJ-11 jack. A user must buy additional parts to extend the connection.

  • Page 27: Basic Functions

              CDMA WLL User’s Guide HTT-800A    3. Basic Functions 3.1 Power On/Off The power jack is on the side of the FWT. The POWER LED indicates the present status; When the terminal is succeeded in getting the service, SIGNAL LED indicates the strength of the signal.

  • Page 28: Making A Call

              CDMA WLL User’s Guide HTT-800A    3.2 Making a call 1. First check to see that your FWT Phone is turned on. 2. Pick up the handset. You will hear a dial tone. 3. Using the number keypad, dial the desired telephone number (Max 32 digits).

  • Page 29: Ending A Call

              CDMA WLL User’s Guide HTT-800A    Note: When the handset is picked up and the incoming call is ringing, you can receive the call by pressing any key. 3.4 Ending a call When you have completed the call, place the handset back on telephone.

  • Page 30: Advanced Functions & Setting

              CDMA WLL User’s Guide HTT-800A    4. Advanced Functions & Setting 4.1 One Minute Alert A one minute alert is generated after each minute interval into the call conversation to notify you that a minute has passed since the beginning of the call or after the previous time of discrete tone, regardless of when you make or receive a call.

  • Page 31: Hour Mode

              CDMA WLL User’s Guide HTT-800A    4.2.2 Hour Mode 1. Pick up the handset. 2. Press <*>, <*>, <0>, <2> and <2 (24 Hour mode)>. 3. Press alarm time (00:00~23:59). 4. Press <*> to set alarm.

  • Page 32: Earpiece Volume

              CDMA WLL User’s Guide HTT-800A    4.4 Earpiece Volume You can adjust the Earpiece volume to levels 1-4. The Number 4 is highest volume. 1. Pick up the handset (Standby mode). 2. Press <*>, <*> and <0>, <4>.

  • Page 33: Calls Restrict

              CDMA WLL User’s Guide HTT-800A    activate or deactivate Caller ID. 4.6 Calls Restrict 4.6.1 Outgoing Call Restrict If you try to make an outgoing call while outgoing call restrict is enabled, then you will hear warning tone after dial time-out.

  • Page 34: International Call Restrict

              CDMA WLL User’s Guide HTT-800A    out. Long Call restrict feature is disabled as a factory setting. 1. Pick up the handset. 2. Press <*>, <*> and <1>, <2>. 3. Press 4 digits Lock Code Number. (Default Number is 0000 (four times zero)).

  • Page 35: Incoming Call Restrict

              CDMA WLL User’s Guide HTT-800A    confirmation beep. If not, it returns to the standby mode with error beep. 4. Press <*> to set international call restrict or Press <#> to release international call restrict.

  • Page 36: Lock Code

              CDMA WLL User’s Guide HTT-800A    4.7 Lock Code Used when you wish to change the lock code of the terminal. The programmed lock code prevents the terminal from being operational to any other people without your permission.

  • Page 37: Reset

              CDMA WLL User’s Guide HTT-800A    4.8 Reset Reset the terminal back to the initial service status of factory pre-programmed state (Default). This feature can be disabled and enabled through simple keypad number code entry.

  • Page 38: Data Service

              CDMA WLL User’s Guide HTT-800A    pressed until press <*>. 4. Press <*>. 5. Wait until you hear confirmation beep. 4.10 Data Service Using USB or RS-232 Cable, you can connect this model to PC for Internet, PC Communication and/or G3 Fax communication, if your service provider provides Wireless Data Communication Service.

  • Page 39: Authentication Function (Optional)

              CDMA WLL User’s Guide HTT-800A    4.12 Authentication Function (Optional) The Authentication Key function prevents the owner’s phone number from being cloned by others. The phone has its own authentication key function. This will prohibit any illegal use of the phone.

  • Page 40: Supplementary Functions

              CDMA WLL User’s Guide HTT-800A    5. Supplementary Functions 5.1 Call Functions 5.1.1 Speed Dial This model will store up to 200 phone numbers using 3 digit addresses (001-200). The stored number in the Phonebook allows a call to be placed by pressing the three digit address.

  • Page 41: Redialing

              CDMA WLL User’s Guide HTT-800A    If the saved address is two digits, pick up the handset and press the first digit and then press the second digit and hold it down then a call is made.

  • Page 42: Emergency Call

              CDMA WLL User’s Guide HTT-800A    5.1.3 Emergency call When emergency call number is connected once, it will not be terminated unless the called party disconnects the call (Emergency Call Hold Service). Therefore even caller hangs up the telephone, the line will be still connected, so if the caller picks up the telephone again, he can continue talking.

  • Page 43: Hot Line

              CDMA WLL User’s Guide HTT-800A    1. Pick up the telephone handset and Press “36*#02” 2. Press “3” to enter Emergency call number store step Note: If you want to Delete at this point, Press “4”...
  • Page 44           CDMA WLL User’s Guide HTT-800A    delayed manner between 4-8 seconds (sending waiting time), depending on your default value, after you pick up the handset. Original default value is 6 seconds. Immediate Hot Line: The call will be made as soon as you pick up the handset.

  • Page 45: Pay Phone Interface

              CDMA WLL User’s Guide HTT-800A    5. Press <*> to save. Note: If the Hot Line function is in the Immediate Hot Line mode, a call may not be made to another number. In this case, to make a call to another number, change the setup mode.

  • Page 46: Phone Book

              CDMA WLL User’s Guide HTT-800A    5.3 Phone Book 5.3.1 Storing Phone Numbers 1. Pick up the telephone handset and Press “36*#051” 2. Press the 3 digit memory address (001~200). 3. Press the phone numbers (Max 32 digits).

  • Page 47: Ringer Frequency & Cadence Control

              CDMA WLL User’s Guide HTT-800A    There are two detailed settings available, <Standard> for regular level voice privacy mode and <Enhanced> for reinforced voice privacy mode. 1. Press “36*#06”. 2. Press <1> for Enhanced Voice Privacy mode or <2>...

  • Page 48: Dial Tone Frequency Control

              CDMA WLL User’s Guide HTT-800A    Sec Off 3: 1 Sec On – 4.5 Sec Off 4: 1 Sec On – 4 Sec Off 5: 0.25 Sec On – 0.25 Sec Off - 0.25 Sec On –...

  • Page 49: Roh (Receiver Off Hook)

              CDMA WLL User’s Guide HTT-800A    Note: Hook-flash is accomplished in a call through either pressing the dedicated hook-flash key which is available on some phones or through a rapid single press of the hang-up mechanism upon which the handset rests when the phone is hung up.

  • Page 50: Set Restrict Call Level

              CDMA WLL User’s Guide HTT-800A    This terminal has 10 Deny dial numbers (1~10), and max. 32 digits can be stored in each Deny dial number. This terminal has 10 Permit dial number (1~10), and max.

  • Page 51: Storing (Deleting) The Deny Dial Number

              CDMA WLL User’s Guide HTT-800A    3. Press “LOCK code” (4 digits). 4. Press one of “Memory number” for permit dial number (01~10). 5. Press the “digits” (Max. 32digits). 6. If you want to store more Permit Dial Numbers continue from step2 7.

  • Page 52: System Functions

              CDMA WLL User’s Guide HTT-800A    6. System Functions 6.1 Call Waiting Call Waiting is a feature, which enables you to be alerted to a second incoming call while you are on the first call of your telephone.

  • Page 53: Fax Functions

              CDMA WLL User’s Guide HTT-800A    7. FAX Functions 7.1 FAX Set-up 1) To send or receive analog fax messages, the FWT should be equipped with an analog fax module, connected to a conventional fax machine with the FWT, as shown in section 2.3...

  • Page 54: Receiving G3 Fax Message

              CDMA WLL User’s Guide HTT-800A    2) Per-digit Method 1. Load documents to send into a fax machine. 2. Pick up the handset or press On-hook button of the fax machine. 3. Press <*>, <8>, <9>, <*> and destination fax number in sequence.

  • Page 55: Receiving Pc Fax Message

              CDMA WLL User’s Guide HTT-800A    mode to voice call mode. Pick up the handset or press On-hook key. Press <*>, <*>, <0>, <9>, <7> in sequence. Wait for a confirmation dial tone. 7.4 Receiving PC FAX message You can set the FWT to “Always”...

  • Page 56: Data Service

              CDMA WLL User’s Guide HTT-800A    8. Data Service 8.1 For Windows 98, Windows 2000 Service) 8.1.1 Setting the phone to DS (Data Data Service mode setting Press 36*#103* (Data Service through USB Cable) from phone keypad.

  • Page 57: Setting A Usb Driver In Pc

              CDMA WLL User’s Guide HTT-800A    Notes: 1. XXXX (where XXXX is depends on Service provider location). 2. Below Setup is shown for Packet data, for circuit data Dial up Number and Modem baud rate to be changed accordingly.
  • Page 58           CDMA WLL User’s Guide HTT-800A    Check the box next to where it says, “Search for a suitable driver for my device (recommended)” and then click on the Next button.
  • Page 59           CDMA WLL User’s Guide HTT-800A    Check the box next to where it says, “CD – ROM drives” and then click on the Next button. Click on the Next button. Click on the Finish button.
  • Page 60           CDMA WLL User’s Guide HTT-800A    This is not over. You have to continue to setup USB Driver. The following window appears automatically. Click on the Next button.
  • Page 61           CDMA WLL User’s Guide HTT-800A    Check the box next to where it says, “Search for a suitable driver for my device (recommended)” and then click on the Next button. Check the box next to where it says, “CD – ROM...
  • Page 62           CDMA WLL User’s Guide HTT-800A    Click on the Next button. Click on the Yes button. Click on the Finish button.
  • Page 63           CDMA WLL User’s Guide HTT-800A    This is the last setup. The following window appears automatically too. Click on the Next button.
  • Page 64           CDMA WLL User’s Guide HTT-800A    Check the box next to where it says, “Search for a suitable driver for my device (recommended)” and then click on the Next button. Check the box next to where it says, “CD – ROM...
  • Page 65           CDMA WLL User’s Guide HTT-800A    Click on the Next button. Click on the Finish button. → Double-click [control panel] Double-click [system] → Click [hardware] → Click [device...

  • Page 66: Setting A Standard Modem In Pc

              CDMA WLL User’s Guide HTT-800A    manager]. You will see a ‘Modems’ icon. You can check if USB Driver setup is right or not. You have completed the setup for USB Driver. From now, you can use the USB, connecting the FWT (WLL).
  • Page 67           CDMA WLL User’s Guide HTT-800A    that the modem is installed properly including serial port number and data speed. If not, make a correction. Note: Maximum Speed type has many kinds. We recommend 115,200bps. And Port is properly serial port for your PC.

  • Page 68: Browsing The Internet

              CDMA WLL User’s Guide HTT-800A    8.1.4 Browsing the Internet Setting a Dial-Up Networking → Double-click [Control panel] Double-click [Network and Dial-up Connections] → Double-click [Make New Connection]. Click on the Next button.
  • Page 69           CDMA WLL User’s Guide HTT-800A    Check second radio button and click on the Next button. Check third radio button and click on the Next button.
  • Page 70           CDMA WLL User’s Guide HTT-800A    Check first radio button and click on the Next button. Input the telephone number, the designated number of your operator or ISP (ex #777). Click on the Next button.
  • Page 71           CDMA WLL User’s Guide HTT-800A    Enter User Name and Password. Click on the Next button. Note: User name and password will be provided by your operator or ISP. For Instance Sktelecom and blank can be used “...
  • Page 72           CDMA WLL User’s Guide HTT-800A    Click on the Next button. Select “No” and then click on the Next button. Uncheck the check button and click on the Finish button.
  • Page 73           CDMA WLL User’s Guide HTT-800A    → Double-click [Control Panel] Double-click [Network and Dial-up Connections]. You will see a new icon. (Dial-up networking icon)

  • Page 74: For Windows Xp

              CDMA WLL User’s Guide HTT-800A    Connecting to the Internet Double-click Dial-up Networking icon which you made in your PC. Click “Dial” button. When connected, run the internet browser. 8.2 For Windows XP Service) 8.2.1 Setting the phone to DS (Data Data Service mode setting Press 36*#103*.
  • Page 75           CDMA WLL User’s Guide HTT-800A    If you connect PC with the USB cable, you will see the message. Click on the Next button and check the box next to where it says, “Search for a suitable driver for my device (recommended)”...
  • Page 76           CDMA WLL User’s Guide HTT-800A    The following dialog box appears: Click on the Continue Anyway button. The following dialog box appears:...
  • Page 77           CDMA WLL User’s Guide HTT-800A    Click on the Finish button. This is not over. You have to continue to setup USB Driver. The following window appears automatically.
  • Page 78           CDMA WLL User’s Guide HTT-800A    Click on the Next button. The following dialog box appears: Click on the Continue Anyway button.
  • Page 79           CDMA WLL User’s Guide HTT-800A    Click on the Finish button.
  • Page 80           CDMA WLL User’s Guide HTT-800A    This is the last setup. The following window appears automatically too. Click on the Next button. The following dialog box appears:...
  • Page 81           CDMA WLL User’s Guide HTT-800A    Click on the Continue Anyway button. The following dialog box appears: Click on the Finish button.

  • Page 82: Setting A Standard Modem In Pc

              CDMA WLL User’s Guide HTT-800A    → Double-click [control panel] Double-click [system] → Click [hardware] → Click [device manager]. You will see a ‘Modems’ icon. You can check that USB Driver setup is right or not.

  • Page 83: Browsing The Internet

              CDMA WLL User’s Guide HTT-800A    Options] → click [Modem]. Select a COM port and click Properties. Make sure that the modem is installed properly including serial port number and data speed. If not, make a correction.
  • Page 84           CDMA WLL User’s Guide HTT-800A    Internet Setting a Dial-Up Networking → Double-click [Control Panel] Double-click [Network Connections] → Click [view network connects] → Click [Create a new connection]. Click next...
  • Page 85           CDMA WLL User’s Guide HTT-800A    Check first radio button and Click Next. Check second radio button and Click Next.
  • Page 86           CDMA WLL User’s Guide HTT-800A    Check first radio button and Click Next. Write arbitrary ISP name and Click Next.
  • Page 87           CDMA WLL User’s Guide HTT-800A    Enter the telephone number, the designated number of your operator or ISP (ex #777). Click Next. Enter User Name and Password. Click Next. Note: User name and password will be provided by...
  • Page 88           CDMA WLL User’s Guide HTT-800A    your operator or ISP. Uncheck the check button and Click Finish. → Double-click [Control Panel] Double-click [Network Connections]. You will see a new icon.

  • Page 89: Data Installation Trouble Shooting

              CDMA WLL User’s Guide HTT-800A    (Dial-up networking icon) Connecting to the Internet Double click Dial-up Networking icon which you made in your PC. Click “Dial” button. When connected, run the internet browser. 8.3 Data Installation Trouble Shooting 8.3.1 Message Box...
  • Page 90           CDMA WLL User’s Guide HTT-800A    instructions. 1) Error 680: No dial tone. Make sure that the phone is in the Service State. Unless an antenna is not displayed, check the line between a phone and PC is well-connected and channel, ESN and MIN are well-put.
  • Page 91           CDMA WLL User’s Guide HTT-800A    6) Error 619 : Disconnected This error may be displayed in case of setting problem. You have to check the DS Baud rate in 3 places. 1. Setting the phone into DS Baud 2.
  • Page 92           CDMA WLL User’s Guide HTT-800A    Click on “Properties” button. Click “Modem” and select the BAUD rate In case of Packet Data: 115,200 In case of Circuit Data: 19,200. Click on the “OK” button.
  • Page 93           CDMA WLL User’s Guide HTT-800A    Click on the “OK” button. Dial- up icon (Standard Modem) setting The following is the procedure to make a Dial-up icon (Standard Modem):...
  • Page 94           CDMA WLL User’s Guide HTT-800A    Click on the “Properties” button. Select your COM Port (Since USB Cable is been used, select “Modem – TELSON Handset (COM4)”). You should select the same com port which you...
  • Page 95           CDMA WLL User’s Guide HTT-800A    Click on the “Configure” button. Verify under Phone Number Column #777 is used for Packet data & XXXX is used for Circuit data (where XXXX depends on Network). Verify Modem Baud rate, should be 115200 In case of Packet Data &...
  • Page 96           CDMA WLL User’s Guide HTT-800A    Click on the “OK” button.

  • Page 97: Summary Table

              CDMA WLL User’s Guide HTT-800A    9. Summary Table 9.1 Advanced Functions Menu Item Process <*>, <*> <*> 1. One Minute Alert Release <*>, <*> <#> 12 Hour mode <*>, <*> <1> <1> (AM) (00:00~11:59) <*>...
  • Page 98           CDMA WLL User’s Guide HTT-800A    Analog Fax <*>, <*> <1> Always mode Analog Fax <*>, <*> <2> Once mode PC Fax <*>, <*> <3> 9. Data Rx Always mode PC Fax <*>, <*> <4>...
  • Page 99           CDMA WLL User’s Guide HTT-800A    9.2 Supplementary Functions Menu Item Process 36*#01 <*> 1. Speed dial 2 ( <*> 36*#01 36*#02 lock code(4 digits) <*> 36*#02 lock code(4 digits) <*> ( lock code(4 Store...
  • Page 100           CDMA WLL User’s Guide HTT-800A    Store 36*#05 address (001~200) phone number <*> Phone Delete 36*#05 address (001~200) Book <*> All Delete 36*#05 <*> Enhanced 36*#06 <*> Voice Privacy Standard 36*#06 <*> 16Hz 36*#07 <*>...
  • Page 101           CDMA WLL User’s Guide HTT-800A    No Restriction 36*#11 lock code(4 digits) Restrict <*> Call mode Restriction 36*#11 lock code(4 digits) <*> Store 36*#12 lock code(4 digits) address (01~10) phone number Restrict <*> Call mode...
  • Page 102           CDMA WLL User’s Guide HTT-800A    10. Troubleshooting Guide Problems What To Do In the event you are unable to dial or receive telephone calls, first be sure that the connection wire is properly connected to the RJ-11 phone port on the terminal and to the RJ-11 port of the telephone.
  • Page 103           CDMA WLL User’s Guide HTT-800A    Check if the battery on/off switch at the bottom of the terminal is on. When the battery LED The backup battery is discharged, is off Check the Battery Switch or freshly charged one.

  • Page 104: Htt-800A

              CDMA WLL User’s Guide HTT-800A    11. Specifications Frequency Tx : 824~849 MHz HTT-800A Range Rx : 869~894 MHz Channel Bandwidth CDMA 1.25 MHz RJ-11 Phone/Analog Fax port ± 300 Hz Frequency Stability Tx Power Max.
  • Page 105 U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the...
