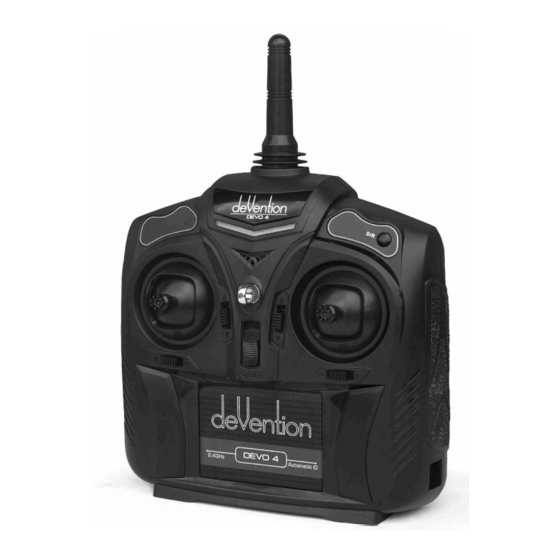

- Page 1 Welcome to the DEVO 4 transmitter walkera --�ff$-- @&W@� User Manual Note: Please read the manual thoroughly before using and keep it in a safe place for future reference.
-
Page 2: Table Of Contents
Content Part one: General Information 1 .0 F or e w or d -- --- --- - - - --- --- --- ----- - -- --- --- - · 1 6.0 Installation requirement for receiver -- --- - - - -- --- - · 6 1. -
Page 3: Foreword
Part one: General Information 1.0 Foreword The DEVO-4 is 4 channel Micro Computer System,it uses 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology, supports automatic ID binding and assignment, is small in size and easy to use. 1.1 Important Statements (1) The transmitter is suitable for experienced radio controlled helicopter modellers beyond 14 years old. -
Page 4: Attention Before Flight
(3) Proper operation Please use original Walkera spare parts to upgrade, modify or maintain your equipment in order to assure its safety. Please operate your equipment within the range of the permitted functions. II is forbidden to operate this equipment outside of the safety laws and regulations of the country it is being used in. -
Page 5: Devo-4 Transmitter F Eatures
2. 0 DEV0-4 transmitter Features (1) The DEV O -4 uses 2 .4 GHz Direct Sequence Spread Spectrum (DSSS) technology. Supports automatic ID binding and assignment. (3) 4 Channel M icro Computer Control system. (4) Type hidden reverse switch setting. (5) D/R Switch O ne Butten Change. -
Page 6: Definitio N Of Devo-4
4.0 Definition of DEV0-4 4.1 Front Panel view Elevator/ Rudder------- --------Throttl e Ail e ron sti c k Sti c k... -
Page 7: Wiring Diagram
4.2 Wiring Diagram: Elevator servo Antenna DEVO-RX601 Receiver Aileron servo Antenna Throttle servo 4.8V Battery Rudder servo Power Switch Charge jack... -
Page 8: Neck Strap Usage
5.0 Neck Strap Usage There is a concealed eyelet in the front panel of the DEVO-4. It will pop out when you press the eyelet. The neck strap hook can then be connected to the eyelet. This eyelet is located near the center of gravity which helps to obtain the optimal balance for the transmitter. Neck Strap Eyelet 6.0 Installation requirement for receiver It is important to correctly mount your radio system in your model. -
Page 9: Lnstallatlon Requirement For
7.0 Installation requirement for DEV0-4 battery pack Open the batt e ry cover of DEV0-4 transmitter and take out the battery box. Insert 4 new AA batteries either Alkaline or full charged NIMH battery into the battery box. Please double check the polarities are correct and do not mix old and new batteries. WARNING: (1) Inserting the batteries with the incorrect polarity can cause damage to the transmitter and/or batteries. -
Page 10: Party Two: Function Setup
Party two: Function Setup 1.0 Reverse Switch We provide a reversing switch for each channel, see below: Open the flexible cover on the back of the transmitter, there are 4 switches, switch to ON according to mark on the cover. Replace the flexible cover once you have finished. '�... - Page 11 <l!Jte11 , - 7 �WALKERA PRODUCT :a:- The specifications of the RIC Product may be altered without notice.
