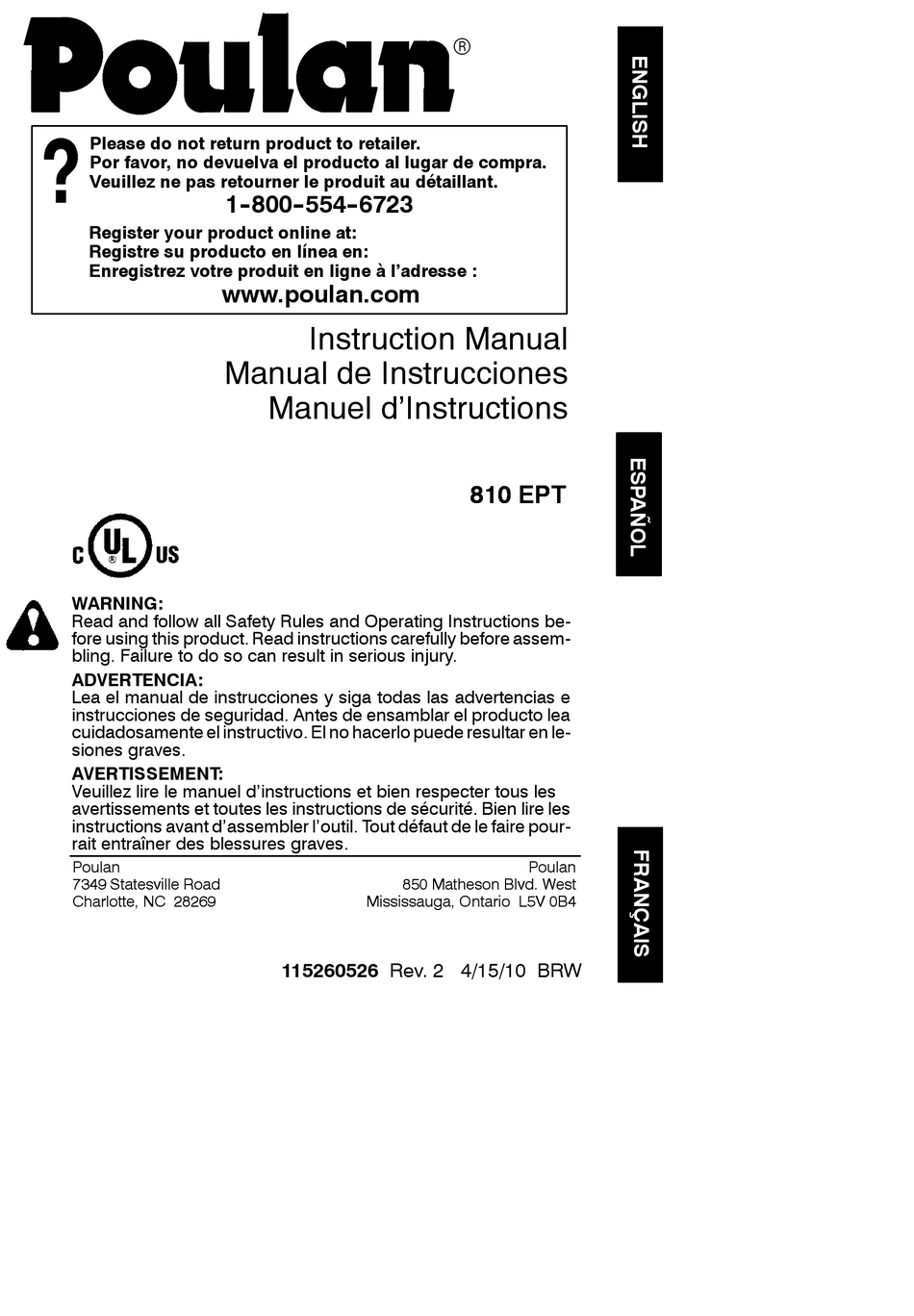

Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
1- -800- -554- -6723
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.poulan.com
Manual de Instrucciones
WARNING:
Read and follow all Safety Rules and Operating Instructions be-
fore using this product. Read instructions carefully before assem-
bling. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. Antes de ensamblar el producto lea
cuidadosamente el instructivo. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Veuillez lire le manuel d'instructions et bien respecter tous les
avertissements et toutes les instructions de sécurité. Bien lire les
instructions avant d'assembler l'outil. Tout défaut de le faire pour-
rait entraîner des blessures graves.
Poulan
7349 Statesville Road
Charlotte, NC 28269
Instruction Manual
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115260526 Rev. 2 4/15/10 BRW
R
810 EPT
810 EPT
810 EPT
Poulan
Advertisement
Table of Contents
Related Manuals for Poulan Pro 115260526
Summary of Contents for Poulan Pro 115260526
- Page 1 Bien lire les instructions avant d’assembler l’outil. Tout défaut de le faire pour- rait entraîner des blessures graves. Poulan 7349 Statesville Road Charlotte, NC 28269 115260526 Rev. 2 4/15/10 BRW 810 EPT 810 EPT 810 EPT Poulan 850 Matheson Blvd. West...
-
Page 2: Identification Of Symbols
Nonconforming re- placement components or the removal of safety devices may cause damage to the unit and pos- sible injury to the operator or bystanders. -
Page 3: Electrical Safety
Safety Hat Hearing Protection Protection Snug Fitting Heavy Duty Clothing Gloves Safety Safety Chaps Shoes S Keep children, bystanders, and animals a minimum of 50 feet (15 meters) away from the work area. Do not allow other people or animals to be near when starting or operat- ing the unit. -
Page 4: Kickback Warning
See ATTACH THE EXTENSION CORD TO YOUR TRIMMER in the OPERA- TION section. S Do not attempt to repair unit. Inspect the insu- lation and connectors on the powerhead and extension cord before each use. -
Page 5: Maintain Control
Never use flailing de- vices with any attachment. This attachment (when used with supplied line trimmer attach- ment) is designed for line trimmer use only. Use of any other accessories with line trim- mer attachment will increase the risk of injury. -
Page 6: Transporting And Storage
S When using the trimmer attachment, keep cutting line at proper length. Use only 0.080″ (2 mm) diameter Poulan brand line. Never use wire, rope, string, etc. S Install required shield properly before using the trimmer attachment. -
Page 7: Additional Safety Rules
anti- -vibration system does not guarantee the avoidance of these problems. Users who op- erate power tools on a continual and regular basis must monitor closely their physical con- dition and the condition of this tool. RECOMMENDED ATTACHMENTS This model is equipped with a coupler which enables optional attachments to be installed. - Page 8 DANGER: RISK OF CUT. KEEP HANDS AND FEET AWAY FROM BLADE AND CUTTING AREA. Do not attempt to clear away cut material when the blade is in motion. Make sure switch is in the off position and the power source is disconnected when removing jammed material from the cutting blade.
- Page 9 WARNING: For additional information, refer to the safety section of the instruction manual supplied with your pruner attachment. HEDGE TRIMMER SAFETY DANGER: RISK OF CUT; KEEP HANDS AWAY FROM BLADE - - Blade moves momentarily after the trigger is re- leased.
- Page 10 1-800-554-6723. TOOLS REQUIRED S Hex wrench S Chain adjustment tool (bar tool) INSTALLING PRUNER OR LINE TRIMMER ATTACHMENT CAUTION: When removing or installing at- tachments, place the unit on a flat surface for stability. 1. Loosen the coupler by turning the knob counterclockwise.
-
Page 11: Operation
The line limiter blade (on underside of shield) is sharp and can cut you. For proper orientation of shield, see KNOW YOUR TRIMMER ATTACHMENT illustration in OPERATION section. 1. Remove wing nut from shield. 2. Insert bracket into slot as shown. - Page 12 Poulan oil resists high temperature thinning. If Poulan bar and chain oil is not available, use a good grade SAE 30 oil. S Never use waste oil for bar and chain lubri- cation.
-
Page 13: Important Points
PRUNER ATTACHMENT OPERATING POSITION ALWAYS WEAR: Head Protection Eye Protection Long Pants Heavy Shoes DANGER: Do not extend arms above shoulders while pruning. Do not stand be- neath branch being cut. WARNING: Always wear head, eye, hearing, foot and body protection to reduce the risk of injury when operating this unit. - Page 14 S Operate the engine/motor at full throttle. S Hold the trimmer head parallel to and above the grassy area. S Tap the bottom of the trimmer head lightly on the ground one time. Approximately 2 inches (5 cm) of line will be advanced with each tap.
-
Page 15: Maintenance
Mowing SWEEPING - - The fanning action of the rotat- ing line can be used for a quick and easy clean up. Keep the line parallel to and above MAINTENANCE WARNING: Disconnect unit from power source before performing maintenance. CHECK FOR LOOSE FASTENERS AND PARTS S Bar clamp nut S Chain... -
Page 16: Service And Adjustments
If your pruner cuts to one side, has to be forced through the cut, or been run with an im- proper amount of bar lubrication it may be necessary to service your bar. A worn bar will damage your chain and make cutting difficult. After each use, with unit disconnected from power source, clean all sawdust from the guide bar and sprocket hole. - Page 17 75˚ 30˚ Hook Angle 0.025 inch (0.65 mm) Rounded Corner Right Squared Off Too Much Hook Angle Corner Wrong WARNING: Maintain the proper hook angle according to the manufacturer’s specifica- tions for the chain you are using. Improper hook angle will increase the chance of kickback which can result in serious injury.
-
Page 18: Chain Adjustment
2. Clean entire surface of hub and spool. 3. Replace with a pre-wound spool, or cut two lengths of 12-1/2 feet of 0.080″ (2 mm) di- ameter Poulan brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile. - Page 19 1. Cutters damaged on an angle. one side. 2. Chain dull on one side. 3. Guide bar bent or worn. Trimmer head 1. Crowding trimmer line stops under a against material being load or does cut. not turn when 2. Electrical failure.
-
Page 20: Limited Warranty
Poulan brand electric prod- uct within two (2) years from the original date of purchase. If your Poulan brand electric or cordless prod- uct should fail within the limited warranty period, you may return it in complete condition, prepaid,...
